Operating and Navigating 2 Basic Operation
13
Operating and Navigating

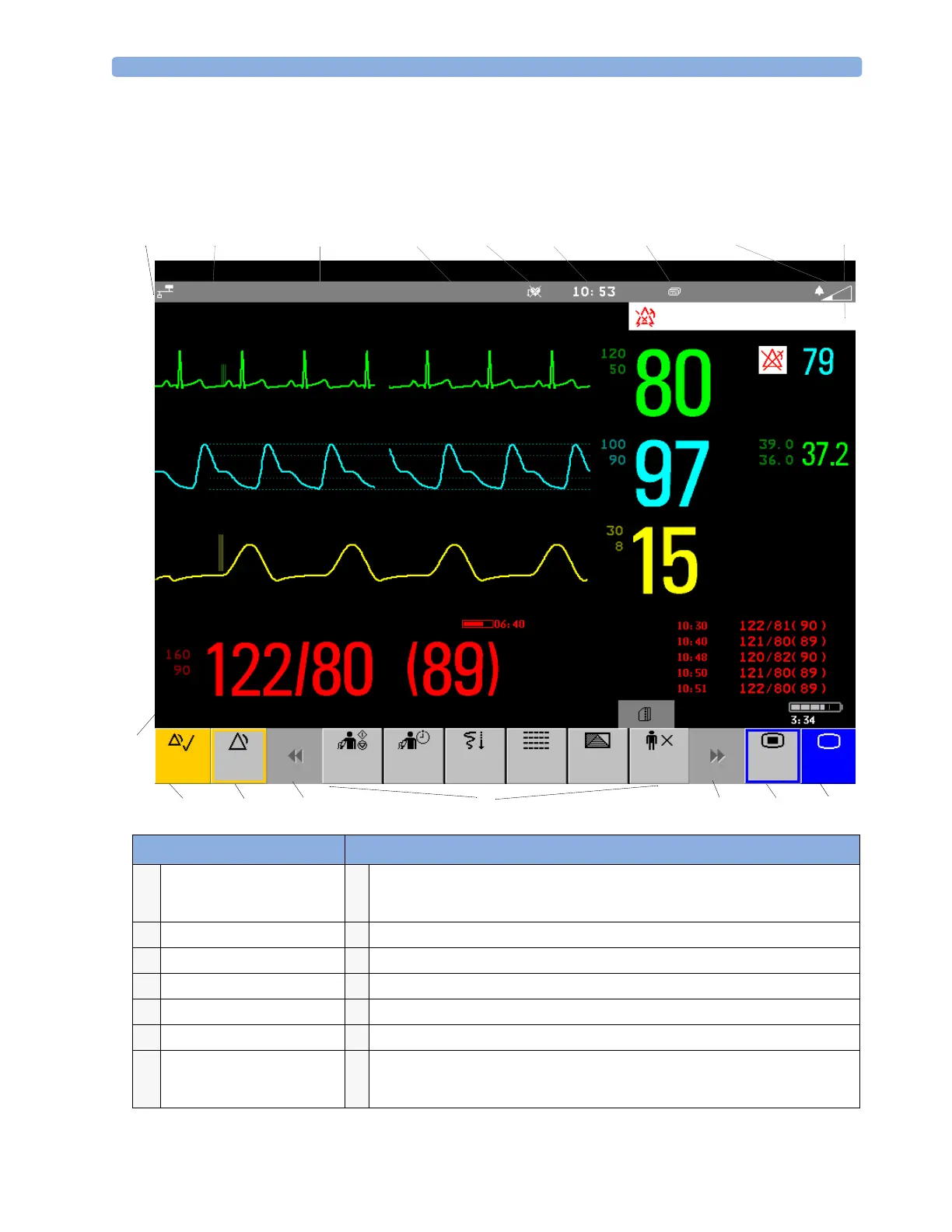

Everything you need to operate the monitor is contained on its screen. Almost every element on the
screen is interactive. Screen elements include measurement numerics, waveforms, screen keys,
information fields, alarms fields and menus:
NBP
Sys.
Silence
NBP
mmHg
Pulse
1
2
3
4
5
Pause
Alarms
Start/
Stop
End Case
Repeat
Time
Main
Setup
Default
Profile
Main
Screen
Resp
Pleth
SpO
2
RR
II
Doe, John Adult
3 Waves A
ALARMS PAUSED 2:59
HR
Bed 3
Local Recorder out of paper
Delayed
Record
Vitals
Trend
Temp
Auto 10 min
hrs
1mv
1Ohm
678
9
10
17
16
15 14
13 12
11
Monitor information line Other screen elements
1
network connection indicator
(documented in Information
Center Instructions for Use)
10
status line - shows information and messages prompting you for action
2
bed label
11
close all open menus and windows and return to main screen
3
patient identification
12
enter Main Setup menu
4
patient category
13
scroll right to display more SmartKeys
5
paced status
14
SmartKeys - these change according to your monitor’s configuration
6
date and time
15
scroll left to display more SmartKeys
7
current screen name/enter
change screen menu
16
Pause Alarms - pauses alarm indicators. Pause duration depends on monitor
configuration. If pause duration is infinite, this key is labeled Alarms Off. Select again
to immediately re-enable alarm indicators.
