Installation Safety Information
WARNING If multiple instruments are connected to a patient, the sum of the leakage currents may exceed the
limits given in IEC/EN60601-1, IEC60601-1-1, UL60601-1. Consult your service personnel.
Connectors
The actual placement of boards and configuration of connections for your monitor depends on how
your hardware has been configured. See the symbols table on page 296 to see which symbols are used
to mark the connections.
WARNING • Connect only medical devices to the ECG output connector socket.
• Connecting the ECG sync out to external equipment should only be done by a qualified user. Do
not touch the patient when you have contact to the ECG output connector socket.
Always use separate
collection for waste
electrical and
electronic equipment (WEEE)
built-in wireless
network

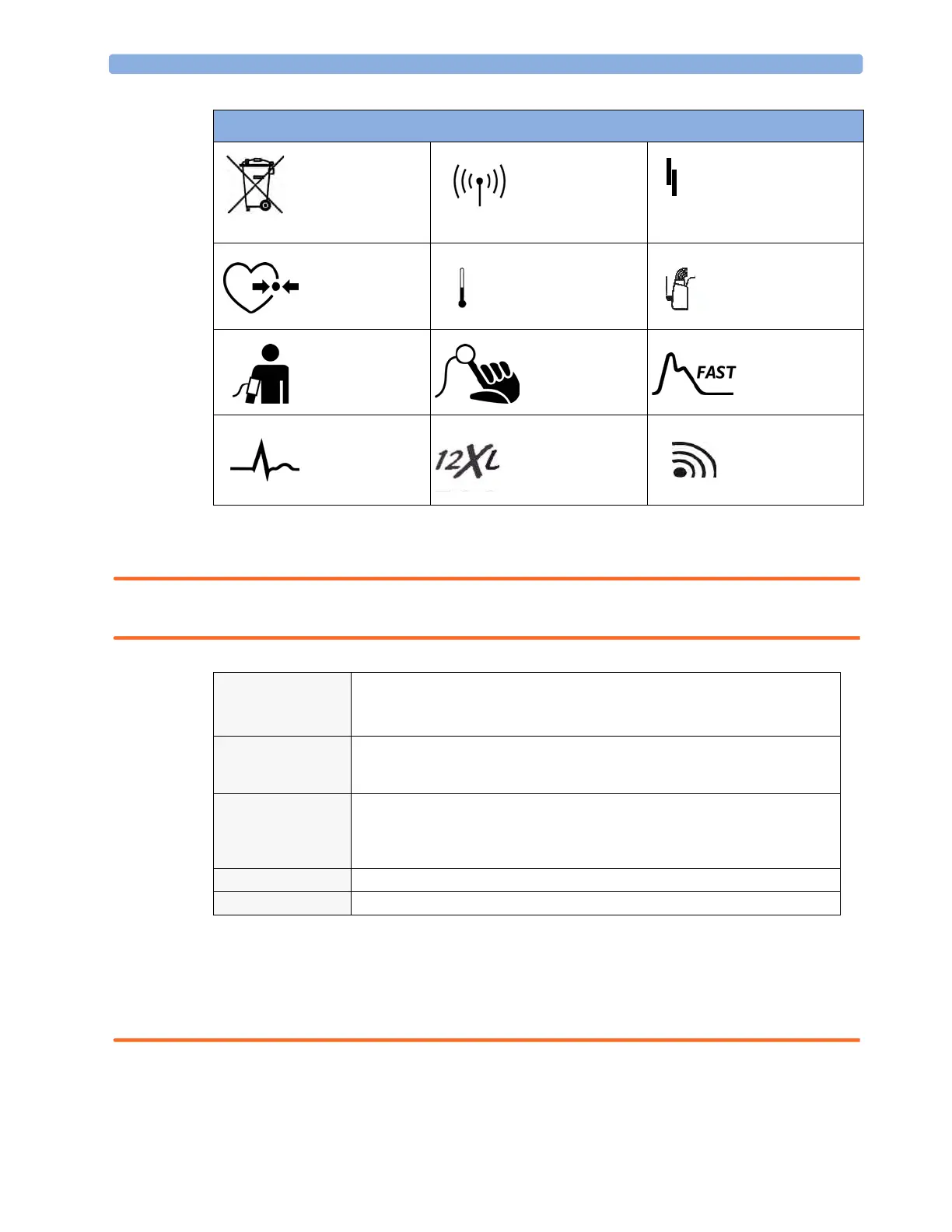

Error LED
Pressure connector Temperature connector Telemetry device
connector
NBP connector SpO
2
connector Uses FAST SpO
2
algorithm
ECG connector
Monitor supports 12-
lead ECG
built-in short
range radio
interface
Symbols
Grounding The monitor must be grounded during operation. If a three-wire receptacle is not
available, consult the hospital electrician. Never use a three-wire to two-wire adapter.
Equipotential
Grounding
If the monitor is used in internal examinations on the heart or brain, ensure that the room
incorporates an equipotential grounding system to which the monitor has separate
connections.
Combining equipment Combinations of medical equipment with non-medical equipment must comply with
IEC 60601-1-1. Never use a multiple portable socket-outlet or extension cord when
combining equipment unless the socket outlet is supplied specifically for use with that
equipment.
Fusing The monitor uses double pole/neutral fusing.
Network Cables All network cables must be unshielded.
