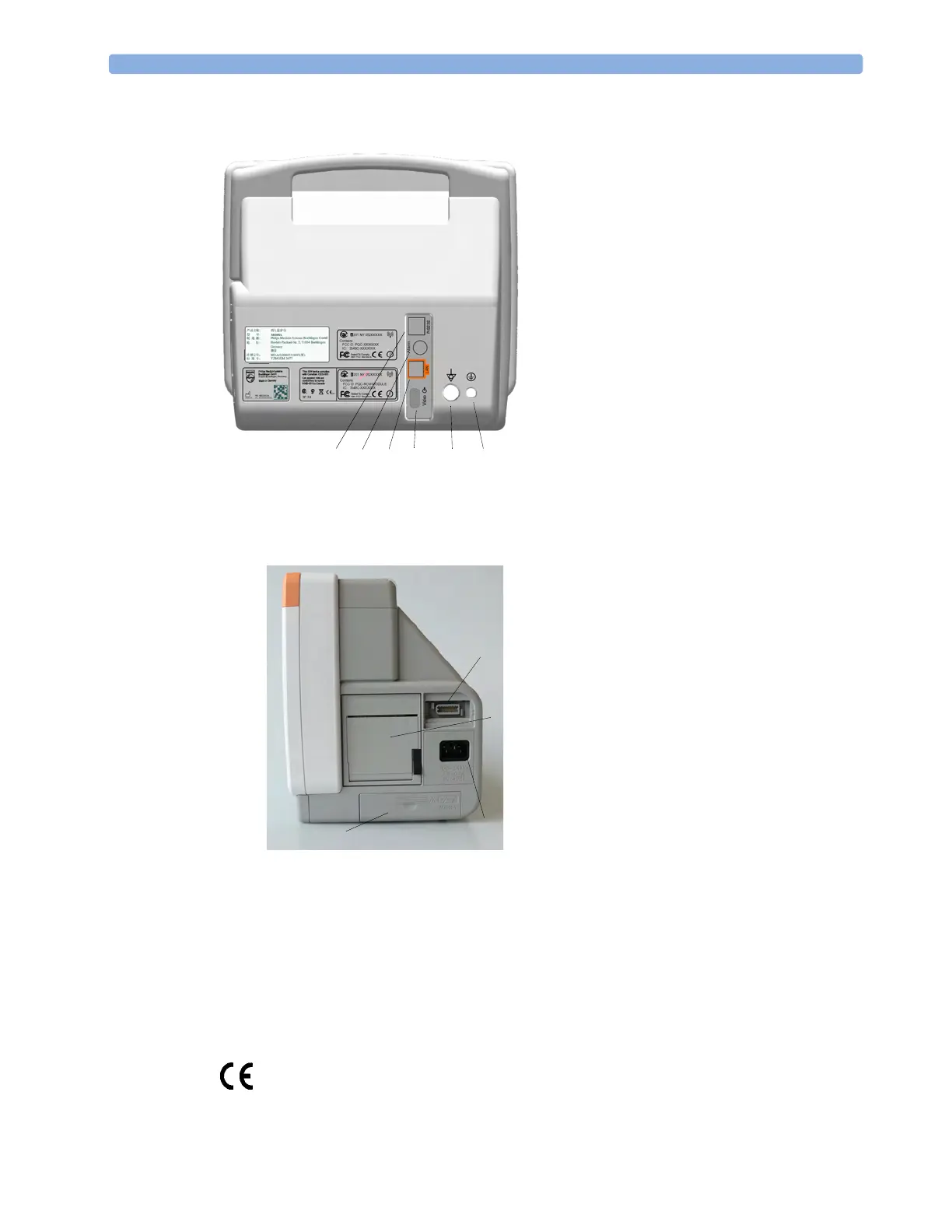

31 Installation and Specifications Altitude Setting

300

Right Side of Monitor

Altitude Setting

Altitude affects CO

measurements. The monitor must be configured at installation to the correct

altitude.

Monitor Safety Specifications

The monitor complies with the Medical Device Directive 93/42/EEC.

1 Serial/MIB (RS232) connector

2 Nurse call connector

3 Wired network connector

4 Analog video out connector

5 Equipotential grounding

6 Protective earth

1 Battery compartment

2AC power inlet

3Recorder (optional)

4 MSL Connector (for connection to a

host monitor)

0366
