User’s Manual of GSD-1002M

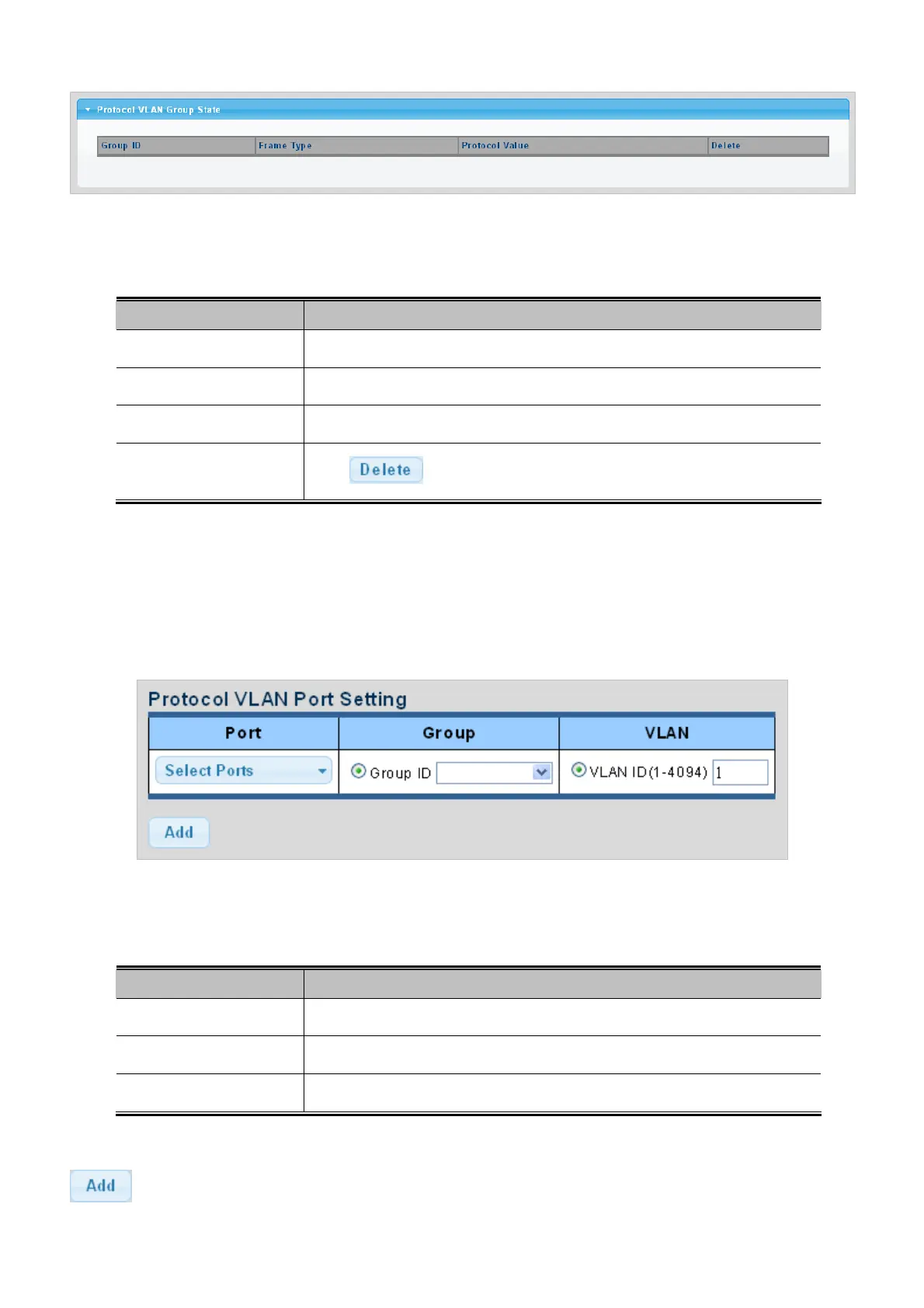

Figure 4-5-10 Protocol VLAN Group State page screenshot
The page includes the following fields:
Object Description
Displa
y the current group ID
 Group ID
Displa
y the current frame type
 Frame Type
Displa
y the current protocol value
 Protocol Value
 Delete
Click to delete the group ID entry.
4.5.9 Protocol VLAN Port Setting
This Page allows you to map a already configured Group Name to a VLAN/port for the switch. The Protocol VLAN Port
Setting/State screens in Figure 4-5-11 & Figure 4-5-12 appear.
Figure 4-5-11 Protocol VLAN Port Setting page screenshot
The page includes the following fields:
Object Description
Select port for this drop dow
n list to assign protocol VLAN port.
 Port
Select group I
D for this drop down list to protocol VLAN group.
 Group
VLAN ID assigned to the S
pecial Protocol VLAN Group.
 VLAN
Buttons
: Click to add protocol VLAN port entry.
110
