User’s Manual of GSD-1002M
Object Description
The destinatio
n IPv6 Address.
ï‚· IP Address
Number of ech
o requests to send.
ï‚· Count
Send in
terval for each ICMP packet.
ï‚· Interval (in sec)
The p
ayload size of the ICMP packet. Values range from 8bytes to 5120bytes.
ï‚· Size (in bytes)
Displa
y the current ping result.
ï‚· Ping Results
Buttons
: Click to transmit ICMPv6 packets.
4.13.5 Trace Router
Traceroute function is for testing the gateways through which the data packets travel from the source device to the destination
device, so to check the network accessibility and locate the network failure.
Execution procedure of the Traceroute function consists of: first a data packet with TTL at 1 is sent to the destination address, if
the first hop returns an ICMP error message to inform this packet can not be sent (due to TTL timeout), a data packet with TTL at
2 will be sent. Also the send hop may be a TTL timeout return, but the procedure will carries on till the data packet is sent to its
destination. These procedures is for recording every source address which returned ICMP TTL timeout message, so to describe
a path the IP data packets traveled to reach the destination. The Trace Route Setting screen in Figure 4-13-5 appears.

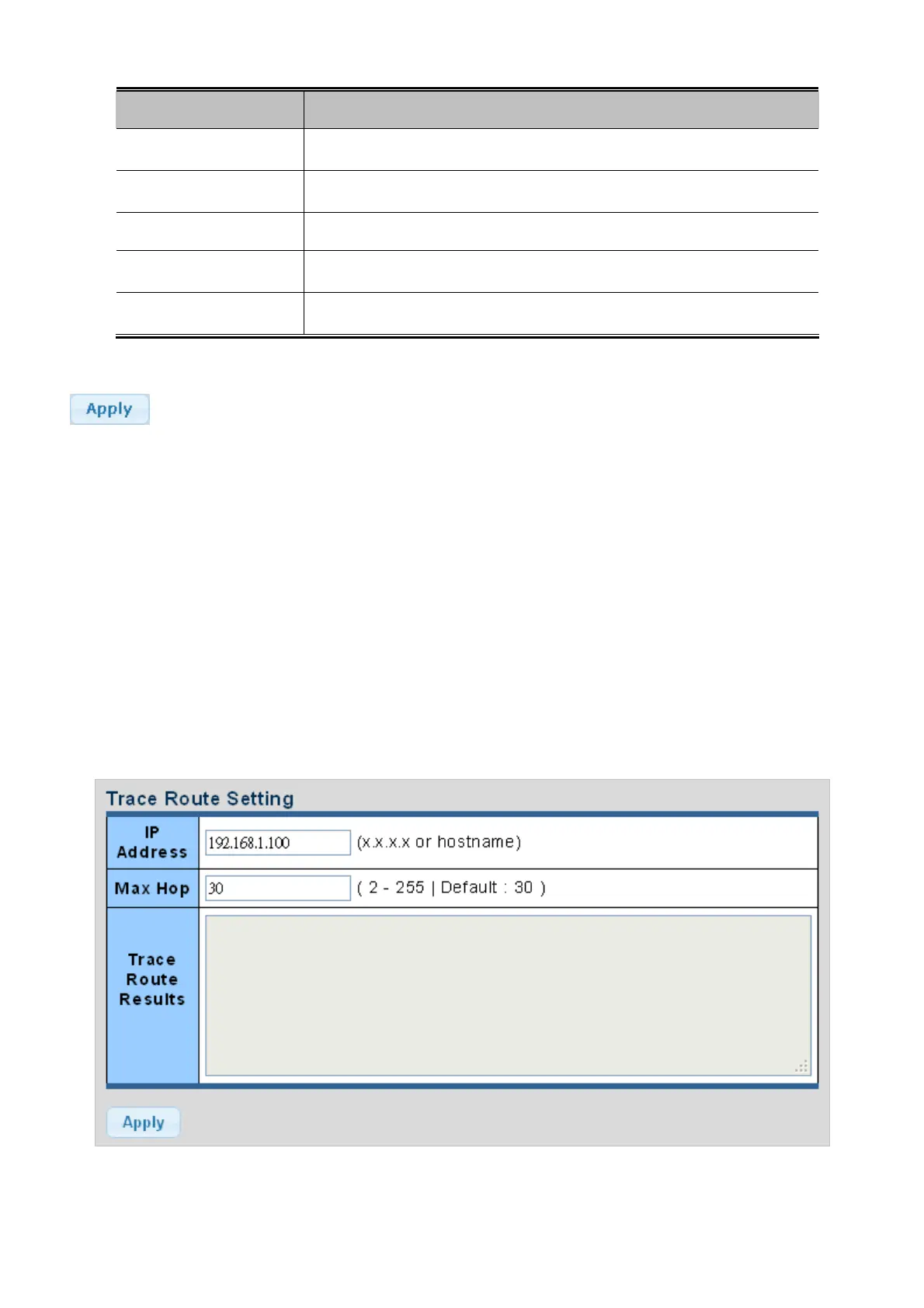

Figure 4-13-5 Trace Route Setting page screenshot
293
