4.9.7.10 Option82 Circuit-ID Setting
Set creation method for option82, users can define the parameters of circute-id suboption by themselves. Option82 Circuit-ID
Setting screens in Figure 4-9-48 & Figure 4-9-49 appear.

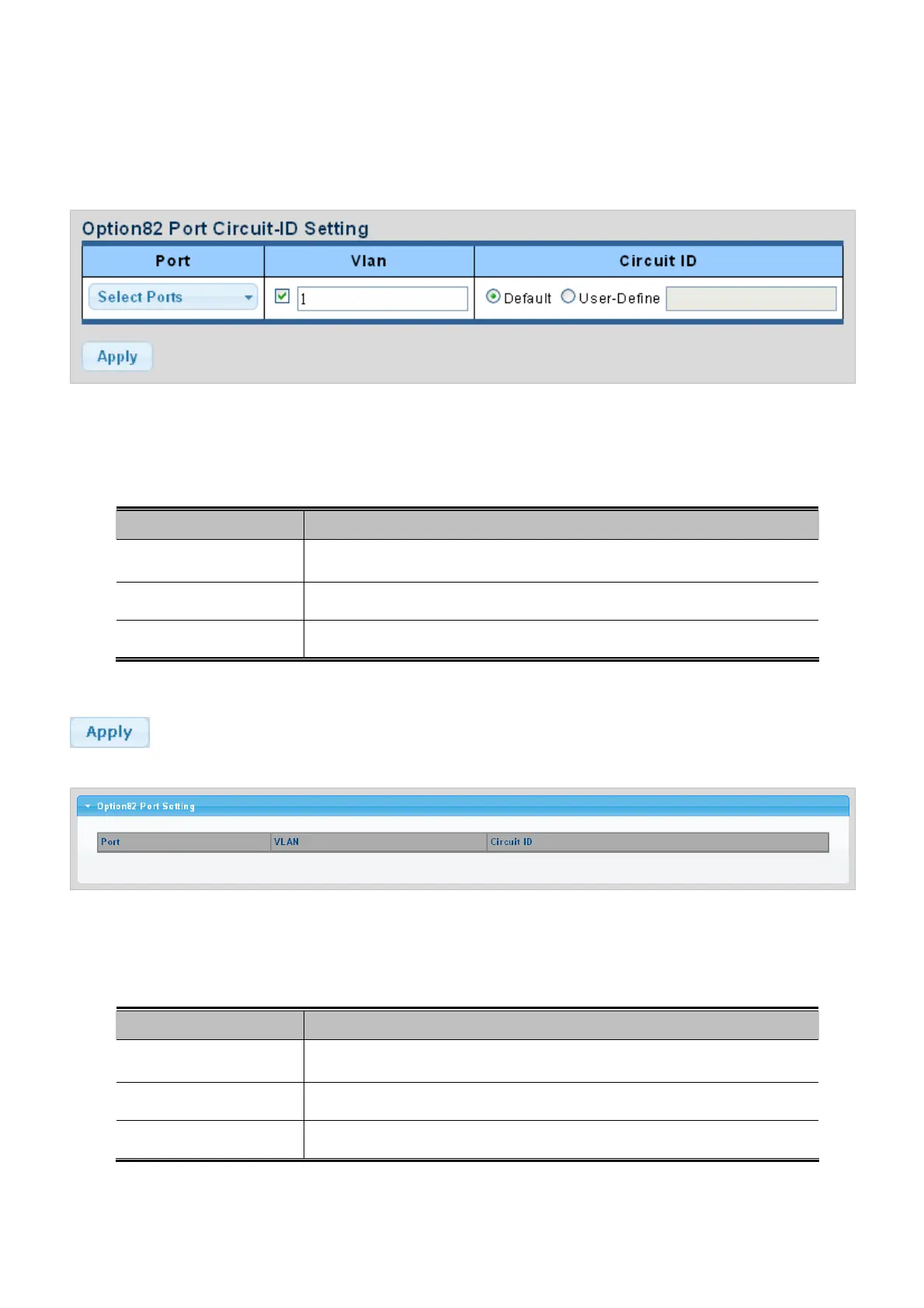

Figure 4-9-48 Option82 Port Circuit-ID Setting page screenshot
The page includes the following fields:
Object Description
Select port for this drop dow
n list.
 Port
Indicates the ID of this pa
rticular VLAN.
 VLAN
Set the option1
(Circuit ID) content of option 82 added by DHCP request packets.
 Circuit ID
Buttons
: Click to apply changes.
Figure 4-9-49 Option82 Port Circuit-ID Setting page screenshot
The page includes the following fields:
Object Description
Displa
y the current port
 Port
Displa
y the current VLAN
 VLAN
Displa
y the current circuit ID
 Circuit ID
