User’s Manual of GSD-1002M
4.6.6 MST Instance Configuration
This page allows the user to configure MST Instance Configuration. The MST Instance Setting, Information and Status screens
in Figure 4-6-12, Figure 4-6-13 & Figure 4-6-14 appear.

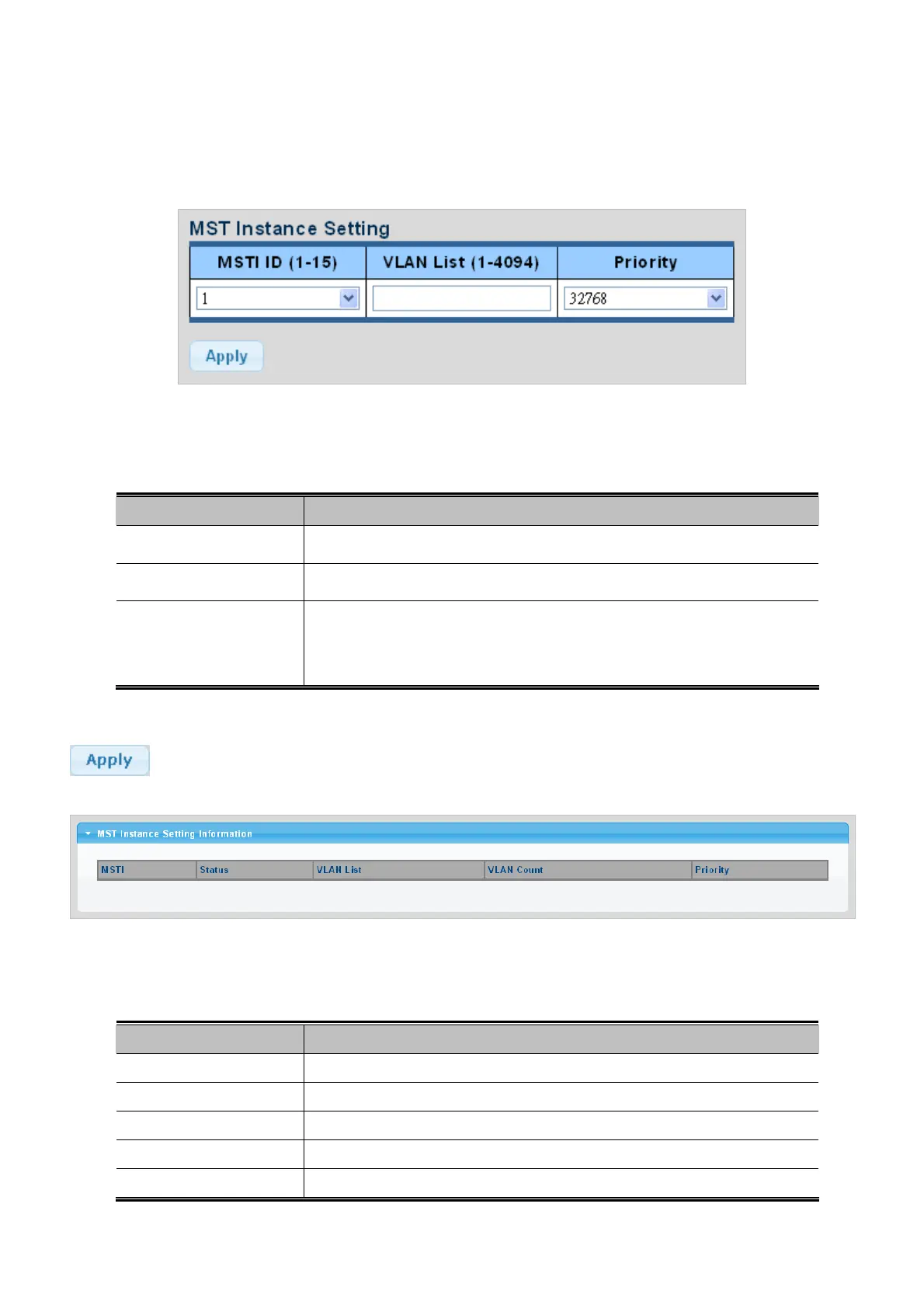

Figure 4-6-12 MST Instance Setting page screenshot
The page includes the following fields:
Object Description
Allow
assign MSTI ID. The range for the MSTI ID is 1-15.
 MSTI ID
Allow
assign VLAN list for special MSTI ID. The range for the VLAN list is 1-4094.
 VLAN List (1-4096)
Controls the bri
dge priority. Lower numerical values have better priority. The
bridge priority plus the MSTI instance number, concatenated with the 6-byte MAC
address of the switch forms a Bridge Identifier.
 Priority
Buttons
: Click to apply changes.
Figure 4-6-13 MSTI Instance Setting Information page screenshot
The page includes the following fields:
Object Description
Displa
y the current MSTI entry.
 MSTI
Displa
y the current MSTI status
 Status
Displa
y the current VLAN list.
 VLAN List
Displa
y the current VLAN count.
 VLAN Count
 Priority
Display the current MSTI priority
138
