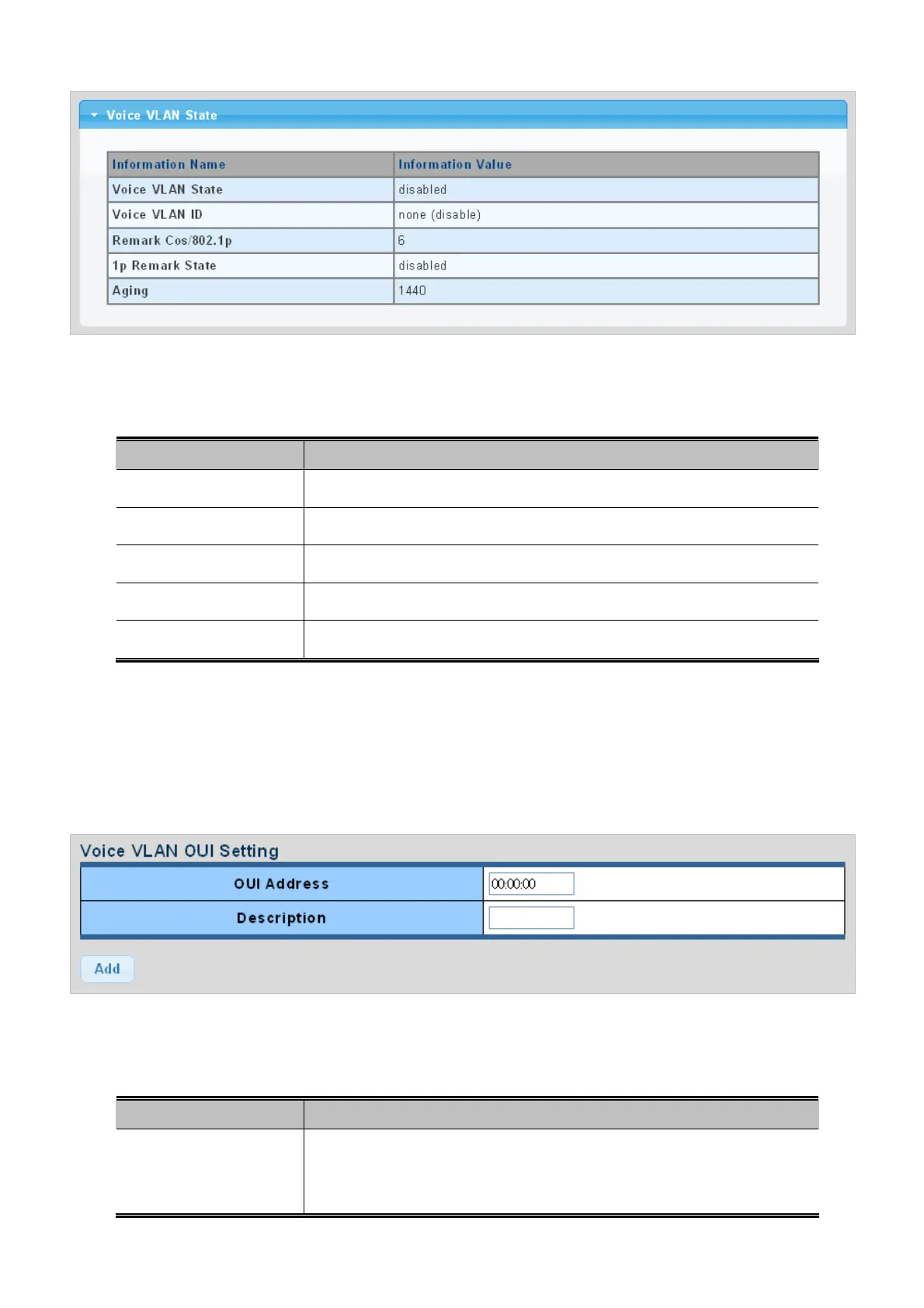

Figure 4-8-23 Properites page screenshot
The page includes the following fields:
Object Description
Displa
y the current voice VLAN state.
 Voice VLAN State
Displa
y the current voice VLAN ID.
 Voice VLAN ID
Displa
y the current remark CoS/802.1p.
 Remark CoS/802.1p
Displa
y the current 1p remark.
 1p remark
Displa
y the current aging time.
 Aging
4.8.5.3 Telephony OUI MAC Setting
Configure VOICE VLAN OUI table on this Page. The Telephony OUI MAC Setting screens in Figure 4-8-24 & Figure 4-8-25
appear.
Figure 4-8-24 Voice VLAN OUI Settings page screenshot
The page includes the following fields:
Object Description
 OUI Address
A telephony OUI address is a globally unique identifier assigned to a vendor by
IEEE. It must be 6 characters long and the input format is "xx:xx:xx" (x is a
hexadecimal digit).
189
