User’s Manual of GSD-1002M
The page includes the following fields:
Object Description
Displa
y the current STP state.
 STP
Displa
y the current BPDU forward mode.
 BPDU Forward
Displa
y the current cost method.
 Cost Method
Displa
y the current force version.
 Force Version
 Configuration Name
Display the current configuration name.
 Configuration Revision
Display the current configuration revision.
4.6.3 STP Port Setting

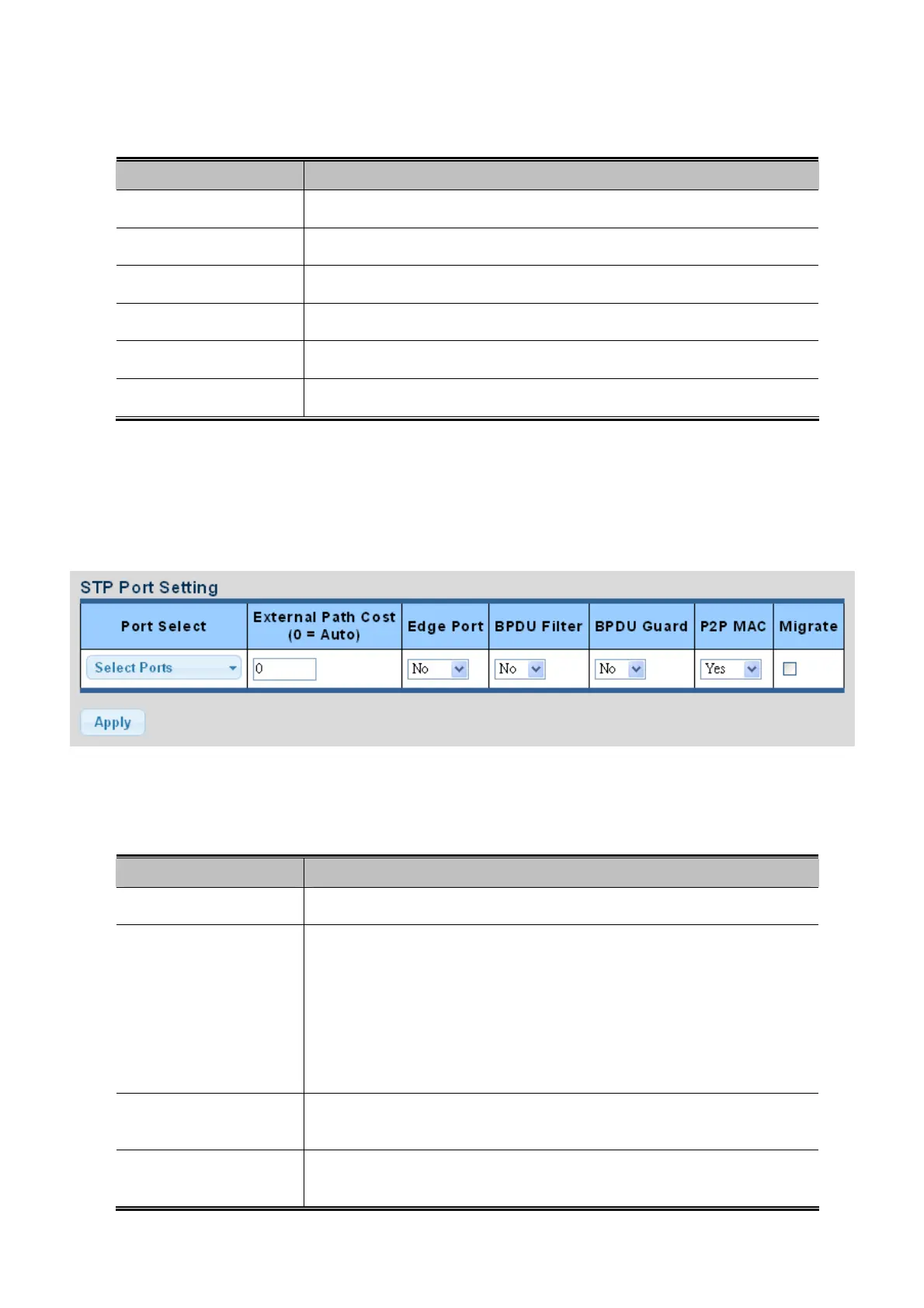

This page allows you to configure per port STP settings. The STP Port Setting screens in Figure 4-6-6 & Figure 4-6-7 appear.
Figure 4-6-6 STP Port Configuration page screenshot
The page includes the following fields:
Object Description
Select port nu
mber for this drop down list.
 Port Select
Controls the p
ath cost incurred by the port. The Auto setting will set the path cost
as appropriate by the physical link speed, using the 802.1D recommended
values. Using the Specific setting, a user-defined value can be entered. The path
cost is used when establishing the active topology of the network. Lower path
cost ports are chosen as forwarding ports in favor of higher path cost ports. Valid
values are in the range 1 to 200000000.
 External Cost (0 =
Auto)
Controls
whether the operEdge flag should start as beeing set or cleared. (The
initial operEdge state when a port is initialized).
 Edge Port
 BPDU Filter
Control whether a port explicitly configured as Edge will transmit and receive
BPDUs.
131
