4.6.5 CIST Port Setting
This page allows you to configure per port CIST priority and cost. The CIST Port Setting and Status screens in Figure 4-6-10 &
Figure 4-6-11 appear.

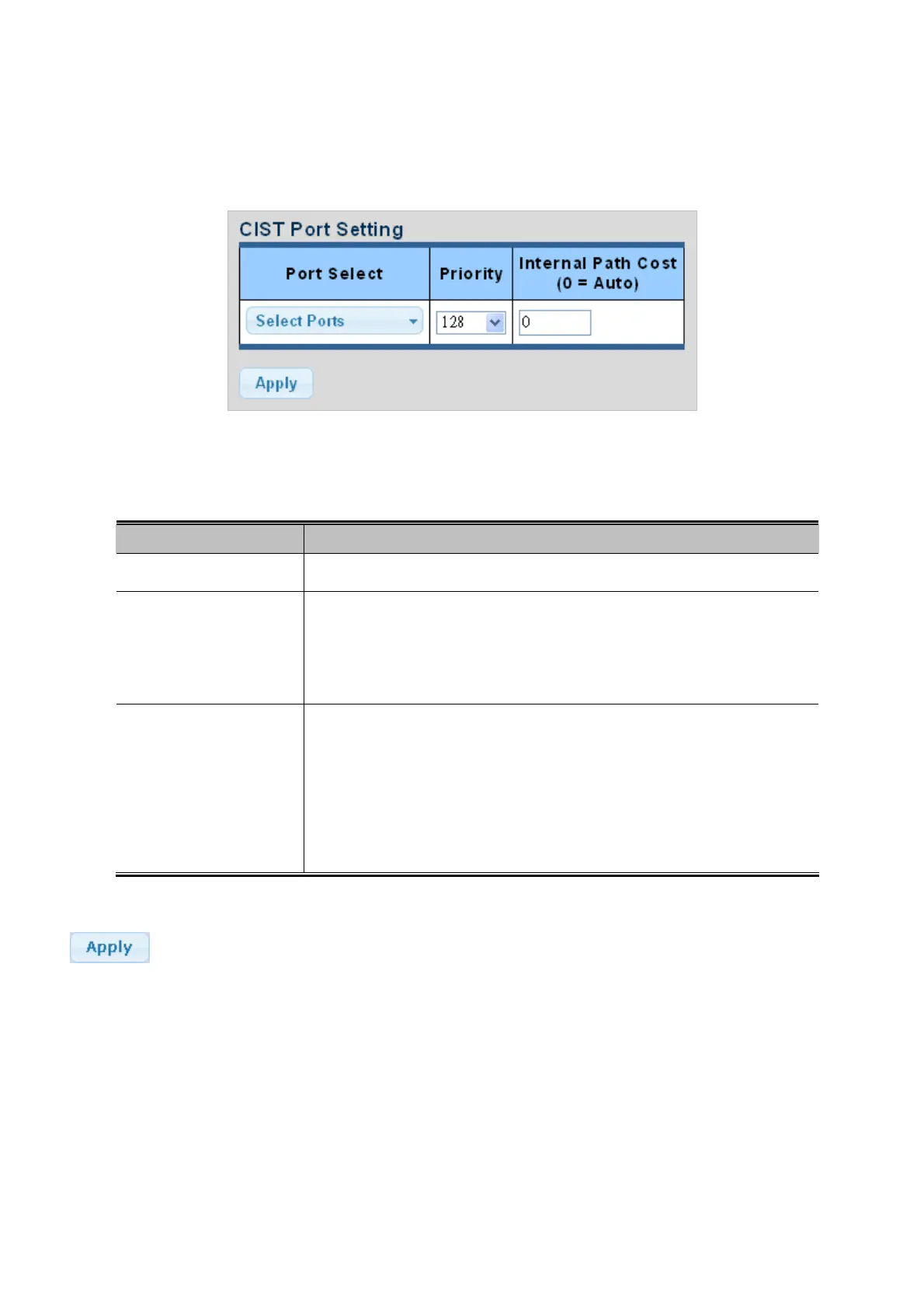

Figure 4-6-10 CIST Port Setting page screenshot
The page includes the following fields:
Object Description
Select port nu
mber for this drop down list.
 Port Select
 Priority
Controls the port priority. This can be used to control priority of ports having
identical port cost. (See above).
Default: 128
Range: 0-240, in steps of 16
Controls the p
ath cost incurred by the port. The Auto setting will set the path cost
as appropriate by the physical link speed, using the 802.1D recommended
values. Using the Specific setting, a user-defined value can be entered. The
path cost is used when establishing the active topology of the network. Lower
path cost ports are chosen as forwarding ports in favor of higher path cost ports.
Valid values are in the range 1 to 200000000.
 Internal Path Cost
(0 = Auto)
Buttons
: Click to apply changes.
