User’s Manual of GSD-1002M
4.5.14 VLAN setting example:
- Separate VLANs
- 802.1Q VLAN Trunk
4.5.14.1 Two separate 802.1Q VLANs
The diagram shows how the Managed Switch handle Tagged and Untagged traffic flow for two VLANs. VLAN Group 2 and
VLAN Group 3 are separated VLANs. Each VLAN isolate network traffic so only members of the VLAN receive traffic from the
same VLAN members. The screen in Figure 4-5-20 appears and Table 4-5-2 describes the port configuration of the Managed
Switches.

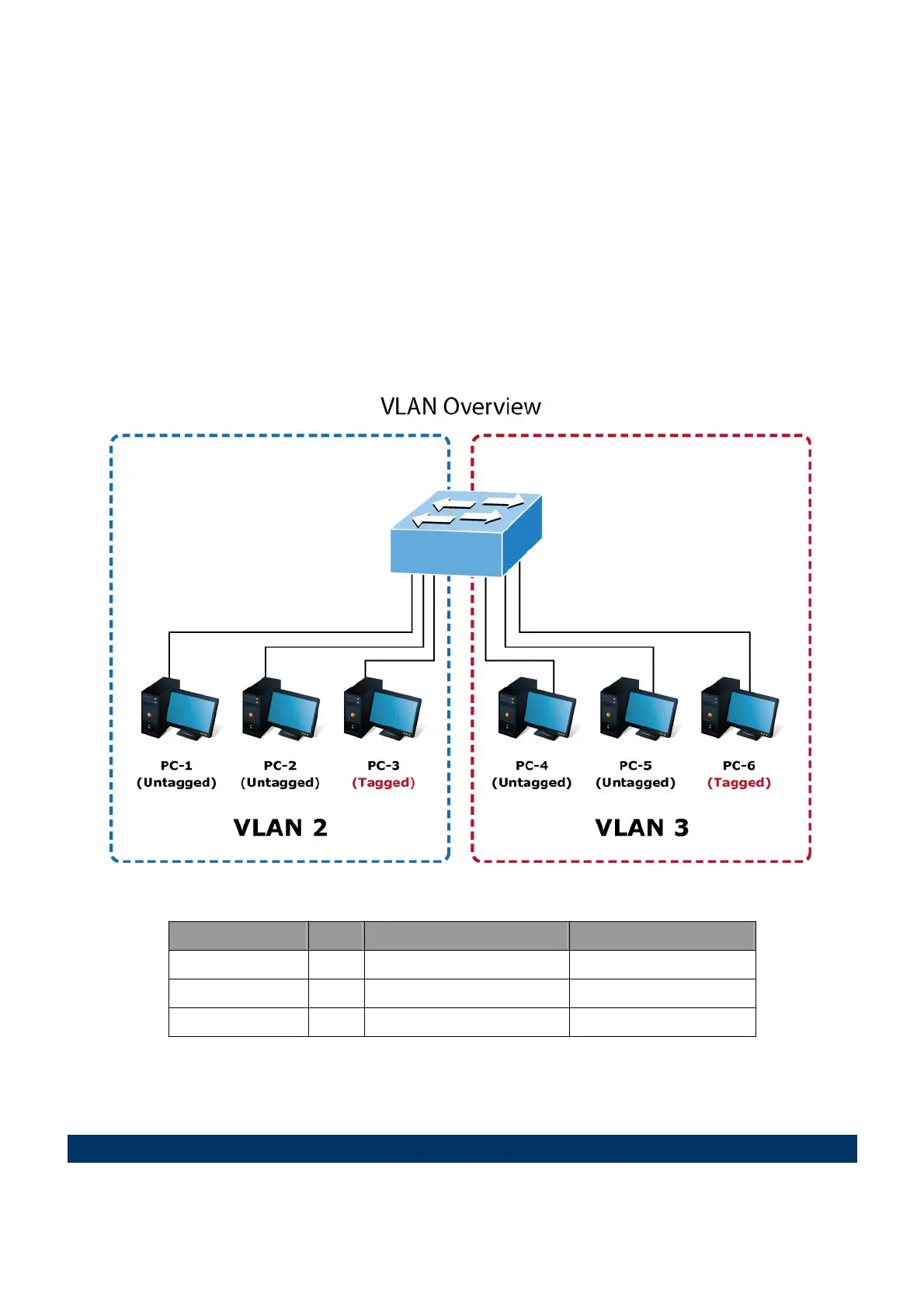

Figure 4-5-20 two separate VLAN diagrams
VLAN Group VID Untagged Members Tagged Members
VLAN Group 1 1 Port-7~Port-8 N/A
VLAN Group 2 2 Port-1,Port-2 Port-3
VLAN Group 3 3 Port-4,Port-5 Port-6
Table 4-5-2 VLAN and Port Configuration
The scenario described as follows:
 Untagged packet entering VLAN 2
117
