User’s Manual of GSD-1002M
The page includes the following fields:
Object Description
Select port for this drop dow
n list.
 Port Select
Select VLAN for this drop down list.
 VL
AN Select
Buttons
: Click to apply changes.

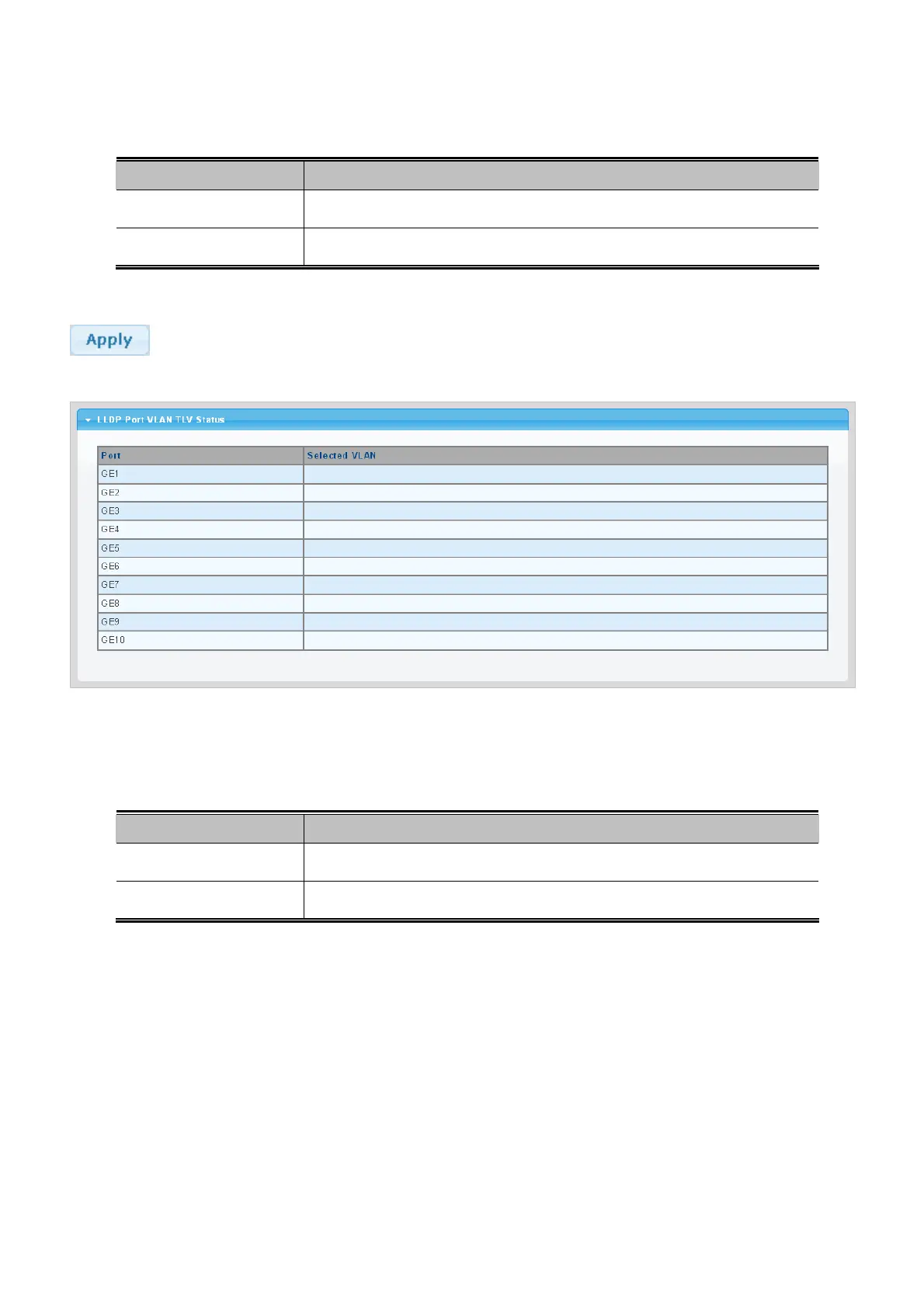

Figure 4-12-6 LLDP Port VLAN TLV Status page screenshot
The page includes the following fields:
Object Description
The s
witch port number of the logical port.
 Port
Displa
y the current selected VLAN
 Selected VLAN
4.12.4 LLDP Local Device
Use the LLDP Local Device Information screen to display information about the switch, such as its MAC address, chassis ID,
management IP address, and port information. The Local Device Summary and Port Status screens in Figure 4-12-7 &
Figure 4-12-8 appear.
277
