User’s Manual of GSD-1002M
Frame Size" is included in LLDP information transmitted.
 Management Address: When checked the "Management Address" is
included in LLDP information transmitted.
 802.1 PVID: When checked the "802.1 PVID" is included in LLDP
information transmitted.
Buttons
: Click to apply changes.

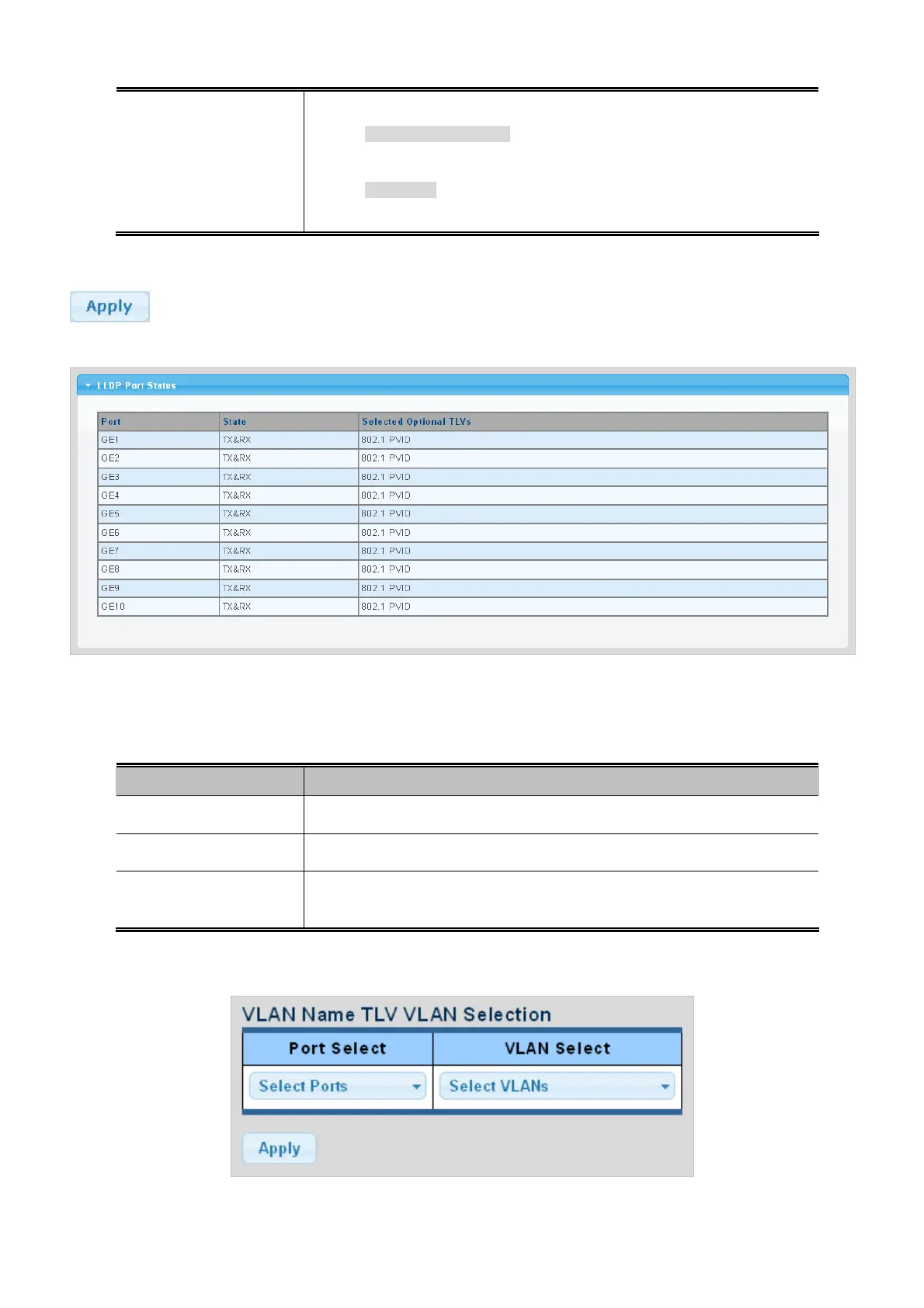

Figure 4-12-4 LLDP Port Status page screenshot
The page includes the following fields:
Object Description
The s
witch port number of the logical port.
 Port
Displa
y the current LLDP status
 State
Displa
y the current selected optional TLVs
 Selected Optional
TLVs
The VLAN Name TLV VLAN Selection and LLDP Port VLAN TLV Status screens in Figure 4-12-5 & Figure 4-12-6 appear.
Figure 4-12-5 VLAN Name TLV Selection page screenshot
