Planet GSD-1002M User Manual

User’s Manual of GSD-1002M

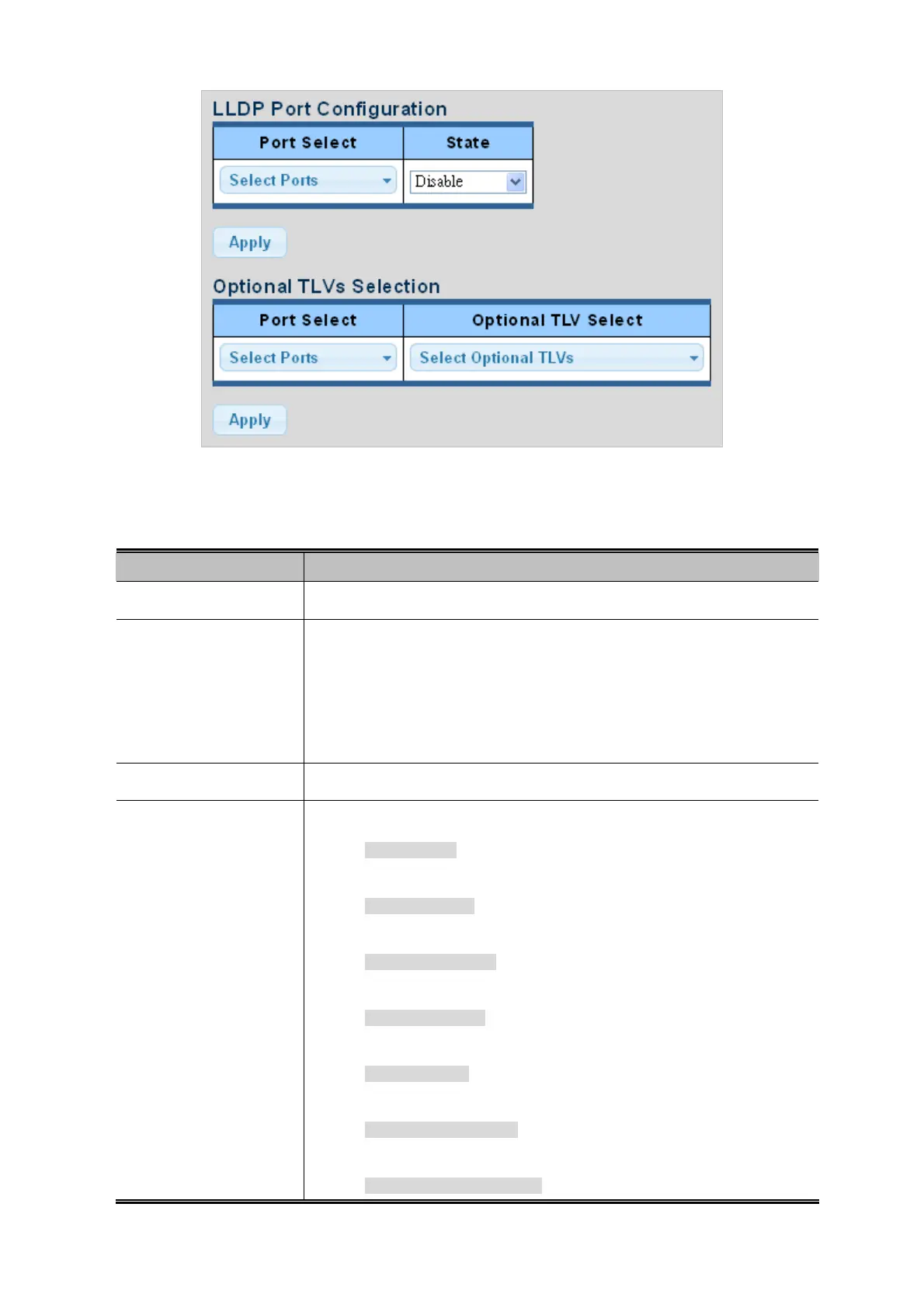

Figure 4-12-3 LLDP Port Configuration and Optional TLVs Selection page screenshot
The page includes the following fields:
Object Description
Select port for this drop dow
n list.
 Port Select
 State
Enables LLDP messages transmit and receive modes for LLDP Protocol Data
Units. Options:
 Tx only
 Rx only
 TxRx
 Disabled
Select port for this drop dow
n list.
 Port Select
 Optional TLV Select
Configures the information included in the TLV field of advertised messages.
 System Name: When checked the "System Name" is included in LLDP
information transmitted.
 Port Description: When checked the "Port Description" is included in
LLDP information transmitted.
 System Description: When checked the "System Description" is
included in LLDP information transmitted.
 System Capability: When checked the "System Capability" is included
in LLDP information transmitted.
 802.3 MAC-PHY: When checked the "802.3 MAC-PHY" is included in
LLDP information transmitted.
 802.3 Link Aggregation: When checked the "802.3 Link Aggregation" is
included in LLDP information transmitted.
 802.3 Maximun Frame Size: When checked the "802.3 Maximun
275
