4.9.12.2 Port Setting
Storm control for the switch is configured on this page. There are three types of storm rate control:
 Broadcast storm rate control
 Unknown Unicast storm rate control
 Unknow Multicast storm rate contro.l
The configuration indicates the permitted packet rate for unknown unicast, unknown multicast, or broadcast traffic across the
switch. The Storm Control Configuration screens in Figure 4-9-71 & Figure 4-9-72 appear.

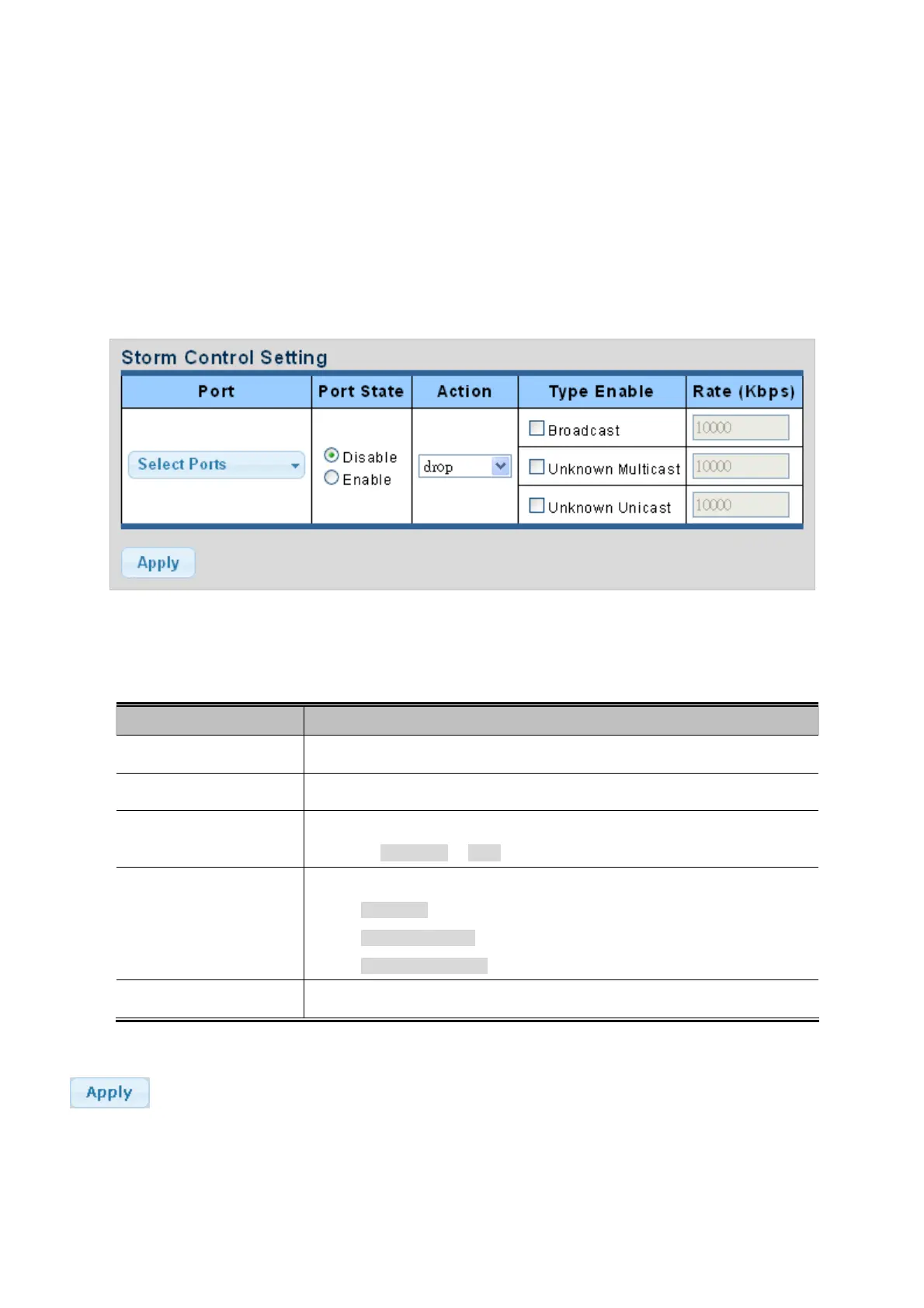

Figure 4-9-71 Storm Control Setting page screenshot
The page includes the following fields:
Object Description
Select port for this drop dow
n list.
 Port
Enable or d
isable the storm control status for the given storm type.
 Port State
Configures th
e action performed when storm control is over rate on a port. Valid
values are Shutdown or Drop.
 Action
 Type Enable
The settings in a particular row apply to the frame type listed here:
 broadcast
 unknown unicast
 unknown multicast
Configure th
e rate for the storm control. The default value is "10,000".
 Rate (kbps/pps)
Buttons
: Click to apply changes.
