User’s Manual of GSD-1002M
4.6.8 STP Statistics

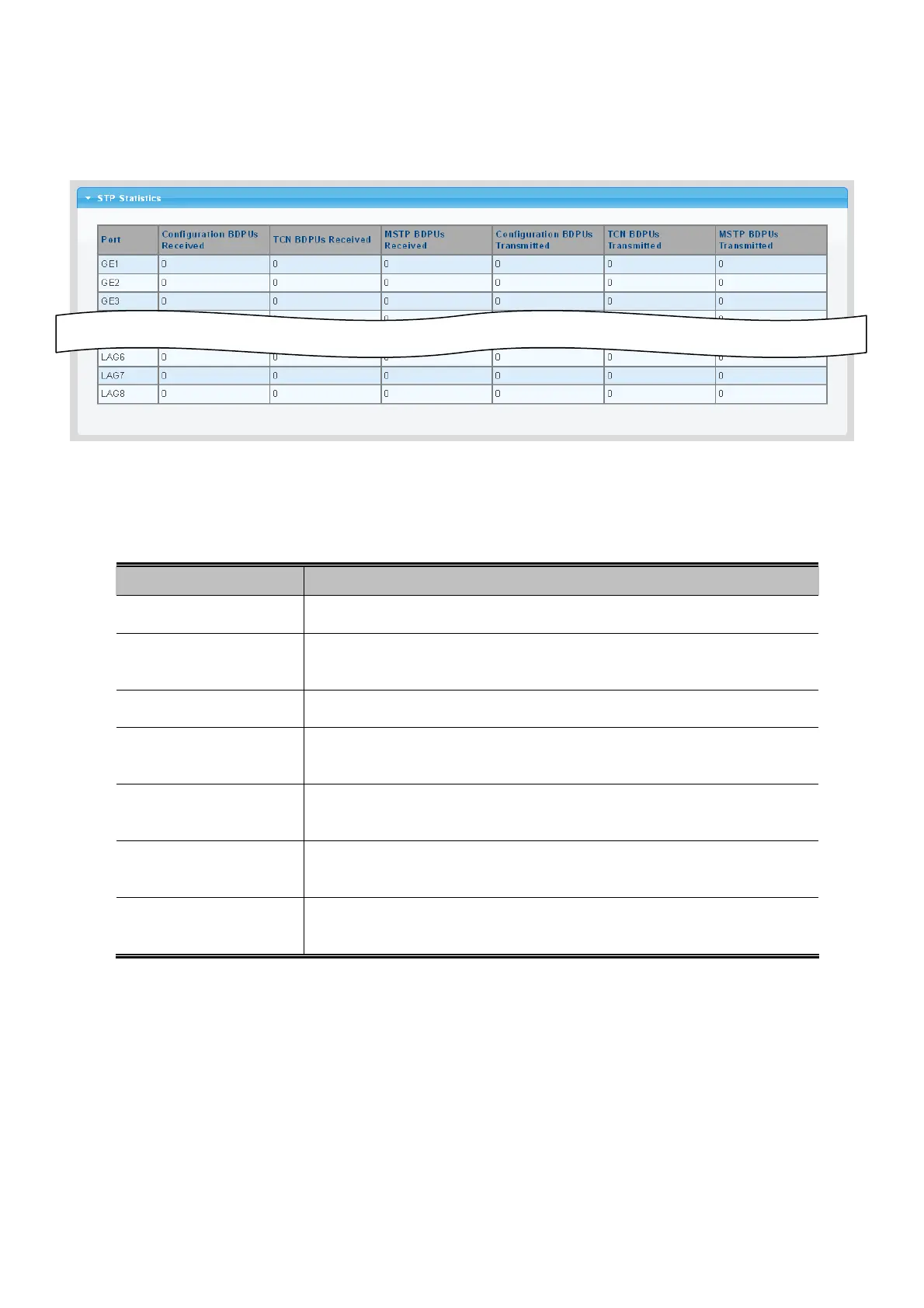

This page displays STP statistics. The STP statistics screen in Figure 4-6-17 appears.
Figure 4-6-17 STP Statistics page screenshot
The page includes the following fields:
Object Description
The s
witch port number of the logical STP port.
 Port
 Configuration BPDUs
Received
Display the current configuration BPDUs received.
 TCN BPDUs Received
Display the current TCN BPDUs received
Displa
y the current MSTP BPDUs received
 MSTP BPDUs
Received
 Configuration BPDUs
Transmitted
Display the configuration BPDUs transmitted
Displa
y the current TCN BPDUs transmitted
 TCN BPDUs
Transmitted
Displa
y the current BPDUs transmitted
 MSTP BPDUs
Transmitted
