4.10.7 ACL Binding
This page allows you to bind the Policy content to the appropriate ACLs. The ACL Policy screens in Figure 4-10-13 & Figure
4-10-14 appears.

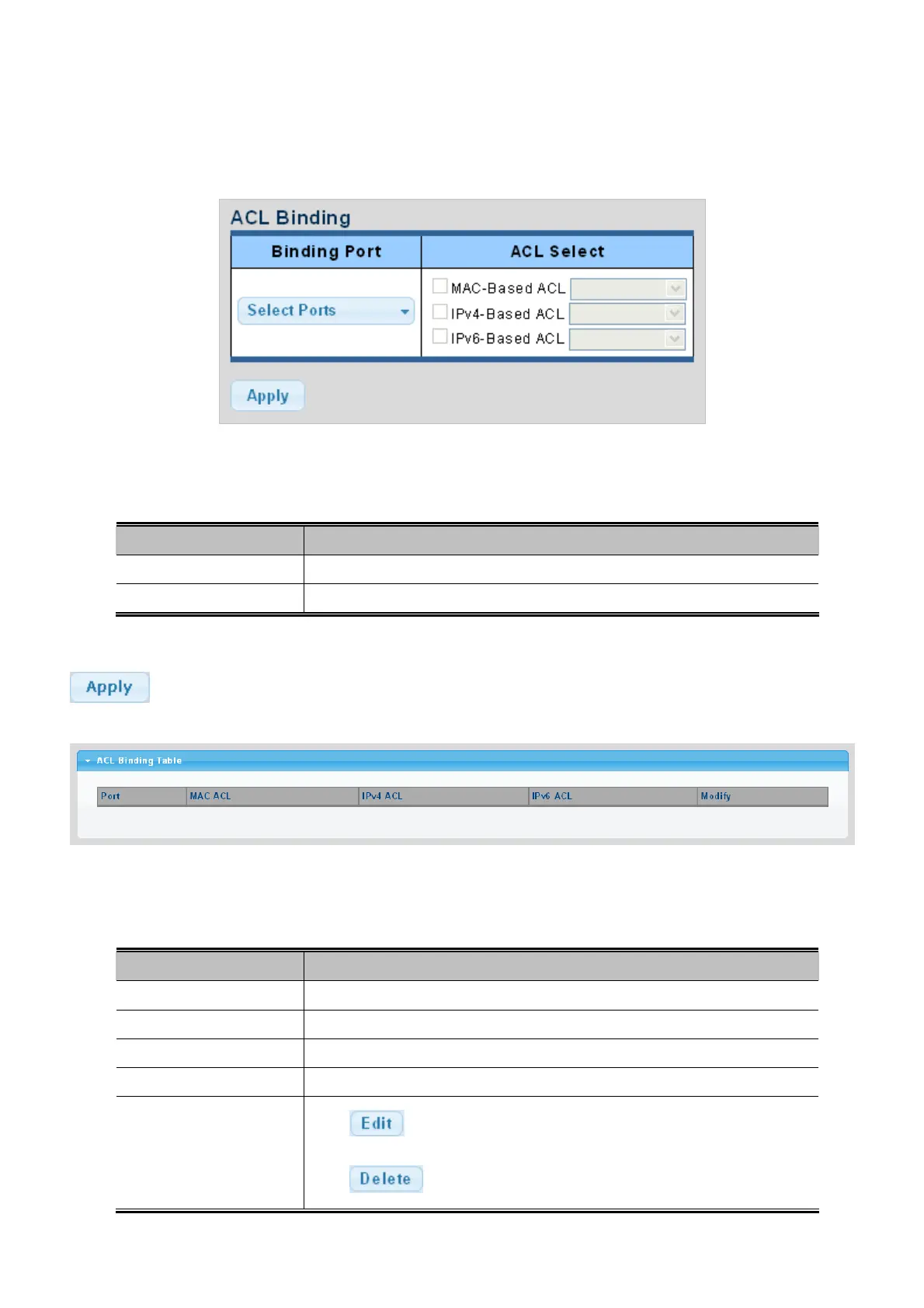

Figure 4-10-13 ACL Binding page screenshot
The page includes the following fields:
Object Description
Select port for this drop dow
n list.
 Bibding Port
Select ACL
list for this drop down list.
 ACL Select
Buttons
: Click to apply changes.
Figure 4-10-14 ACL Binding Table page screenshot
The page includes the following fields:
Object Description
The s
witch port number of the logical port.
 Port
Displa
y the current MAC ACL
 MAC ACL
Displa
y the current IPv4 ACL
 IPv4 ACL
Displa
y the current IPv6 ACL
 IPv6 ACL
 Modify
Click
to edit ACL binding table parameter.
Click
to delete ACL binding entry.
