Planet GSD-1002M User Manual

User’s Manual of GSD-1002M

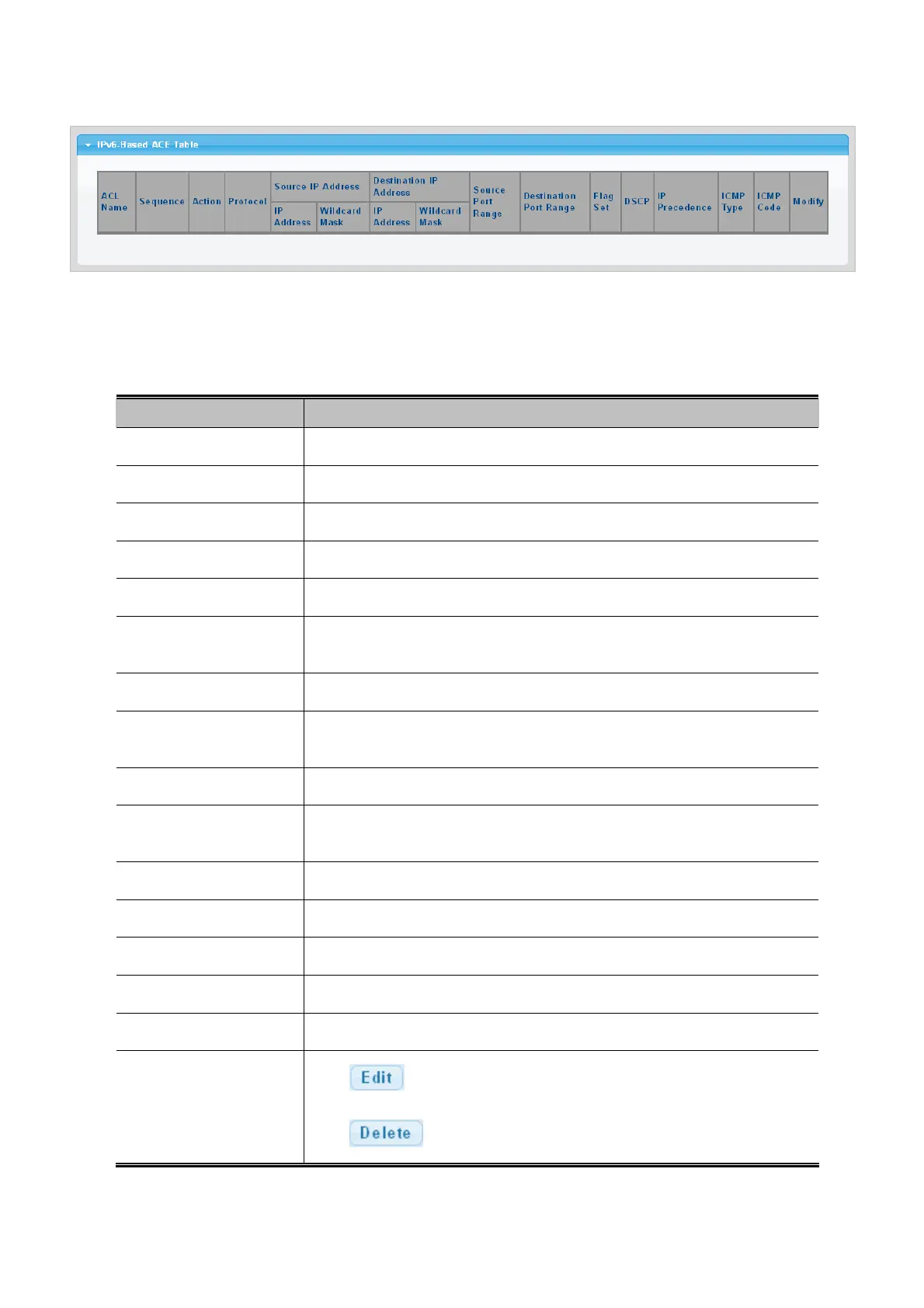

Figure 4-10-12 IPv6-based ACE Table page screenshot
The page includes the following fields:
Object Description
Displa
y the current ACL name
 ACL Name
Displa
y the current sequence
 Sepuence
Displa
y the current action
 Action
Displa
y the current protocol
 Protocol
Displa
y the current source IP address
 Source IP Address
Displa
y the current source IP address wildcard mask
 Source IP Address
Wildcard Mask
 Destination IP Address
Display the current destination IP address
 Destination IP Address
Wildcard Mask
Display the current destination IP address wildcard mask
Displa
y the current source port range
 Source Port Range
Displa
y the current destination port range
 Destination Port
Range
Displa
y the current flag set
 Flag Set
Displa
y the current DSCP
 DSCP
Displa
y the current IP precedence
 IP Precedence
Displa
y the current ICMP Type
 ICMP Type
Displa
y the current ICMP code
 ICMP Code
 Modify
Click
to edit IPv6-based ACL parameter.
Click
to delete IPv6-based ACL entry.
265
