User’s Manual of GSD-1002M

4.5.6 Port to VLAN

Use the VLAN Static Table to configure port members for the selected VLAN index. This Page allows for adding and deleting

port members of each VLAN. The screen in Figure 4-5-7 appears.

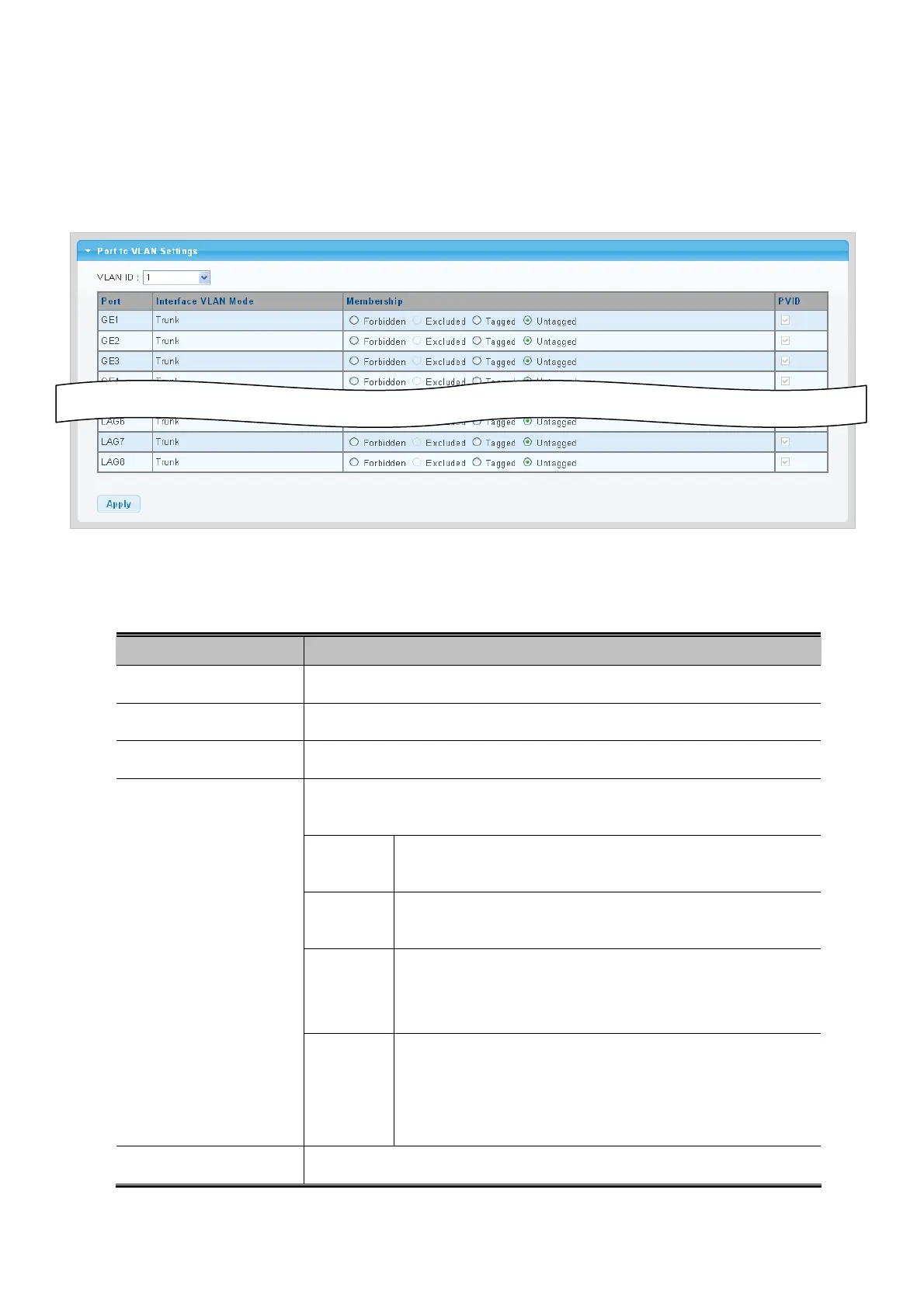

Figure 4-5-7 Port to VLAN Setting page screenshot

The page includes the following fields:

Object Description

Select VLAN ID

for this drop down list to assign VLAN membership.

 VLAN ID

The s

witch port number of the logical port.

 Port

 Interface VLAN Mode

Display the current interface VLAN mode.

Select VLAN membership for each interface by marking the appropriate radio

button for a port or trunk:

Forbidden:

Interface is forbidden from automatically joining the VLAN via

GVRP.

Excluded:

Interface is not a member of the VLAN. Packets associated with

this VLAN will not be transmitted by the interface.

Tagged:

Interface is a member of the VLAN. All packets transmitted by the

port will be tagged, that is, carry a tag and therefore carry VLAN or

CoS information.

 Membership

Untagged:

Interface is a member of the VLAN. All packets transmitted by the

port will be untagged, that is, not carry a tag and therefore not

carry VLAN or CoS information. Note that an interface must be

assigned to at least one group as an untagged port.

Displa

y the current PVID

 PVID

107
