User’s Manual of GSD-1002M
Displa
y the current sequence
 Sepuence
Displa
y the current action
 Action
 Destination MAC Address
Display the current destination MAC address
 Destination MAC Address
Mask
Display the current destination MAC address mask
Displa
y the current source MAC address
 Source MAC Address
 Source MAC Address Mask
Display the current source MAC address mask
Displa
y the current VLAN ID
 VLAN ID
Displa
y the current 802.1p value
 802.1p
Displa
y the current 802.1p mask
 802.1p Mask
Displa
y the current Ethernet type
 Ethertype
 Modify
Click
to edit MAC-based ACL parameter.
Click
to delete MAC-based ACL entry.
4.10.3 IPv4-based ACL
This page shows the ACL status by different ACL users. Each row describes the ACE that is defined. It is a conflict if a specific
ACE is not applied to the hardware due to hardware limitations. IPv4-based ACL screens in Figure 4-10-5 & Figure 4-10-6
appear.

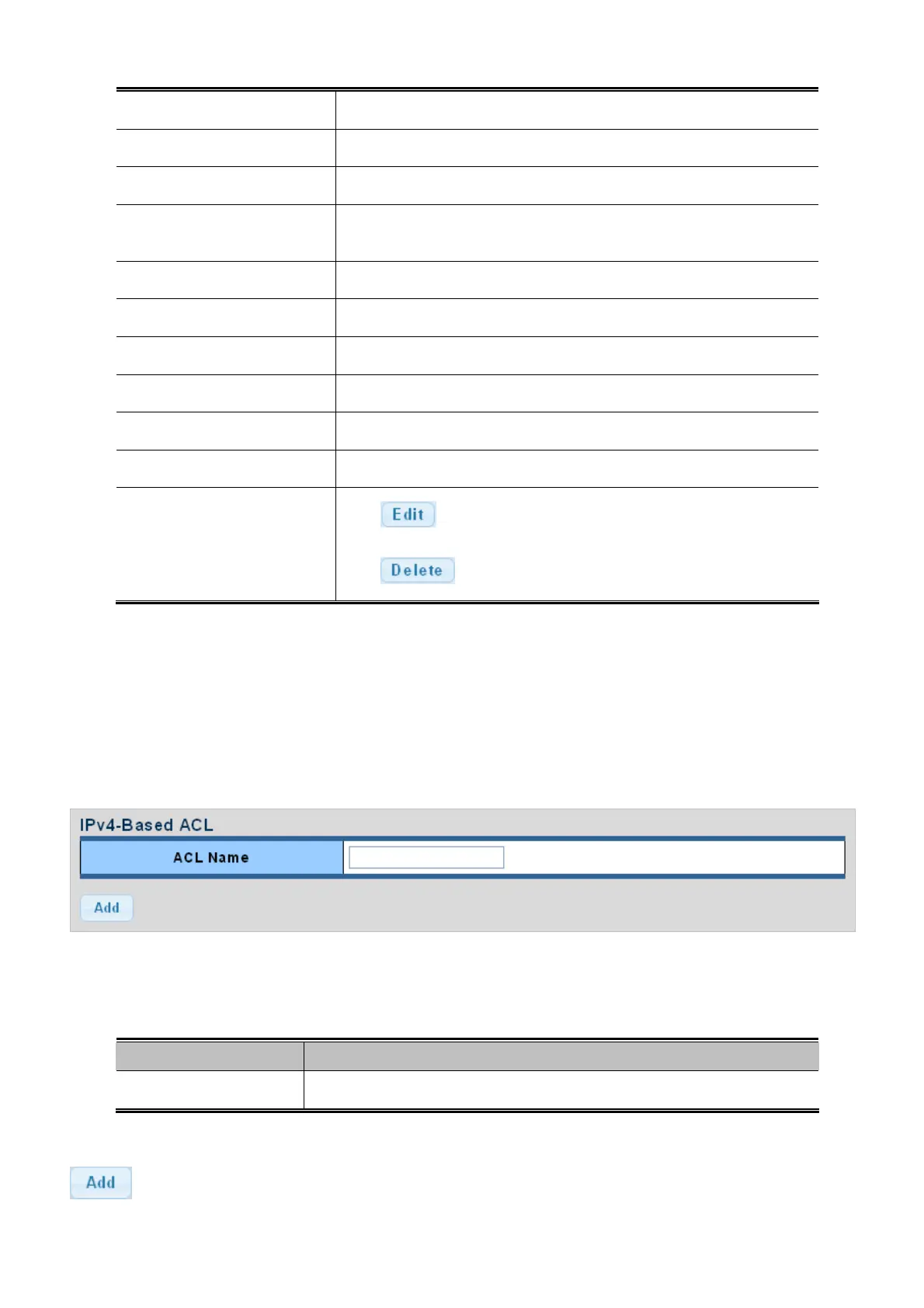

Figure 4-10-5 IPv4-based ACL page screenshot
The page includes the following fields:
Object Description
Create a na
med IPv4-based ACL list
 ACL Name
Buttons
: Click to add ACL name list.
253
