Object Description
Display
the session ID.
 Session ID
This is the mirrorin
g port entry.
 Destination Port
Display
the ingress state.
 Ingress State
Display
the current TX ports.
 Source TX Port
Display
the current RX ports.
 Source RX Port
4.3.5 Jumbo Frame
This page provides to select the maximum frame size allowed for the switch port. The Jumbo Frame screen in Figure 4-3-11 &
Figure 4-3-12 appear.

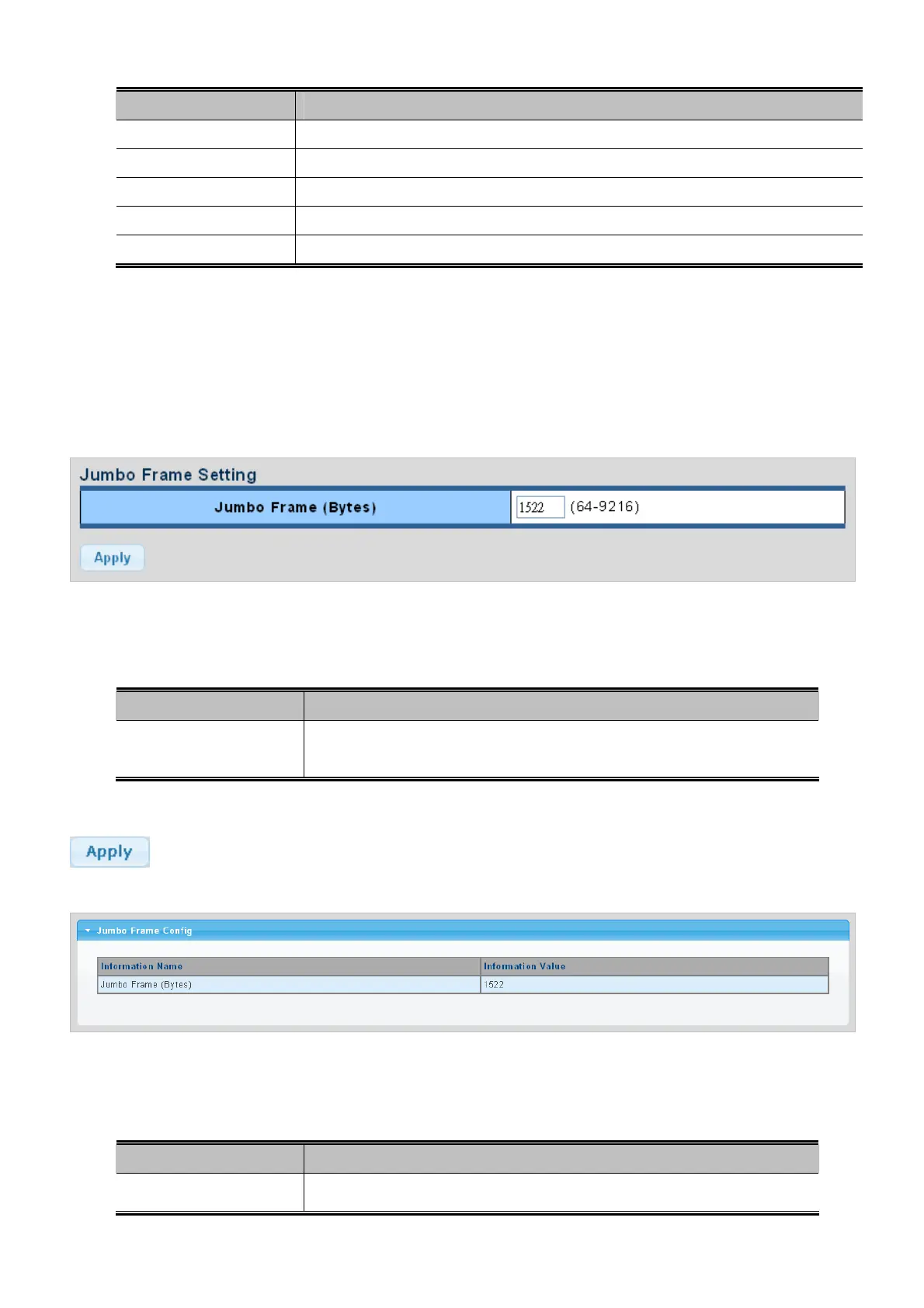

Figure 4-3-11 Jumbo Frame Setting page screenshot
The page includes the following fields:
Object Description
Enter the maximum frame size all
owed for the switch port, including FCS.
The allowed range is 64 bytes to 9216 bytes.
 Jumbo Frame (Bytes)
Buttons
: Click to apply changes.
Figure 4-3-12 Jumbo Frame Information page screenshot
The page includes the following fields:
Object Description
 Jumbo
Display the current maximum frame size.
77
