4.8.2.3 Queue Settings
The Queue Table and Information screens in Figure 4-8-4 & Figure 4-8-5 appear.

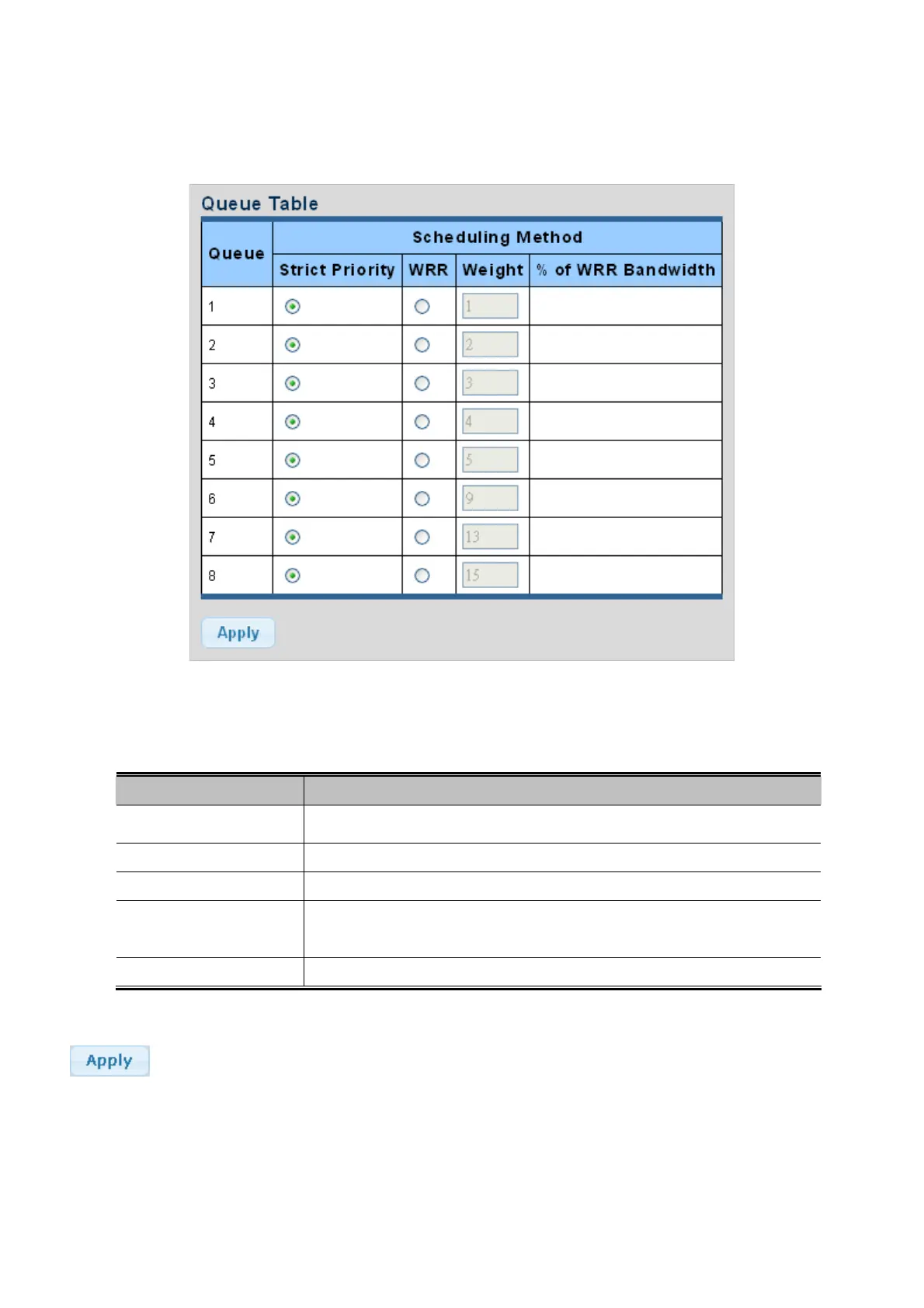

Figure 4-8-4 Queue Table page screenshot
The page includes the following fields:
Object Description
Displa
y the current queue ID.
 Queue
Controls
whether the scheduler mode is "Strict Priority" on this switch port.
 Strict Priority
Controls
whether the scheduler mode is "Weighted" on this switch port.
 WRR
Controls the
weight for this queue. This value is restricted to 1-100. This
parameter is only shown if "Scheduler Mode" is set to "Weighted".
 Weight
 % of WRR Bandwidth
Display the current bandwith for each queue.
Buttons
: Click to apply changes.
