User’s Manual of GSD-1002M
Buttons
: Click to save configuration.
4.1.2.1 Saving Configuration
In the Managed Switch, the running configuration file stores in the RAM. In the current version, the running configuration
sequence of running-config can be saved from the RAM to FLASH by ”Save Configurations to FLASH” function, so that the
running configuration sequence becomes the startup configuration file, which is called configuration save.
To save all applied changes and set the current configuration as a startup configuration. The startup-configuration file will be
loaded automatically across a system reboot.

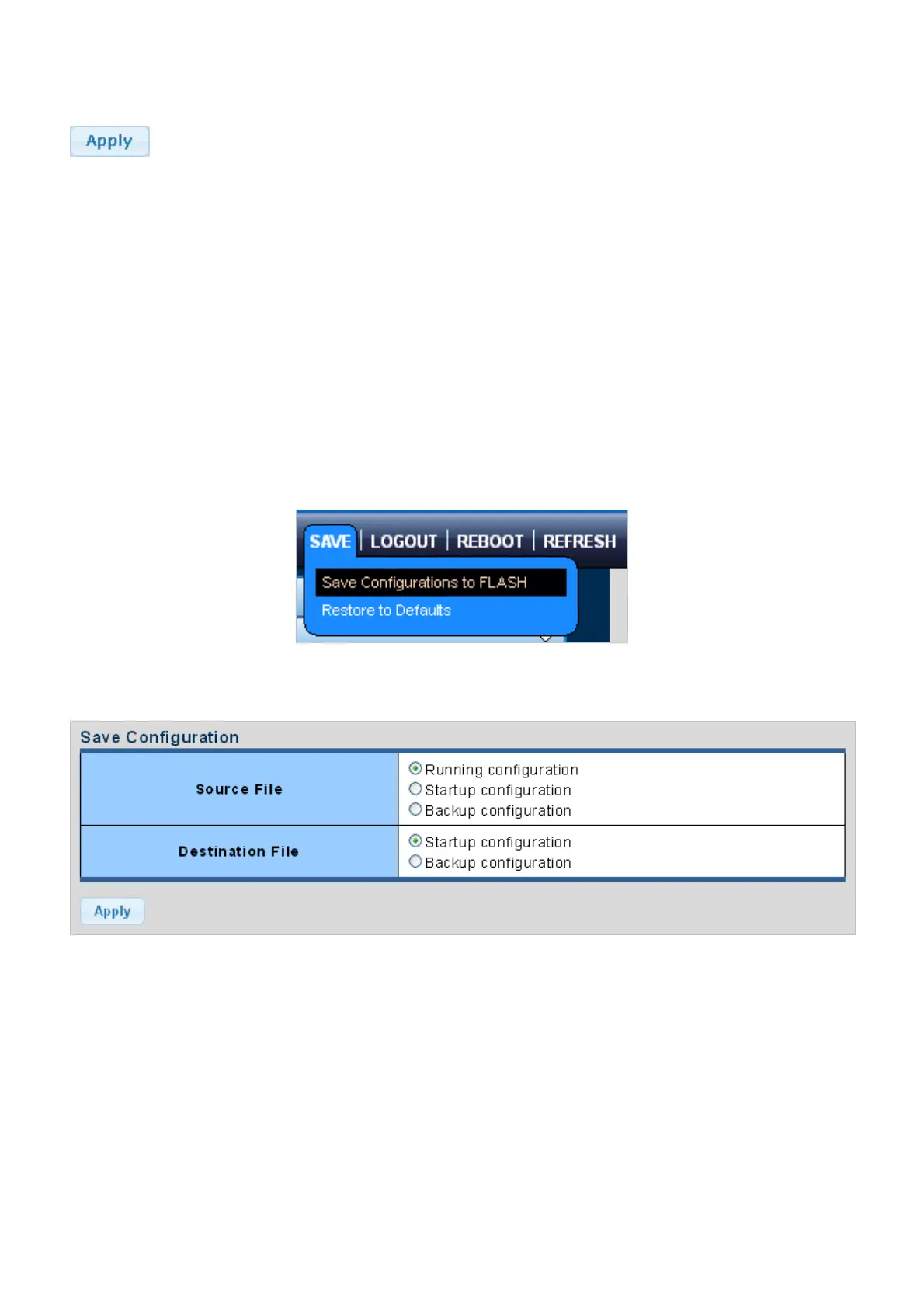

1. Click ”Save > Save Configurations to FLASH” to login “Configuration Manager” Page.
2. Select “Source File = Running Configuration” and “Destination File = Startup Configuration”.
3. Press the “Apply” button to save running configuration to start up configuration.
36
