User’s Manual of GSD-1002M

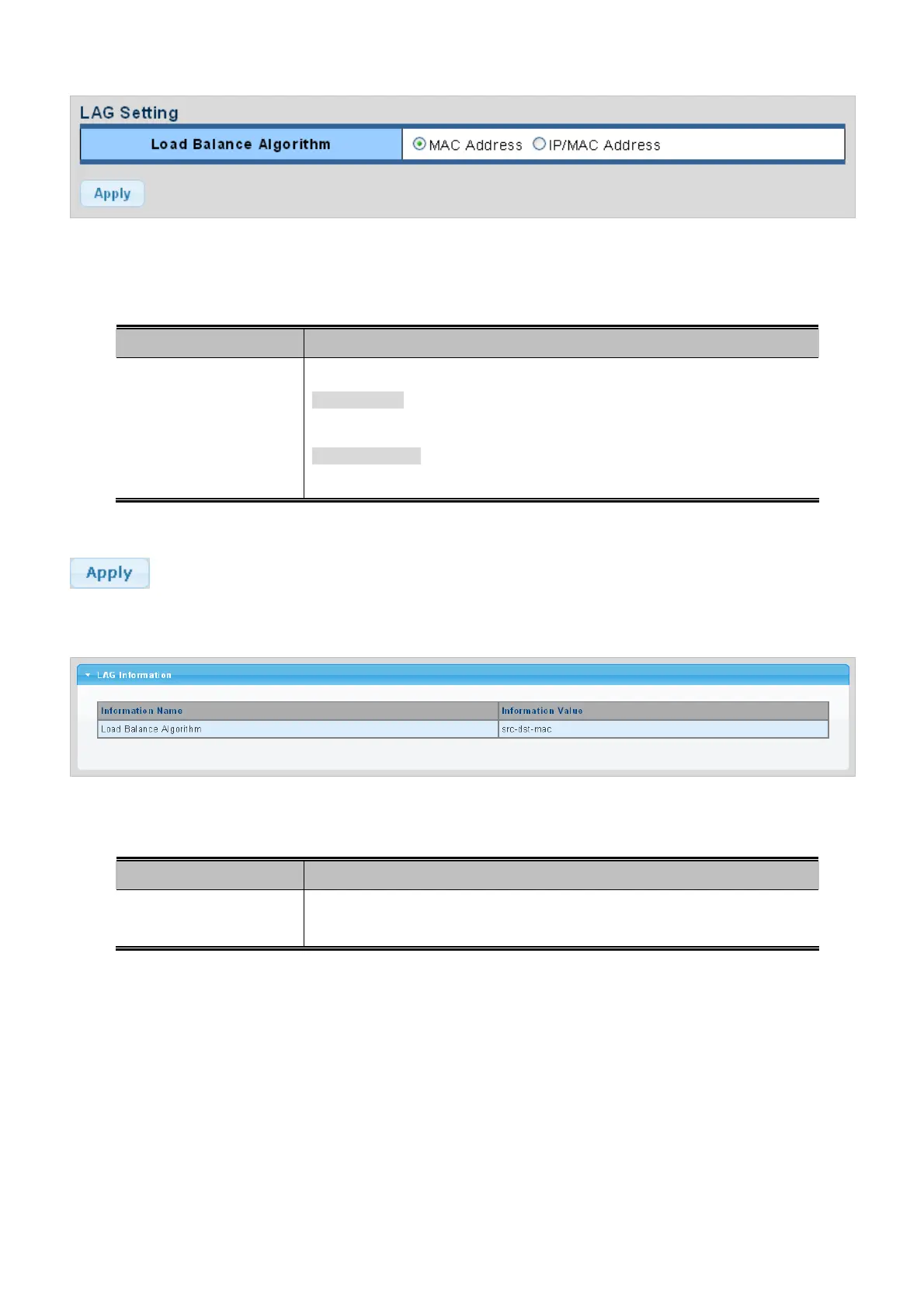

Figure 4-4-3 LAG Setting page screenshot
The page includes the following fields:
Object Description
 Load Balance
Algorithm
Select load balance algorithm mode:
MAC Address: The MAC address can be used to calculate the port for the
frame.
IP/MAC Address: The IP and MAC address can be used to calculate the port for
the frame.
Buttons
: Click to apply changes.
Figure 4-4-4 LAG Information page screenshot
The page includes the following fields:
Object Description
Displa
y the current load balance algorithn.
 Load Balance
Algorithm
4.4.2 LAG Managment
This page is used to configure the LAG management. The LAG Management screens in Figure 4-4-5 & Figure 4-4-6 appear.
