4.7.7.1 Multicast Profile Setting
The Add Profile and Profile Status screens in Figure 4-7-36 & Figure 4-7-37 appear.

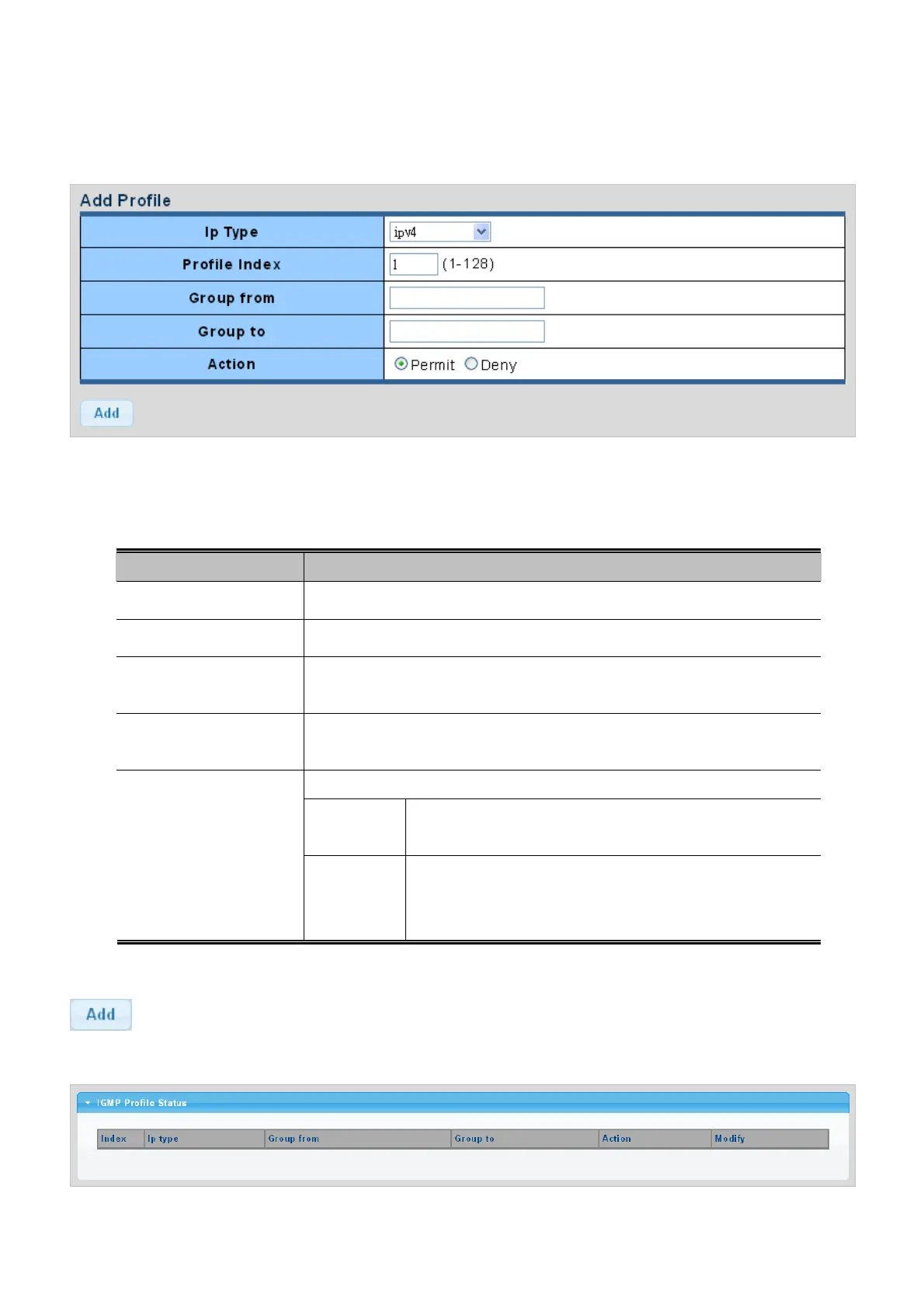

Figure 4-7-36 Add Profile Setting page screenshot
The page includes the following fields:
Object Description
Select IPv4 or IPv6 for this drop dow
n list.
 IP Type
Indicates the ID of this p
articular profile.
 Profile Index
Specifies mu
lticast groups to include in the profile. Specify a multicast group
range by entering a start IP address.
 Group from
Specifies mu
lticast groups to include in the profile. Specify a multicast group
range by entering an end IP address.
 Group to
Sets the access mode of the profile; either permit or deny.
- Permit
Multicast join reports are processed when a multicast group falls
within the controlled range.
 Action
- Deny
When the access mode is set to, multicast join reports are only
processed when the multicast group is not in the controlled
range.
Buttons
: Click to add multicast profile entry.
Figure 4-7-37 IGMP/MLD Profile Status page screenshot
169
