User’s Manual of GSD-1002M

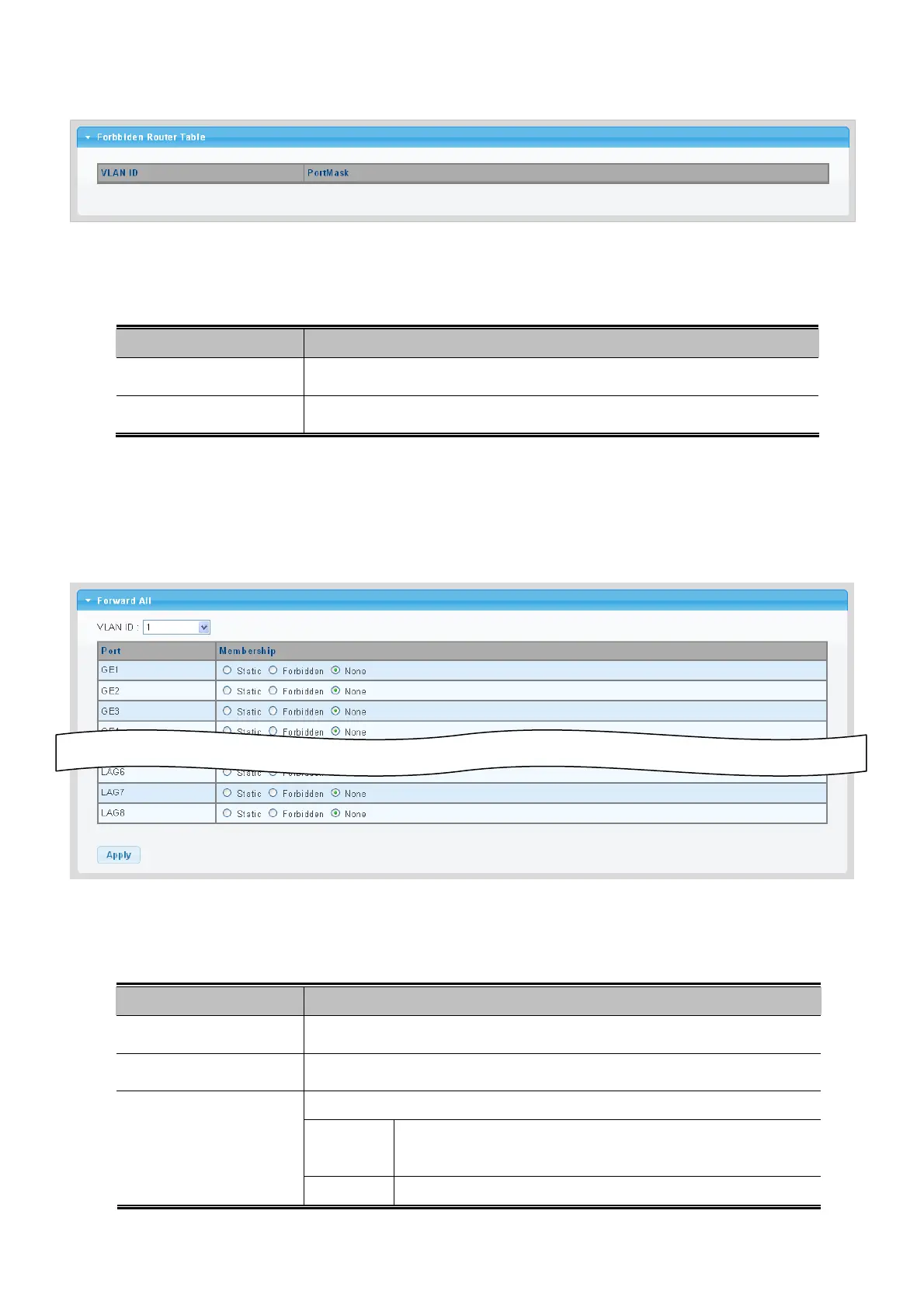

Figure 4-7-19 Forbidden Router Table page screenshot

The page includes the following fields:

Object Description

Displa

y the current VLAN ID.

 VLAN ID

Displa

y the current port mask.

 Port Mask

4.7.2.7 IGMP Forward All

This page provides IGMP Forward All. The Forward All screen in Figure 4-7-20 appears.

Figure 4-7-20 Forward All Setting page screenshot

The page includes the following fields:

Object Description

Select VLAN ID

for this drop down list to assign IGMP membership.

 VLAN ID

The s

witch port number of the logical port.

 Port

Select IGMP membership for each interface:

Forbidden:

Interface is forbidden from automatically joining the IGMP via

MVR.

 Membership

None:

Interface is not a member of the VLAN. Packets associated with

155
