Planet GSD-1002M - GVRP Port Setting

User’s Manual of GSD-1002M
: Click to apply changes.

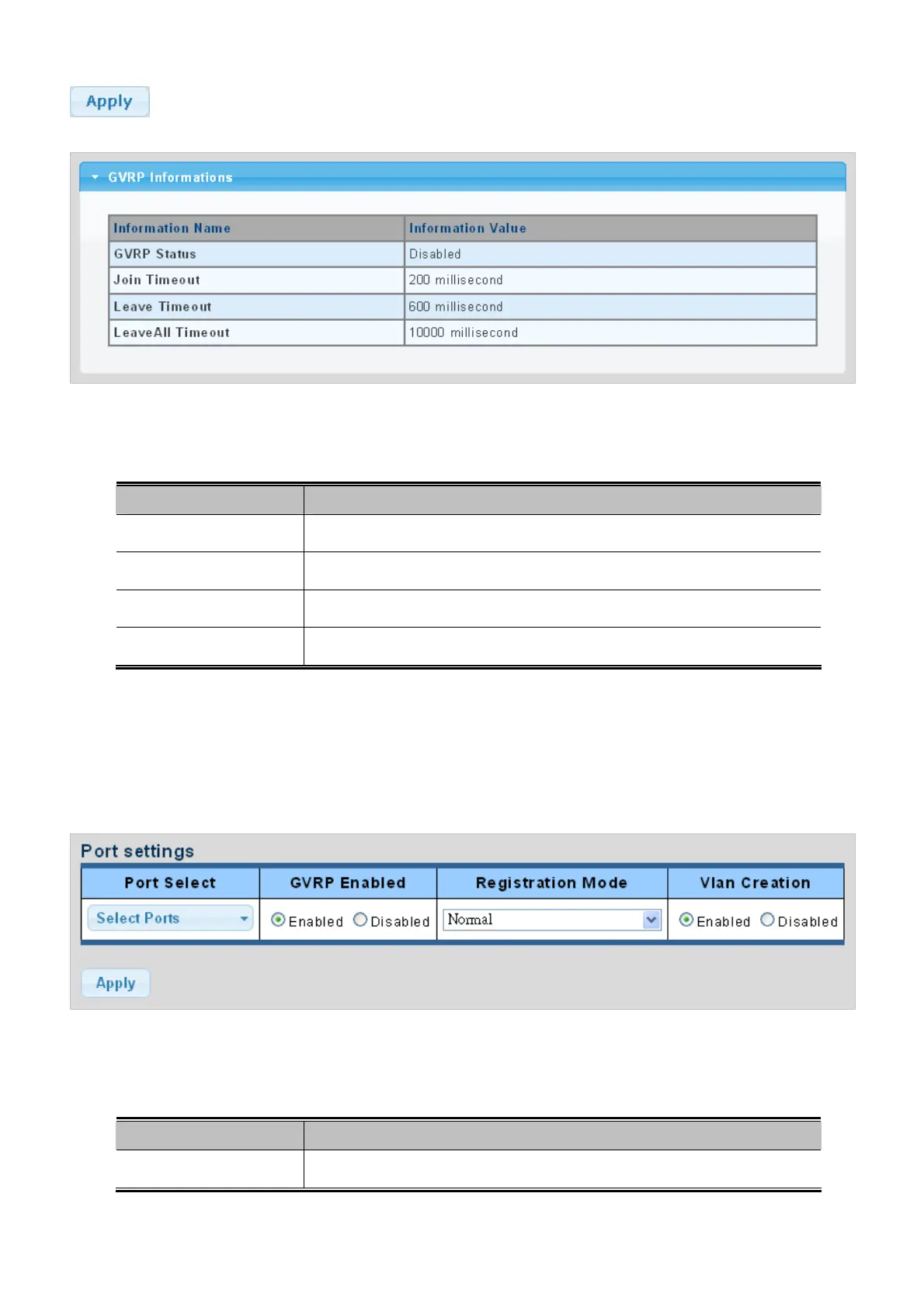

Figure 4-5-14 GVRP Global Setting page screenshot
The page includes the following fields:
Object Description
Displa
y the current GVRP status.
 GVRP Status
Displa
y the current join timeout parameter.
 Join Timeout
Displa
y the current leave timeout parameter.
 Leave Timeout
Displa
y the current leaveall timeout parameter.
 LeaveAll Timeout
4.5.11 GVRP Port Setting
The GVRP Port Setting/Status screen in Figure 4-5-15 & Figure 4-5-16 appear.
Figure 4-5-15 GVRP Global Setting page screenshot
The page includes the following fields:
Object Description
 Port Select
Select port for this drop down list to assign protocol VLAN port.
