User’s Manual of GSD-1002M

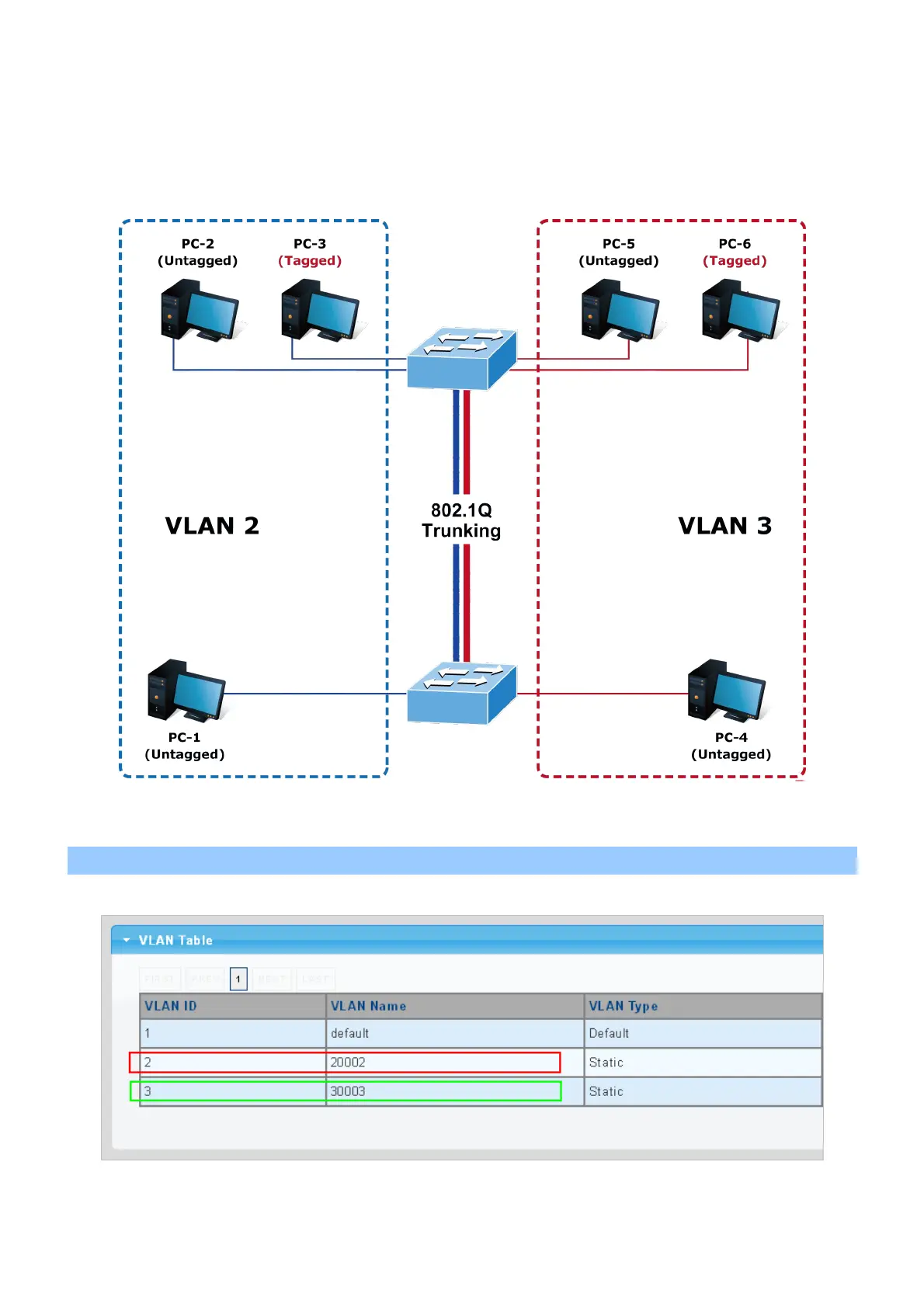

4.5.14.2 VLAN Trunking between two 802.1Q aware switch
The most cases are used for “Uplink” to other switches. VLANs are separated at different switches, but they need to access
with other switches within the same VLAN group. The screen in Figure 4-5-21 appears.
Setup steps
1. Create VLAN Group 2 and 3
Add VLAN group 2 and group 3
120
