Planet GSD-1002M User Manual

User’s Manual of GSD-1002M
The page includes the following fields:
Object Description
Displa
y the current index
 Index
Displa
y the current IP Type
 IP Type
Displa
y the current group from
 Group from
Displa
y the current group to
 Group to
Displa
y the current action
 Action
 Modify
Click
to edit parameter.
Click
to delete the MLD/IGMP profile entry.
4.7.7.2 IGMP Filter Setting

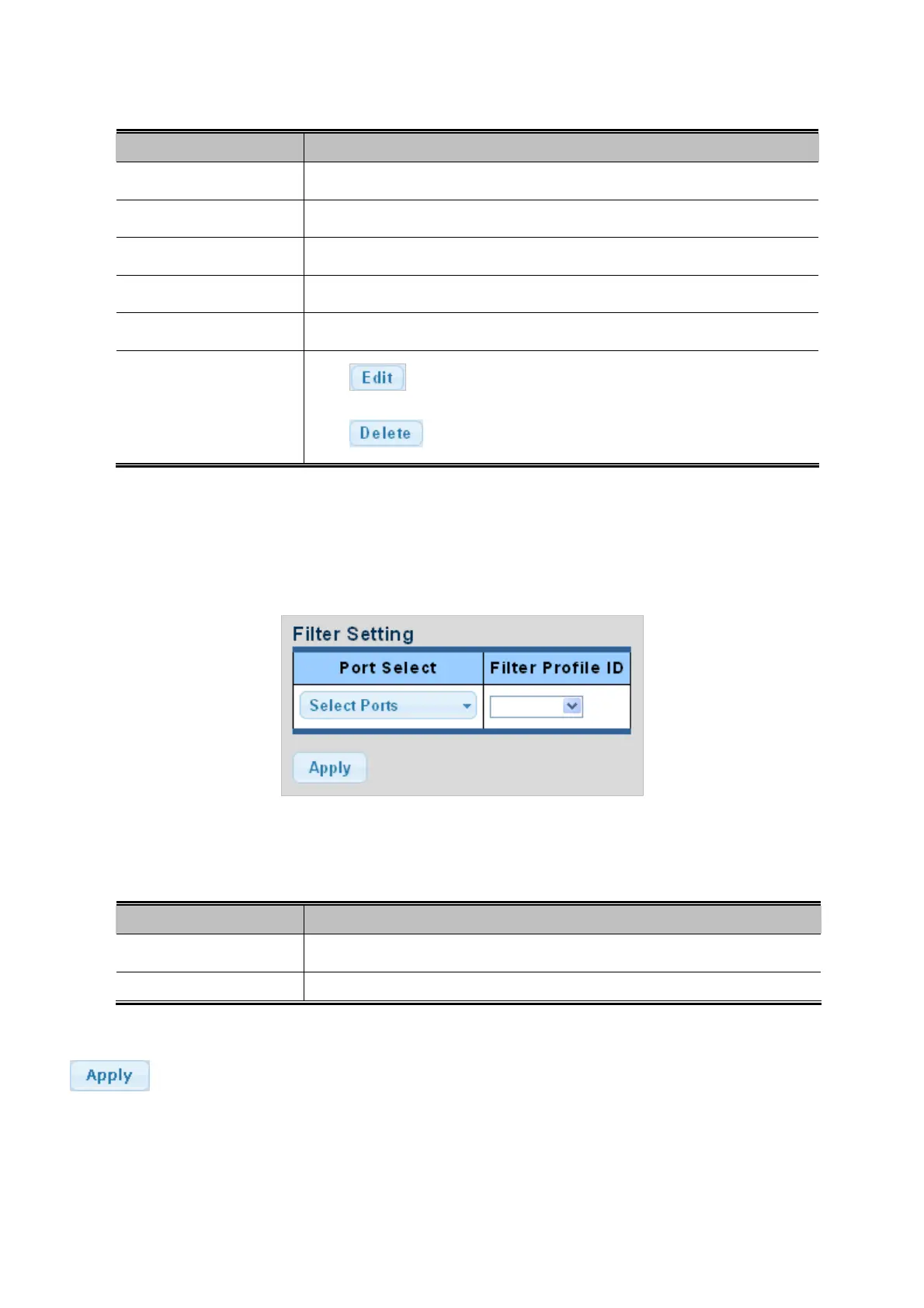

The Filter Setting and Status screens in Figure 4-7-38 & Figure 4-7-39 appear.
Figure 4-7-38 Filter Setting page screenshot
The page includes the following fields:
Object Description
Select port nu
mber for this drop down list.
 Port Select
Select filter profile ID for this drop dow
n list.
 Filter Profile ID
Buttons
: Click to apply changes.
170
