User’s Manual of GSD-1002M

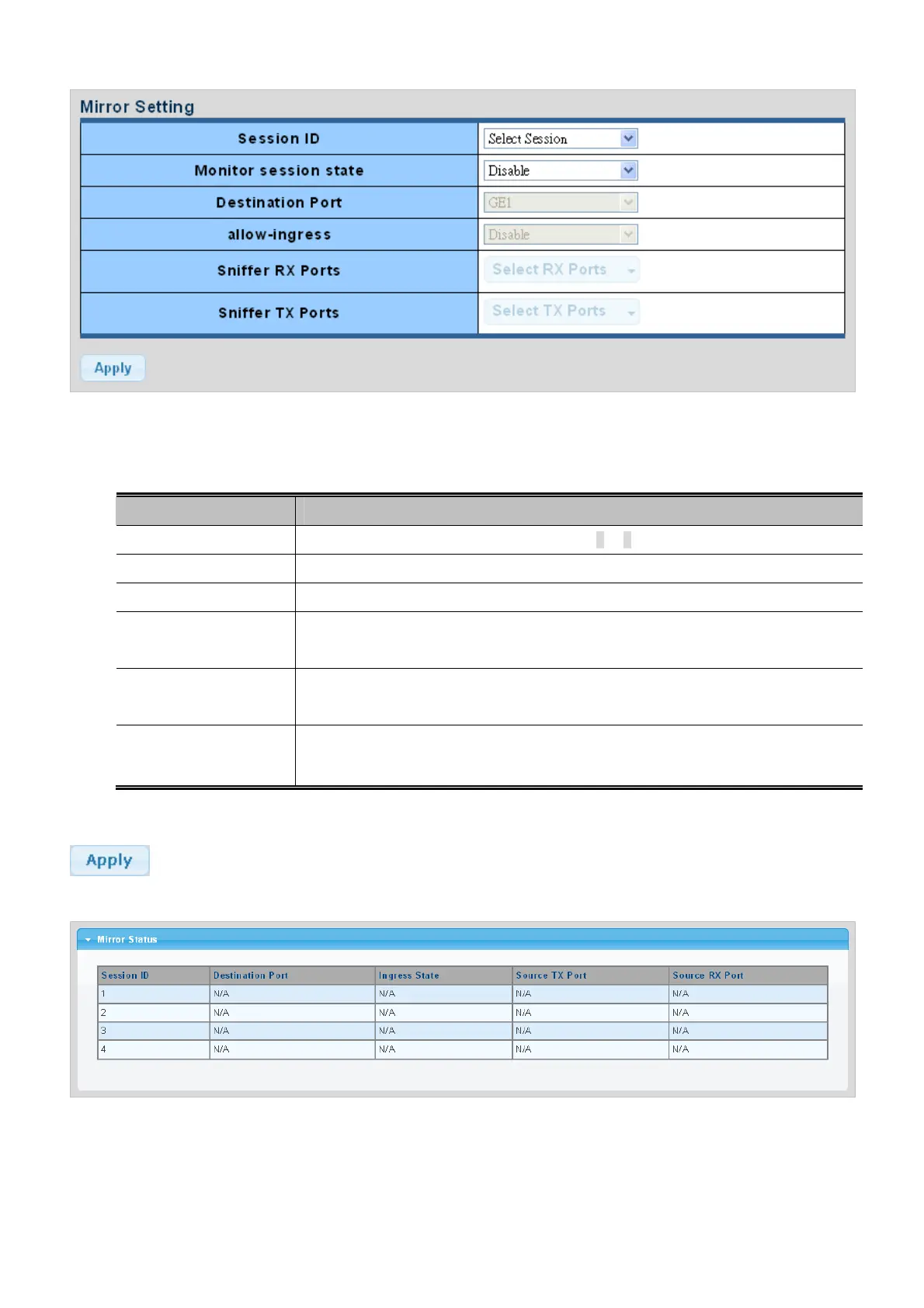

Figure 4-3-9 Port Mirroring Settings page screenshot
The page includes the following fields:
Object Description
Set the port mirror session ID. Possible ID are: 1 to 4.
 Session ID
 Monitor Session State
Enable or disable the port mirroring function.
Select the port to mirror destination port.
 Destin
ation Port
Fr
ames from ports that have either source (rx) or destination (tx) mirroring enabled are
mirrored to this port.
 Allow-ingress
Fr
ames transmitted from these ports are mirrored to the mirroring port. Frames received
are not mirrored.
 Sniffer TX Ports
Fr
ames received at these ports are mirrored to the mirroring port. Frames transmitted are
not mirrored.
 Sniffer RX Ports
Buttons
: Click to apply changes.
Figure 4-3-10 Mirroring Status page screenshot
The page includes the following fields:
76
