User’s Manual of GSD-1002M

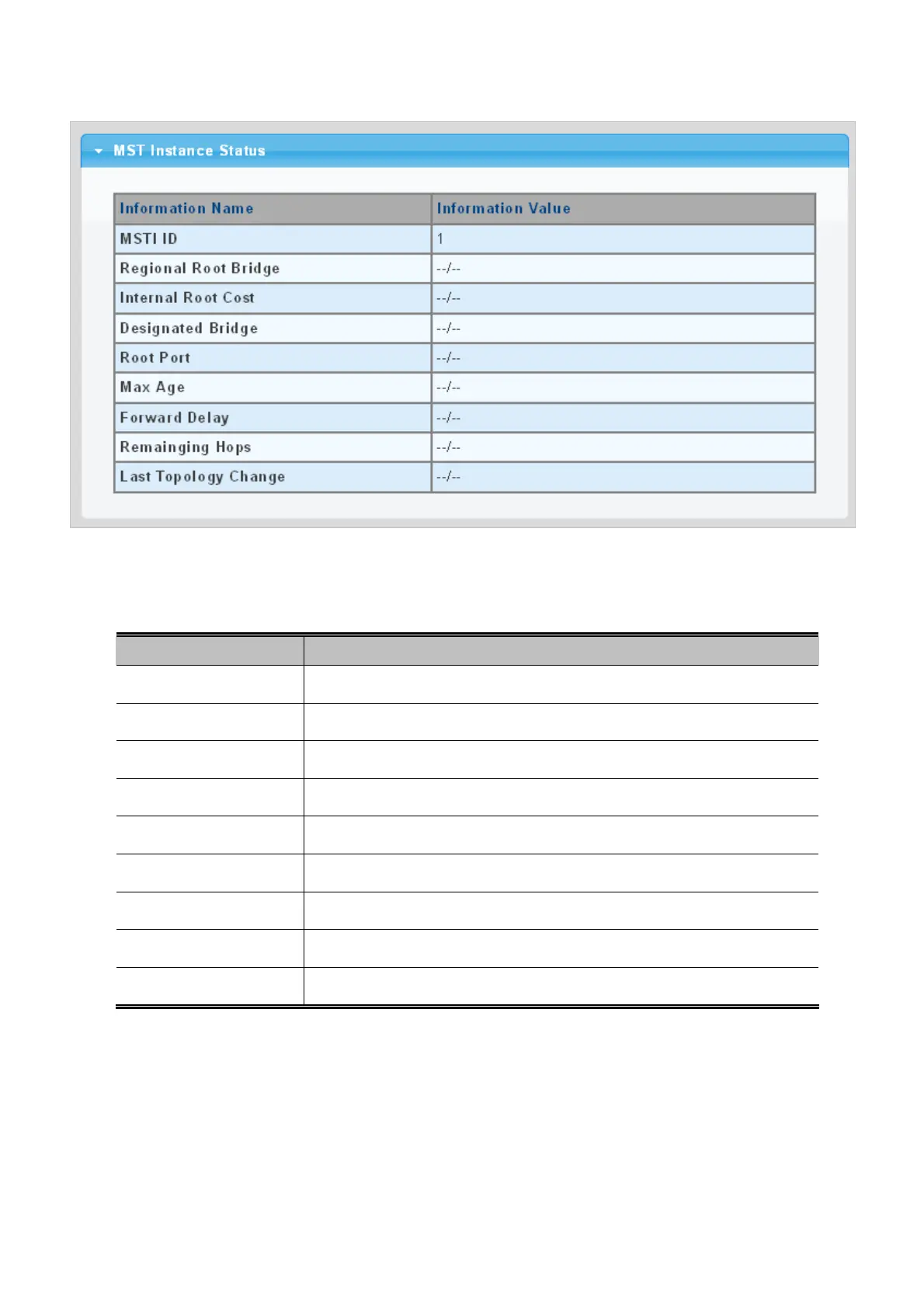

Figure 4-6-14 MST Instance Status page screenshot
The page includes the following fields:
Object Description
Display t
he MSTI ID.
 MSTI ID
 Regional Root Bridge
Display the current designated root bridge.
Displa
y the current internal root cost.
 Internal Root Cost
Displa
y the current designated bridge.
 Designated Bridge
Displa
y the current root port.
 Root Port
Displa
y the current Max. age.
 Max Age
Displa
y the current forward delay.
 Forward Delay
Displa
y the current remaininging hops.
 Remaining Hops
 Last Topology Change
Display the current last topology change.
