User’s Manual of GSD-1002M
Port Type Link Type IEEE 802.1w-2001
Ethernet
Half Duplex
Full Duplex
Trunk
2,000,000
1,000,000
500,000
Fast Ethernet
Half Duplex
Full Duplex
Trunk
200,000
100,000
50,000
Gigabit Ethernet
Full Duplex
Trunk
10,000
5,000
Table 4-6-3 Default STP Path Costs

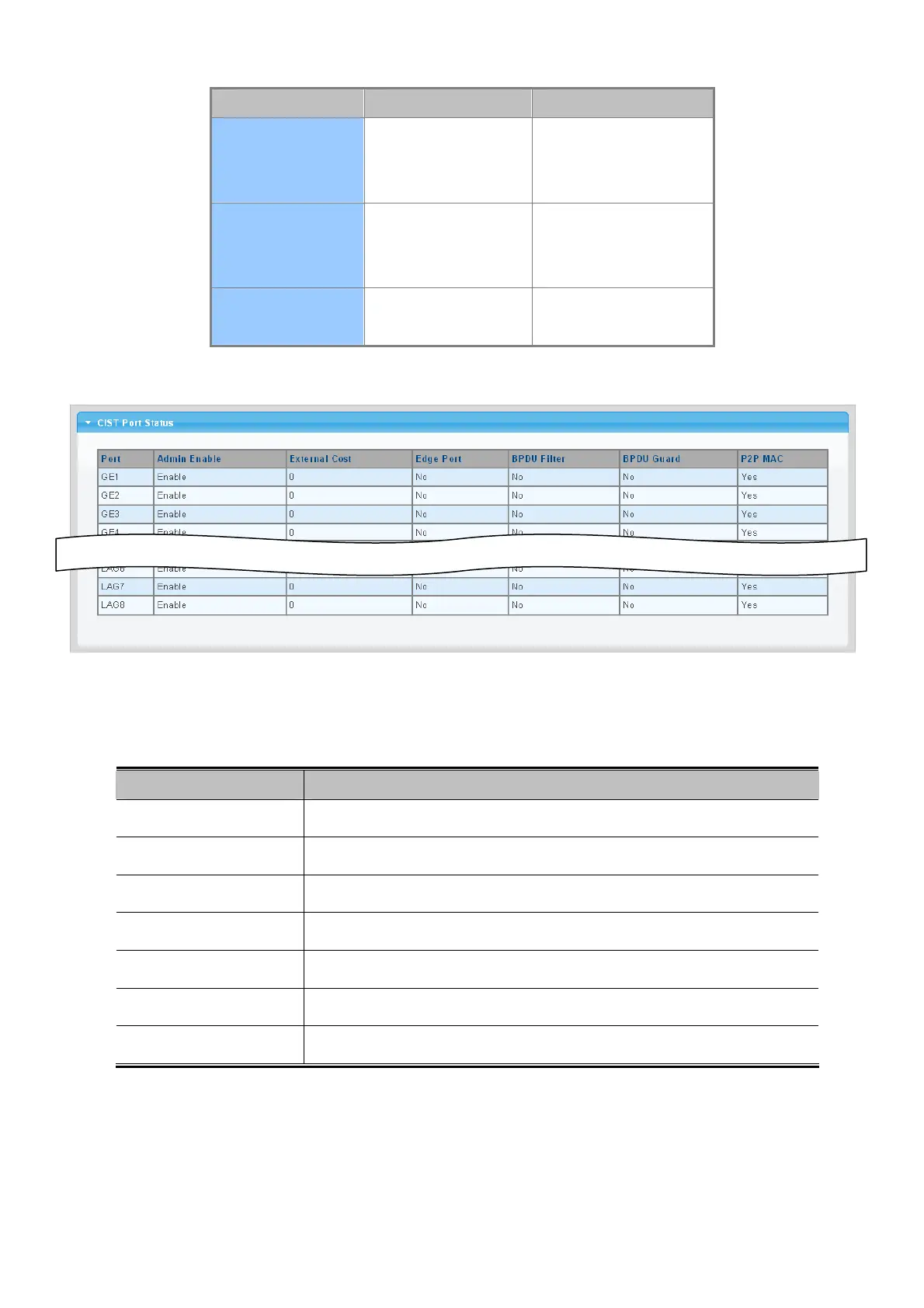

Figure 4-6-7 STP Port Status page screenshot
The page includes the following fields:
Object Description
The s
witch port number of the logical STP port.
 Port
Displa
y the current STP port mode status
 Admin Enable
Displa
y the current external cost.
 External Cost
Displa
y the current edge port status.
 Edge Port
Displa
y the current BPDU filter configuration.
 BPDU Filter
Displa
y the current BPDU guard configuration.
 BPDU Guard
Displa
y the current P2P MAC status.
 P2P MAC
133
