Planet GSD-1002M User Manual

User’s Manual of GSD-1002M

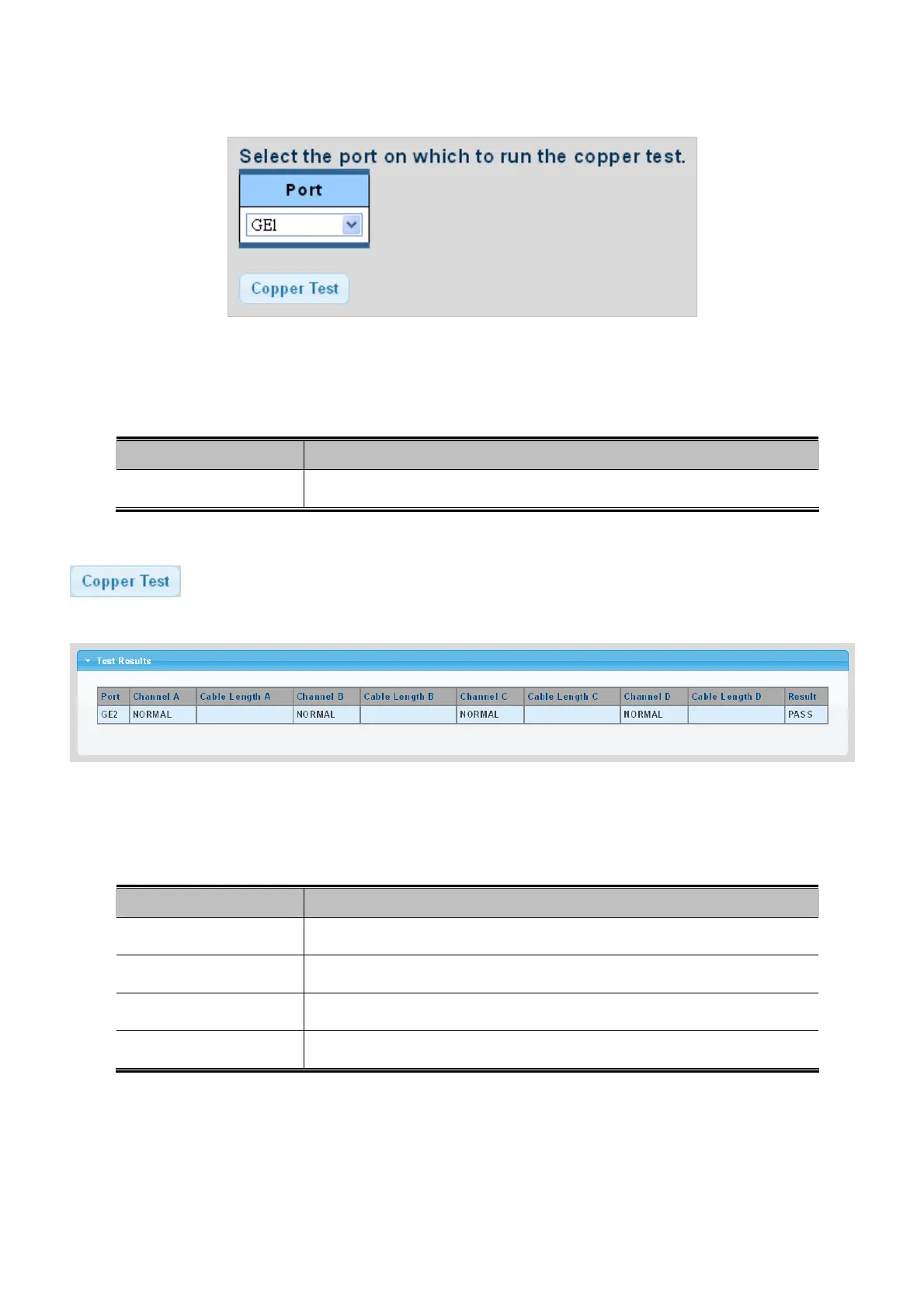

The Copper test and test result screens in Figure 4-13-1 & Figure 4-13-2 appear.
Figure 4-13-1 Copper Test page screenshot
The page includes the following fields:
Object Description
Select port for this drop dow
n list.
 Port
Buttons
: Click to run the diagnostics.
Figure 4-13-2 Test Results page screenshot
The page includes the following fields:
Object Description
The port
where you are requesting Cable Diagnostics.
 Port
Displa
y the current channel status
 Channel A~D
Displa
y the current cable length
 Cable Length A~D
Displa
y the test result
 Result
