User’s Manual of GSD-1002M
 Flow Control
When Auto Speed is selected for a port, this section indicates the flow control
capability that is advertised to the link partner.
When a fixed-speed setting is selected, that is what is used.
Current Rx column indicates whether pause frames on the port are obeyed.
Current Tx column indicates whether pause frames on the port are transmitted.
The Rx and Tx settings are determined by the result of the last Auto-Negotiation.
Check the configured column to use flow control.
This setting is related to the setting for Configured Link Speed.
Buttons
: Click to apply changes.

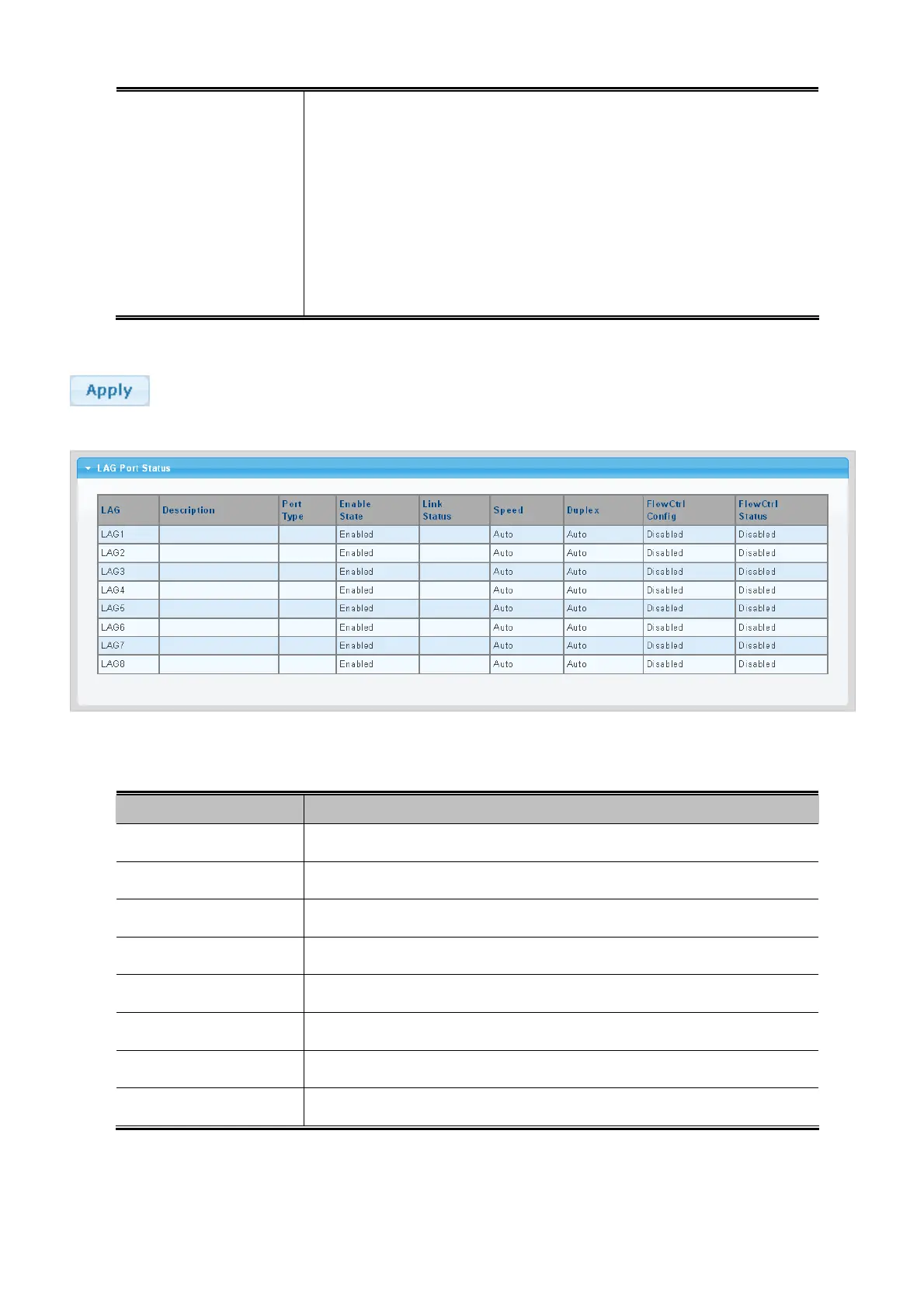

Figure 4-4-8 LAG Port Status page screenshot
The page includes the following fields:
Object Description
The LAG for
the settings contained in the same row.
 LAG
Displa
y the current description.
 Description
Displa
y the current port type.
 Port Type
Displa
y the current enable state.
 Enable State
Displa
y the current speed.
 Speed
Displa
y the current duplex mode.
 Duplex
 Flow Control Config
Display the current flow control configuration.
Displa
y the current flow control status.
 Flow Control Status
