User’s Manual of GSD-1002M

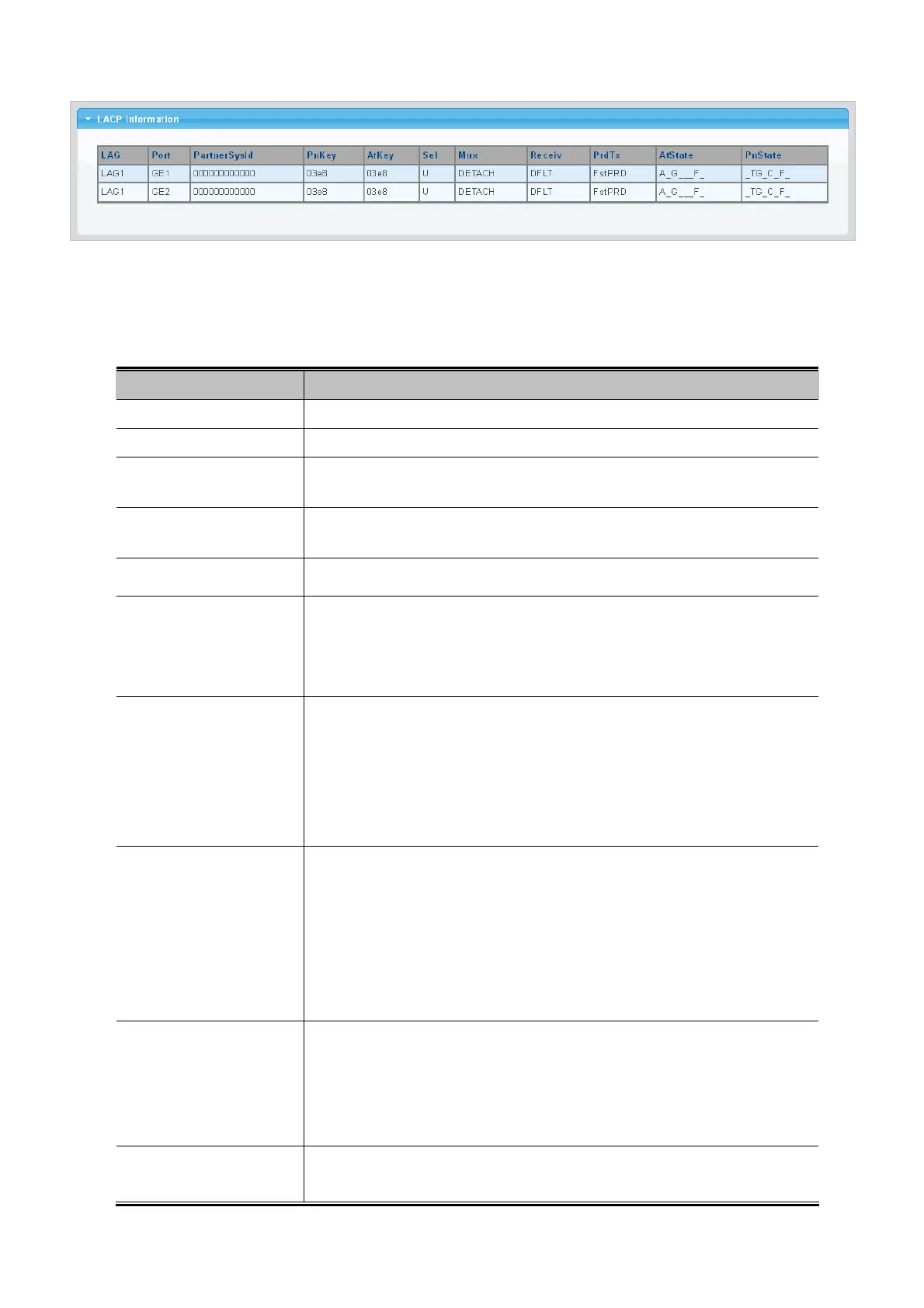

Figure 4-4-14 LACP Information page screenshot
The page includes the following fields:
Object Description
 Trunk
Display the current trunk ID.
 Port
Display the current port number.
 PartnerSysId
The system ID of link partner. This field would be updated when the port receives
LACP PDU from link partner.
 PnKey
Port key of partner. This field would be updated when the port receives LACP
PDU from link partner.
 AtKey
Port key of actor. The key is designed to be the same as trunk ID.
 Sel
LACP selection logic status of the port.
 “S” means selected
 “U” means unselected
 “D” means standby
 Mux
LACP mux state machine status of the port.
 “DETACH” means the port is in detached state
 “WAIT” means waiting state
 “ATTACH” means attach state
 “CLLCT” means collecting state
 “DSTRBT” means distributing state
 Receiv
LACP receive state machine status of the port.
 “INIT” means the port is in initialize state
 “PORTds” means port disabled state
 “EXPR” means expired state
 “LACPds” means LACP disabled state
 “DFLT” means defaulted state
 “CRRNT” means current state.
 PrdTx
LACP periodic transmission state machine status of the port.
 “no PRD” means the port is in no periodic state
 “FstPRD” means fast periodic state
 “SlwPRD” means slow periodic state
 “PrdTX” means periodic TX state
 AtState
The actor state field of LACP PDU description.
The field from left to right describes: “LACP_Activity”, “LACP_Timeout”,
95
