Planet IGS-10020MT User Manual

User’s Manual of IGS-10020MT
100
: Click to refresh the page. Any changes made locally will be undone.
erview of general traffic statistics for all sw
itch ports. The Port Statistics Overview screen in Figure
4-4-2 appears.
4.4.2 Port Statistics Overview
This page provides an ov

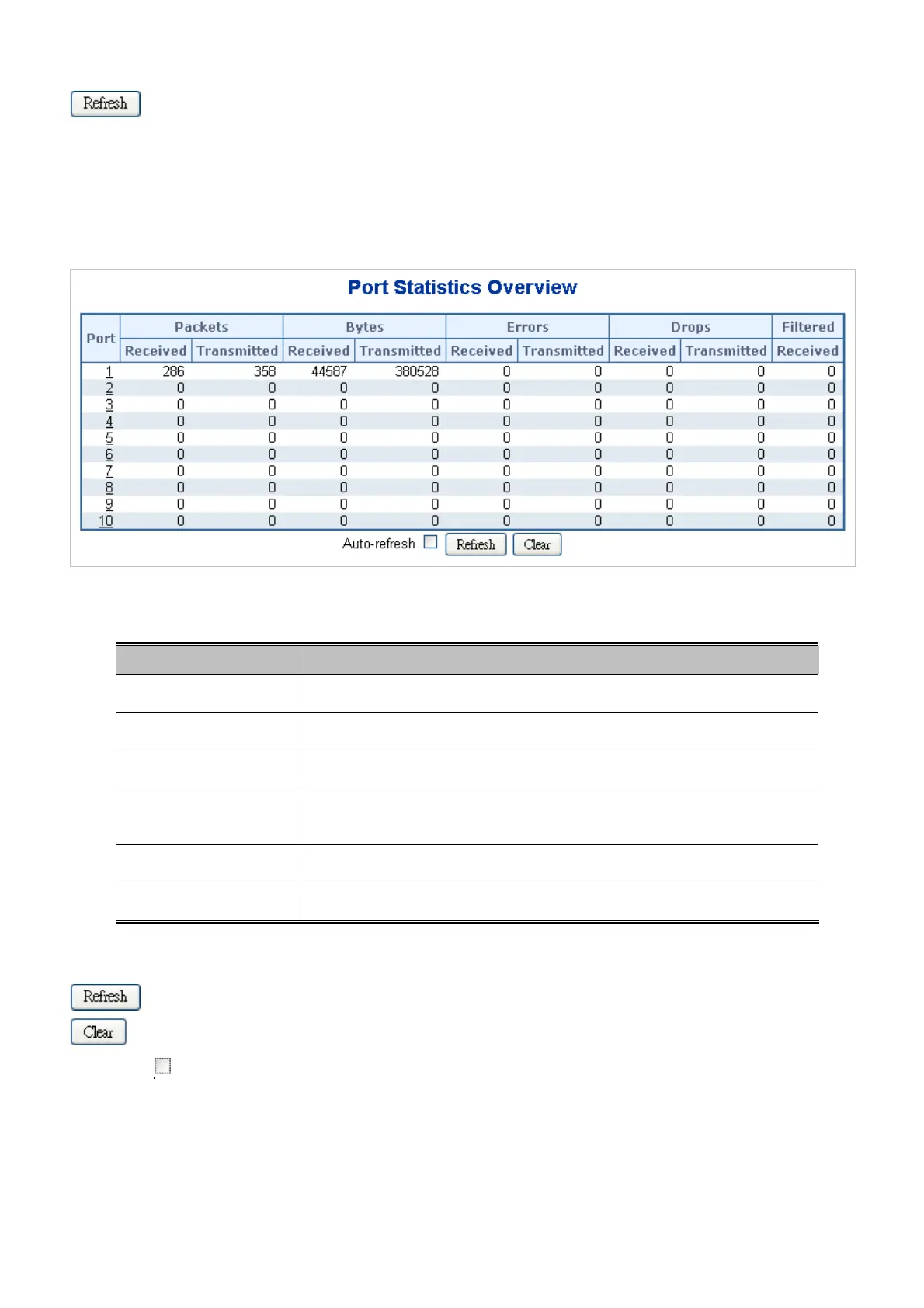

Figure 4-4-2: Port Statistics Overview Page Screenshot
The disp unters are: layed co
Object Description
 Port
The logical port for the settings contained in the same row.
 Packets
t. The number of received and transmitted packets per por
 Bytes
The number of received and transmitted bytes per port.
 Errors
ceived in error and the number of incomplete The number of frames re
transmissions per port.
 Drops
The number of frames discarded due to ingress or egress congestion.
 Filtered
The number of received frames filtered by the forwarding process.
Buttons
: Click to refresh the page immediately.
: Clears the counters for all ports.
Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.

Planet IGS-10020MT Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	255
Networking standards	IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Throughput	14.8 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Black
Housing material	Aluminum
International Protection (IP) code	IP30
Power consumption (typical)	10 W
Heat dissipation	34 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87.8 mm
Width	56 mm
Height	135 mm
Weight	720 g
