4.14 LLDP
4.14.1 Link Layer Discovery Protocol
Link Layer Discovery Protocol (LLDP) is used to discover basic information about neighboring devices on the local broadcast
domain. LLDP is a Layer 2 protocol that uses periodic broadcasts to advertise information about the sending device. Advertised
information is represented in Type Length Value (TLV) format according to the IEEE 802.1ab standard, and can include details
such as device identification, capabilities and configuration settings. LLDP also defines how to store and maintain information
gathered about the neighboring network nodes it discovers.
Link Layer Discovery Protocol - Media Endpoint Discovery (LLDP-MED) is an extension of LLDP intended for managing
endpoint devices such as Voice over IP phones and network switches. The LLDP-MED TLVs advertise information such as
network policy, power, inventory, and device location details. LLDP and LLDP-MED information can be used by SNMP
applications to simplify troubleshooting, enhance network management, and maintain an accurate network topology.
4.14.2 LLDP Configuration
This page allows the user to inspect and configure the current LLDP port settings. The LLDP Configuration screen in Figure
4-14-1 appears.

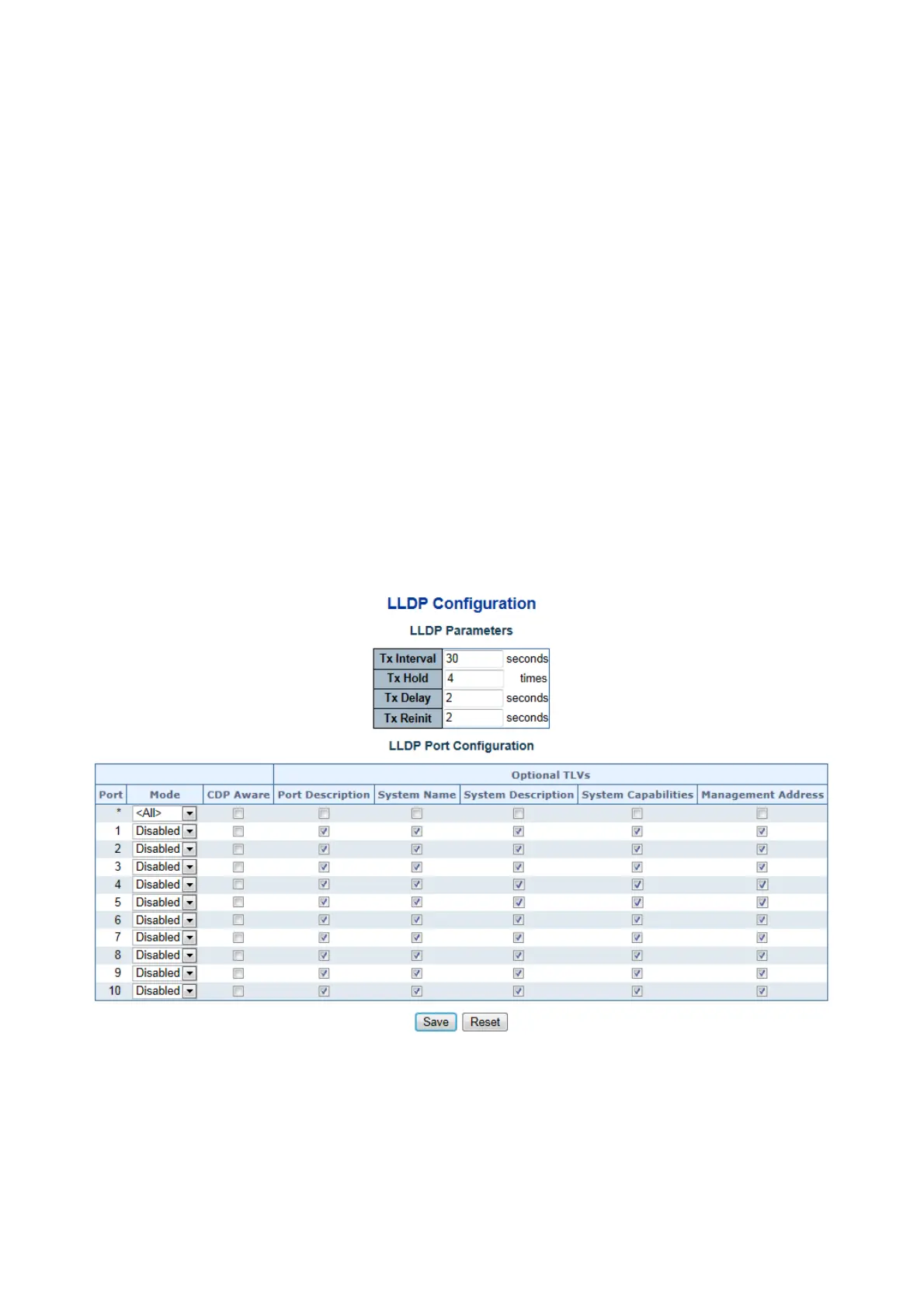

Figure 4-14-1: LLDP Configuration Page Screenshot

Planet IGS-10020MT Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	255
Networking standards	IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Throughput	14.8 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Black
Housing material	Aluminum
International Protection (IP) code	IP30
Power consumption (typical)	10 W
Heat dissipation	34 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87.8 mm
Width	56 mm
Height	135 mm
Weight	720 g
