Planet IGS-10020MT User Manual

User’s Manual of IGS-10020MT
152
The switch with the lowest Bridge ID (switch C) was elected the root bridge, and the ports were selected to give a high port cost
between switches B and C. The two (optional) Gigabit ports (default port cost = 20,000) on switch A are connected to one
(optional) Gigabit port on both switch B and C. The redundant link between switch B and C is deliberately chosen as a 100 Mbps
Fast Ethernet link (default port cost = 200,000). Gigabit ports could be used, but the port cost should be increased from the
default to ensure that the link between switch B and switch C is the blocked link.
4.7.2 STP System Configuration
This page allows you to configure STP system settings. The settings are used by all STP Bridge instances in the Switch or
switch Stack. The Managed Switch support the following Spanning Tree protocols:
‧ Compatiable -- Spanning Tree Protocol (STP):Provides a single path between end stations, avoiding and
eliminating loops.
‧ Normal -- Rapid Spanning Tree Protocol (RSTP) : Detects and uses of network topologies that provide faster
spanning tree convergence, without creating forwarding loops.
‧ Extension – Multiple Spanning Tree Protocol (MSTP) : Defines an extension to RSTP to further develop the
usefulness of virtual LANs (VLANs). This "Per-VLAN" Multiple Spanning Tree Protocol configures a separate
Spanning Tree for each VLAN group and blocks all but one of the possible alternate paths within each Spanning
Tree.
The STP System Configuration screen in Figure 4-7-4 appears.

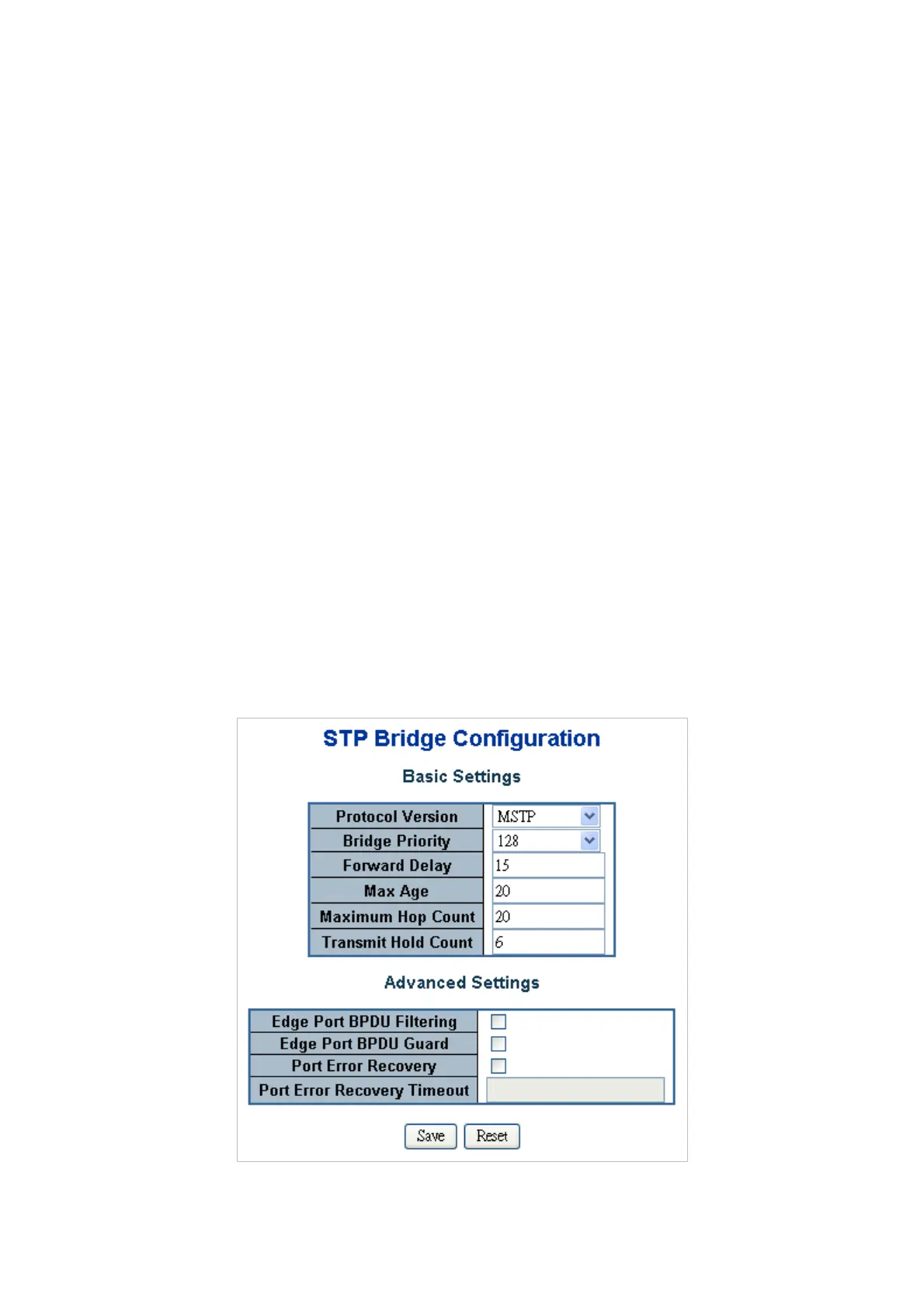

Figure 4-7-4: STP Bridge Configuration Page Screenshot

Planet IGS-10020MT Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	255
Networking standards	IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Throughput	14.8 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Black
Housing material	Aluminum
International Protection (IP) code	IP30
Power consumption (typical)	10 W
Heat dissipation	34 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87.8 mm
Width	56 mm
Height	135 mm
Weight	720 g
