User’s Manual of IGS-10020MT
Buttons
: Click to add new MVR VLAN. Specify the VID and configure the new entry. Click "Save"
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.8.15 MVR Status

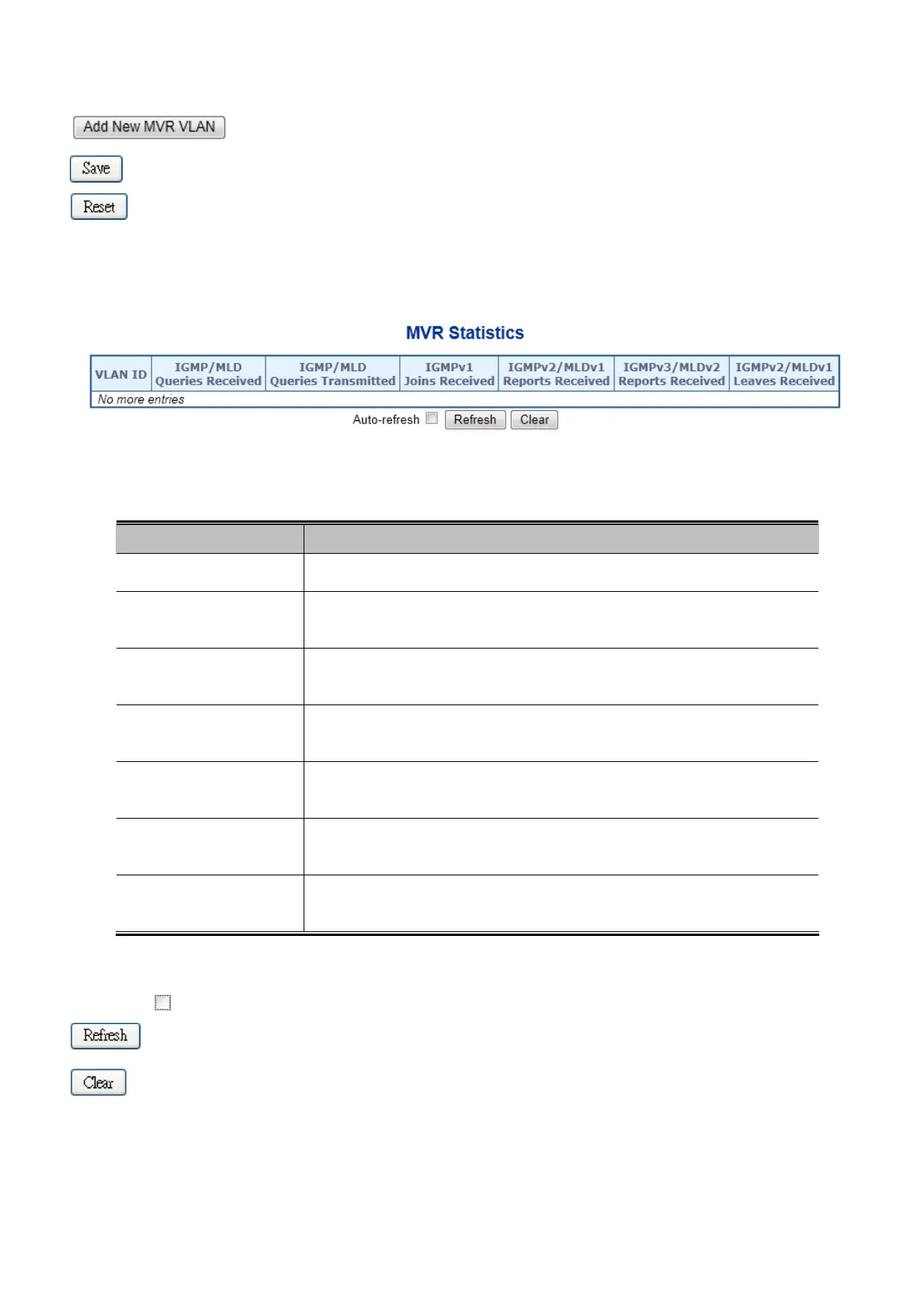

This page provides MVR status. The MVR Status screen in Figure 4-8-18 appears.
Figure 4-8-18: MVR Status Page Screenshot
The page includes the following fields:
Object Description
 VLAN ID
The Multicast VLAN ID.
 IGMP/MLD
Queries Received
The number of Received Queries for IGMP and MLD, respectively.
 IGMP/MLD
Queries Transmitted
The number of Transmitted Queries for IGMP and MLD, respectively.
 IGMPv1 Joins
Received
The number of Received IGMPv1 Joins.
 IGMPv2/MLDv1
Reports Received
The number of Received IGMPv2 Joins and MLDv1 Reports, respectively.
 IGMPv3/MLDv2
Reports Received
The number of Received IGMPv3 Joins and MLDv2 Reports, respectively.
 IGMPv2/MLDv1 Leaves
Received
The number of Received IGMPv2 Leaves and MLDv1 Dones, respectively.
Buttons
Auto-refresh : Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the page immediate
: Clears MVR Statistics counters.
185

Planet IGS-10020MT Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	255
Networking standards	IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Throughput	14.8 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Black
Housing material	Aluminum
International Protection (IP) code	IP30
Power consumption (typical)	10 W
Heat dissipation	34 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87.8 mm
Width	56 mm
Height	135 mm
Weight	720 g
