Planet IGS-10020MT User Manual

User’s Manual of IGS-10020MT
292
4.13 MAC Address Table
Switching of frames is based upon the DMAC address contained in the frame. The Managed Switch builds up a table that maps
MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in the frame ).
This table contains both static and dynamic entries. The static entries are configured by the network administrator if the
administrator wants to do a fixed mapping between the DMAC address and switch ports.
The frames also contain a MAC address (SMAC address ), which shows the MAC address of the equipment sending the frame.
The SMAC address is used by the switch to automatically update the MAC table with these dynamic MAC addresses. Dynamic
entries are removed from the MAC table if no frame with the corresponding SMAC address have been seen after a configurable
age time.
4.13.1 MAC Address Table Configuration
The MAC Address Table is configured on this page. Set timeouts for entries in the dynamic MAC Table and configure the static
MAC table here. The MAC Address Table Configuration screen in Figure 4-13-1 appears.

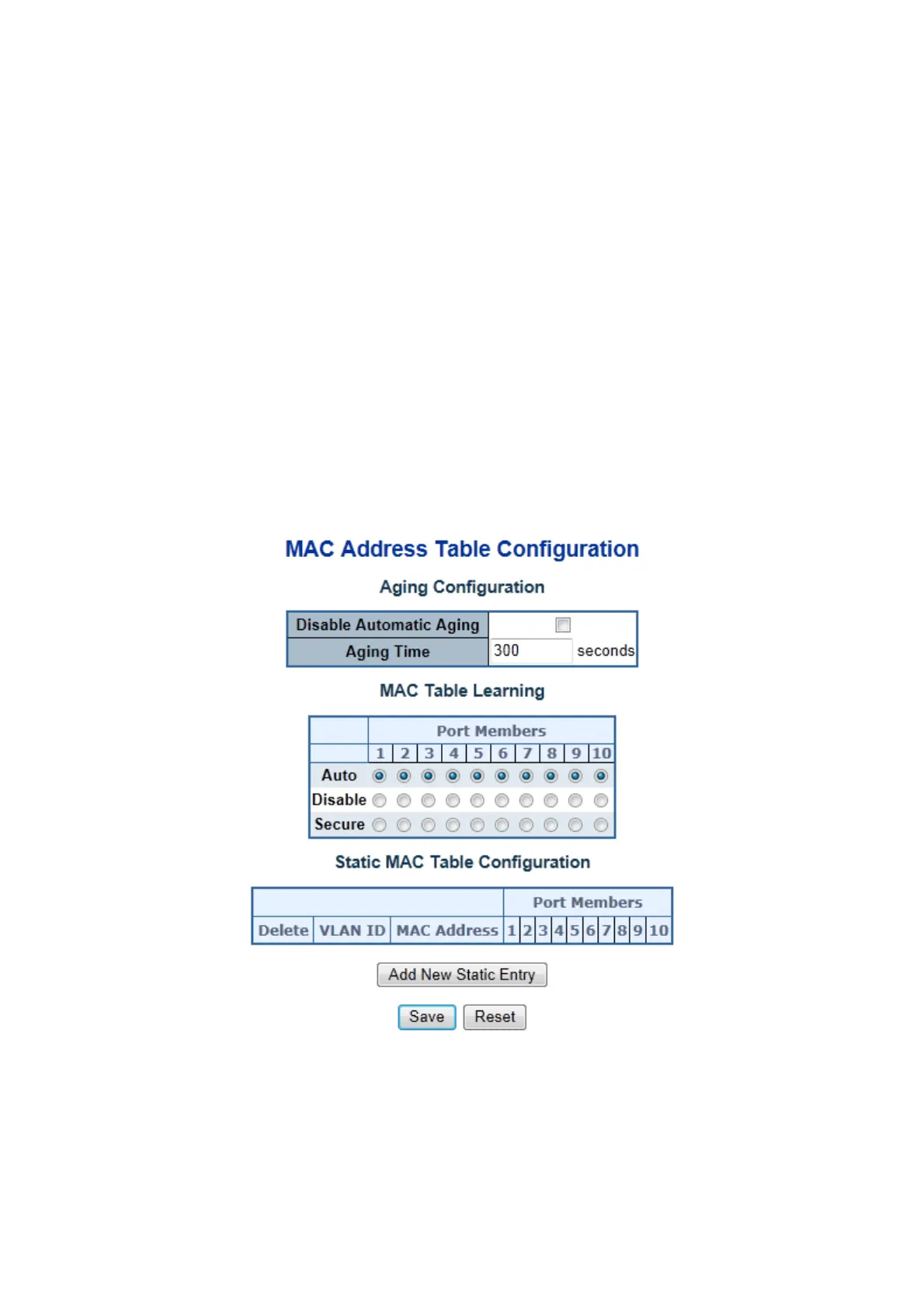

Figure 4-13-1: MAC Address Table Configuration Page Screenshot

Planet IGS-10020MT Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	255
Networking standards	IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Throughput	14.8 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Black
Housing material	Aluminum
International Protection (IP) code	IP30
Power consumption (typical)	10 W
Heat dissipation	34 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87.8 mm
Width	56 mm
Height	135 mm
Weight	720 g
