Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.12.9 DHCP Snooping Statistics
This page provides statistics for DHCP snooping. The statistics only counter packet under DHCP snooping mode is enabled and
relay mode is disabled. And it doesn't count the DHCP packets for system DHCP client. The DHCP Snooping Port Statistics
screen in Figure 4-12-9 appears.

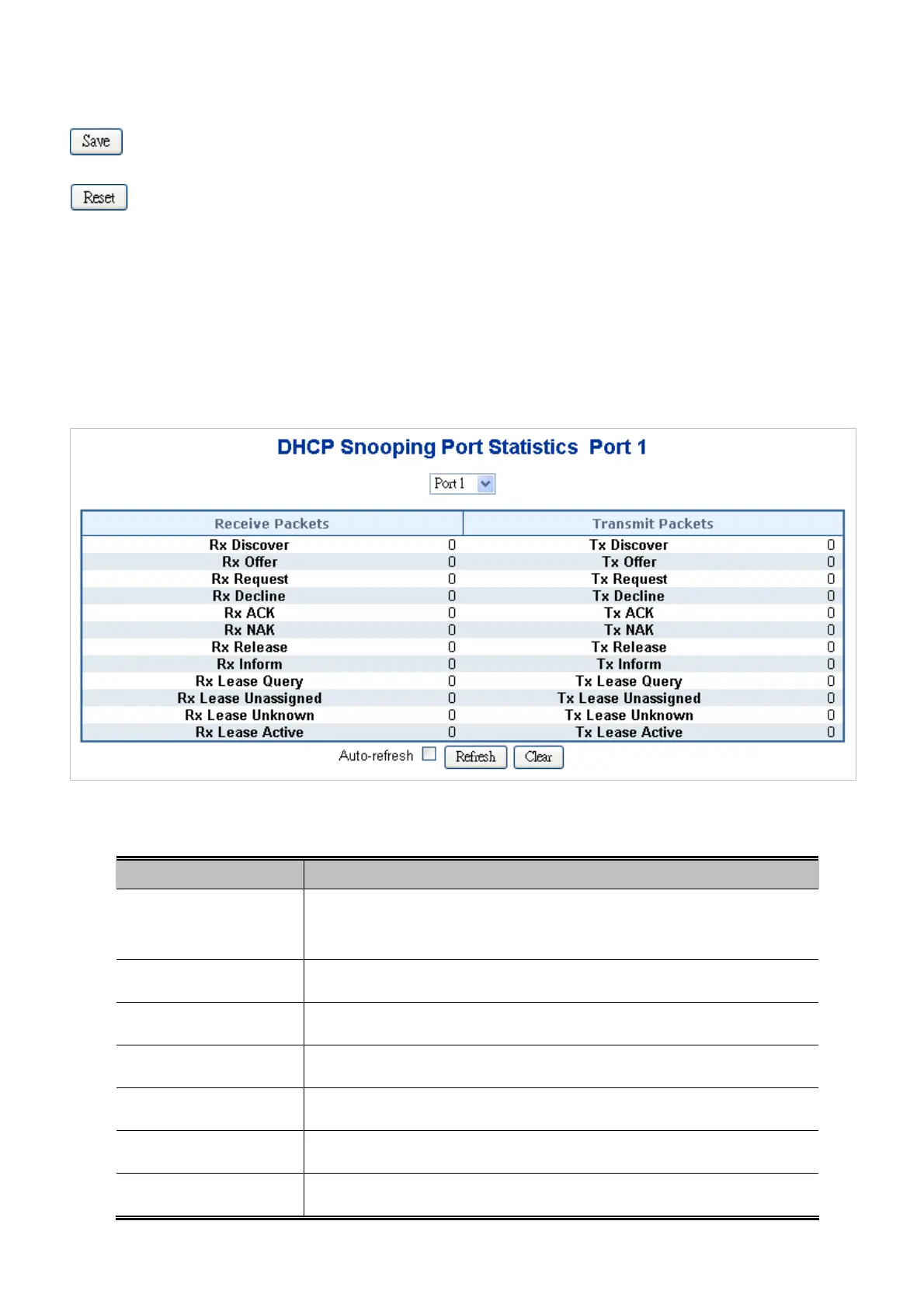

Figure 4-12-9: DHCP Snooping Port Statistics Screen Page Screenshot
The page includes the following fields:
Object Description
 Rx and Tx Discover
The number of discover (option 53 with value 1) packets received and
transmitted.
 Rx and Tx Offer
The number of offer (option 53 with value 2) packets received and transmitted.
 Rx and Tx Request
The number of request (option 53 with value 3) packets received and transmitted.
 Rx and Tx Decline
The number of decline (option 53 with value 4) packets received and transmitted.
 Rx and Tx ACK
The number of ACK (option 53 with value 5) packets received and transmitted.
 Rx and Tx NAK
The number of NAK (option 53 with value 6) packets received and transmitted.
 Rx and Tx Release
The number of release (option 53 with value 7) packets received and transmitted.
286

Planet IGS-10020MT Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	255
Networking standards	IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Throughput	14.8 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Black
Housing material	Aluminum
International Protection (IP) code	IP30
Power consumption (typical)	10 W
Heat dissipation	34 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87.8 mm
Width	56 mm
Height	135 mm
Weight	720 g
