Enabled: Use mapped versions of PCP and DEI for tagged frames.
Click on the mode in order to configure the mode and/or mapping.
For more detail information, please refer to chapter 4.9.3.1.
DSCP Based
Click to Enable DSCP Based QoS Ingress Port Classification.
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.9.3.1 QoS Ingress Port Tag Classification
The clasification modes for tagged frames are configured on this page. The QoS Ingress Port Tag Classification screen in Figure
4-9-3 appears.

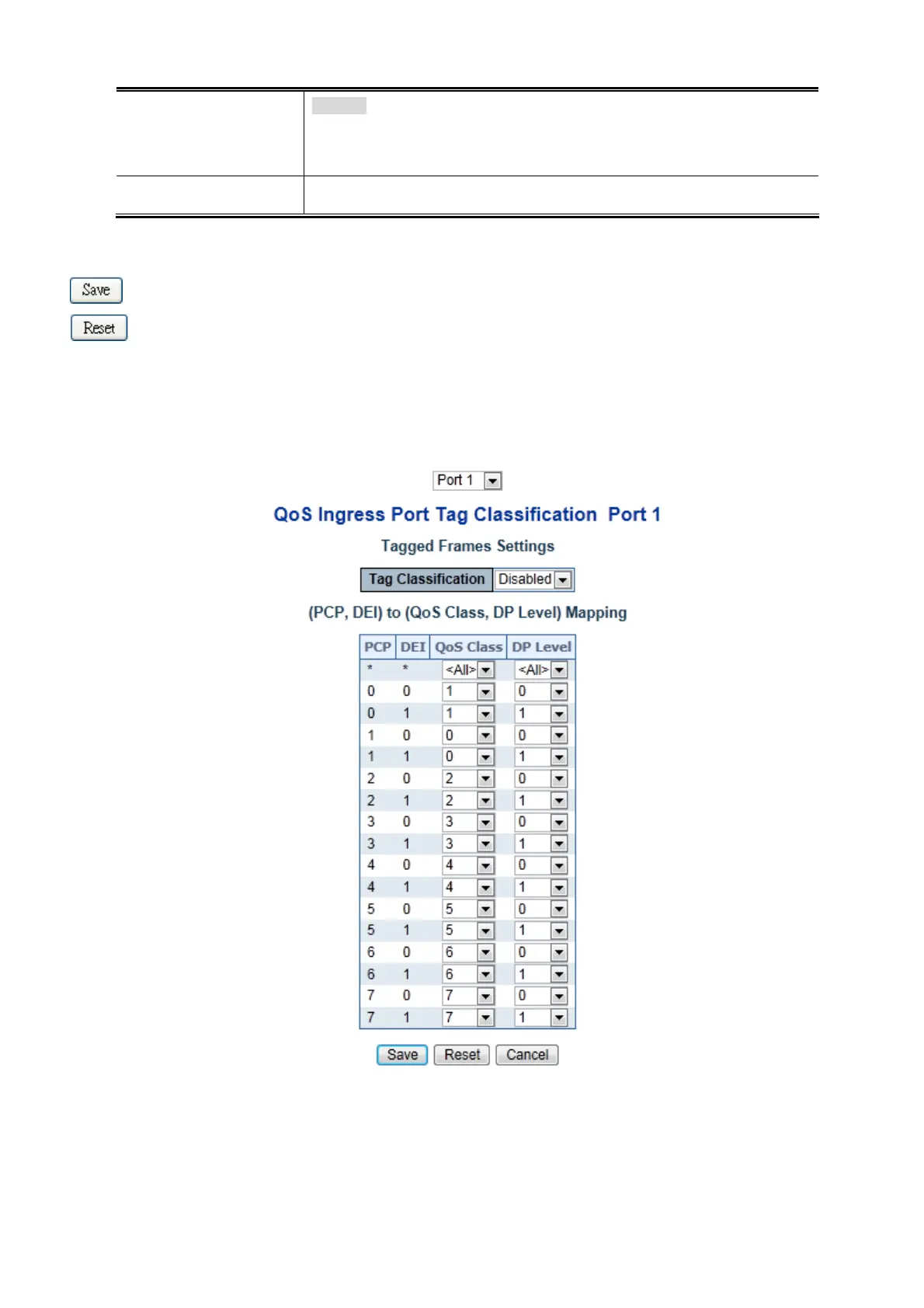

Figure 4-9-3 : QoS Ingress Port Tag Classification Page Screenshot
191
