Planet IGS-10020MT User Manual

User’s Manual of IGS-10020MT
4.17.8 RMON History Detail
This page provides an detail of RMON history entries; screen in Figure 4-17-8 appears.

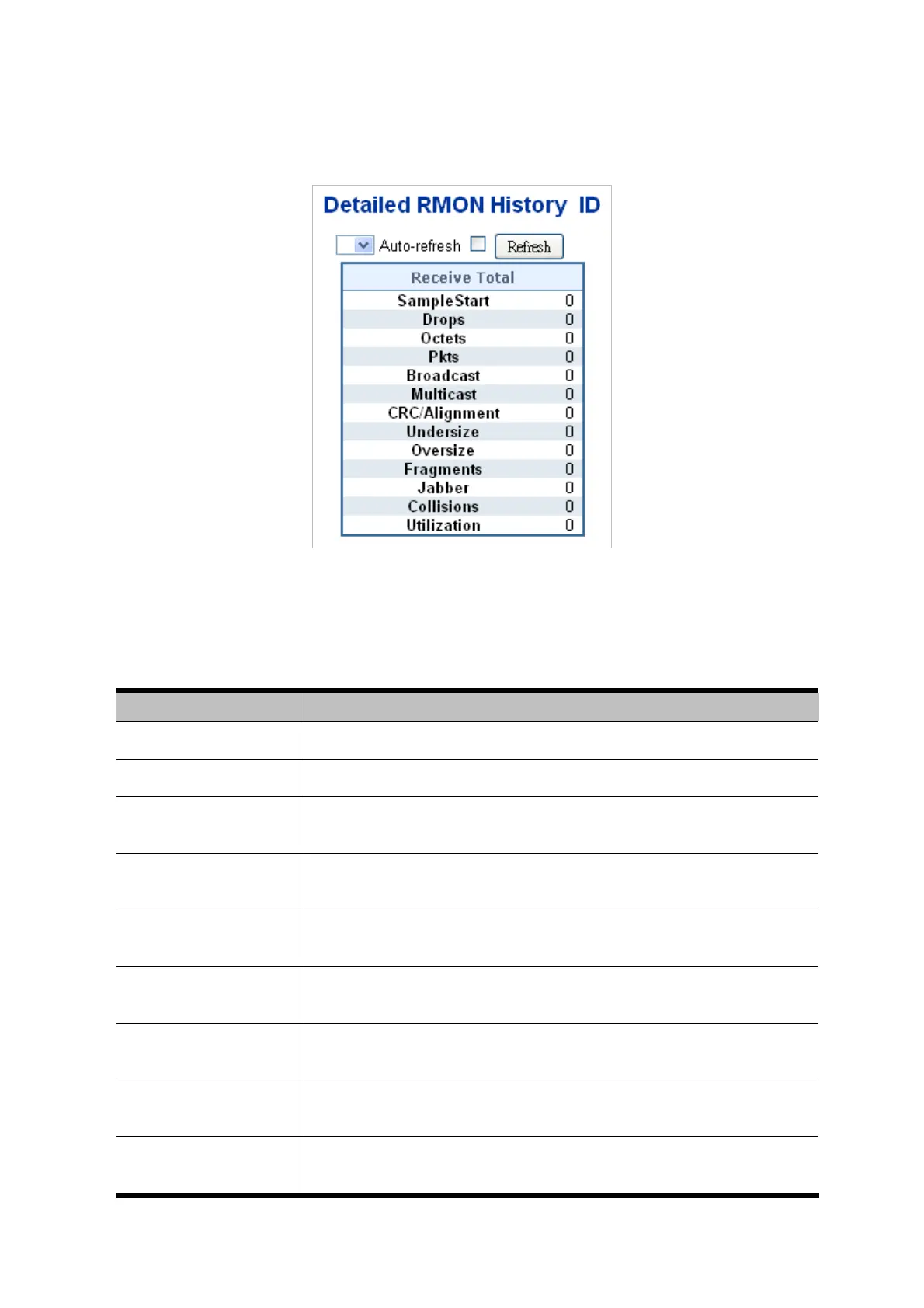

Figure 4-17-8: RMON history Detail page screenshot
The page includes the following fields:
Object Description
 History Index
Indicates the index of History control entry.
 Sample Index
Indicates the index of the data entry associated with the control entry
 Sample Start
The total number of events in which packets were dropped by the probe due to
lack of resources.
 Drops
The total number of events in which packets were dropped by the probe due to
lack of resources.
 Octets
The total number of octets of data (including those in bad packets) received on
the network.
 Pkts
The total number of packets (including bad packets, broadcast packets, and
multicast packets) received.
 Broadcast
The total number of good packets received that were directed to the broadcast
address.
 Multicast
The total number of good packets received that were directed to a multicast
address.
 CRC / Alignment
The total number of packets received that had a length (excluding framing bits,
but including FCS octets) of between 64 and 1518 octets.
332

Planet IGS-10020MT Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	255
Networking standards	IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Throughput	14.8 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Black
Housing material	Aluminum
International Protection (IP) code	IP30
Power consumption (typical)	10 W
Heat dissipation	34 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87.8 mm
Width	56 mm
Height	135 mm
Weight	720 g
