User’s Manual of IGS-10020MT
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.2.9 DHCP Relay Statistics

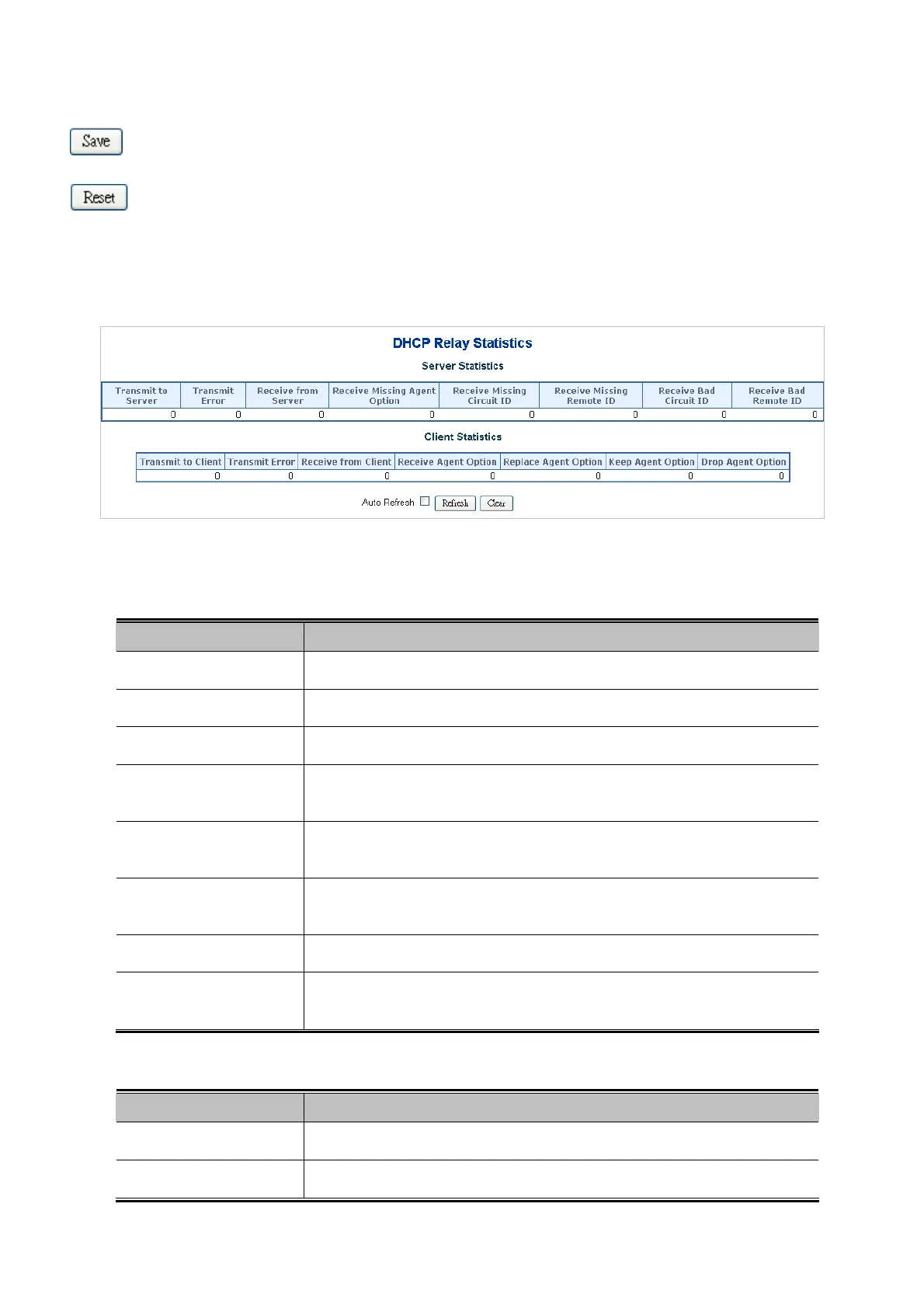

This page provides statistics for DHCP relay. The DHCP Relay Statistics screen in Figure 4-2-12 appears.
Figure 4-2-12: DHCP Relay Statistics Page Screenshot
The page includes the following fields:
Server Statistics
Object Description
Transmit to Server
The number of packets that are relayed from client to server.
Transmit Error
The number of packets that resulted in errors while being sent to clients.
Receive form Server
The number of packets received from server.
Receive Missing Agent
Option
The number of packets received without agent information options.
Receive Missing
Circuit ID
The number of packets received with the Circuit ID option missing.
Receive Missing
Remote ID
The number of packets received with the Remote ID option missing.
Receive Bad Circuit ID
The number of packets whose Circuit ID option did not match known circuit ID.
Receive Bad Remote
ID
The number of packets whose Remote ID option did not match known Remote
ID.
Client Statistics
Object Description
Transmit to Client
The number of relayed packets from server to client.
Transmit Error
The number of packets that resulted in error while being sent to servers.
67
