Planet IGS-10020MT User Manual

User’s Manual of IGS-10020MT
re-enabled for normal STP operation. The condition is also cleared by a system
reboot.
 Port Error Recovery
Timeout
The time that has to pass before a port in the error-disabled state can be
enabled. Valid values are between 30 and 86400 seconds (24 hours).
The Industrial Managed Switch implement the Rapid Spanning Protocol as the default spanning
tree protocol. While select “Compatibles” mode, the system use the RSTP (802.1w) to compatible
and co work with another STP (802.1D)’s BPDU control packets.
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.7.3 Bridge Status
This page provides a status overview for all STP bridge instances.
The displayed table contains a row for each STP bridge instance, where the column displays the following information: The
Bridge Status screen in Figure 4-7-5 appears.

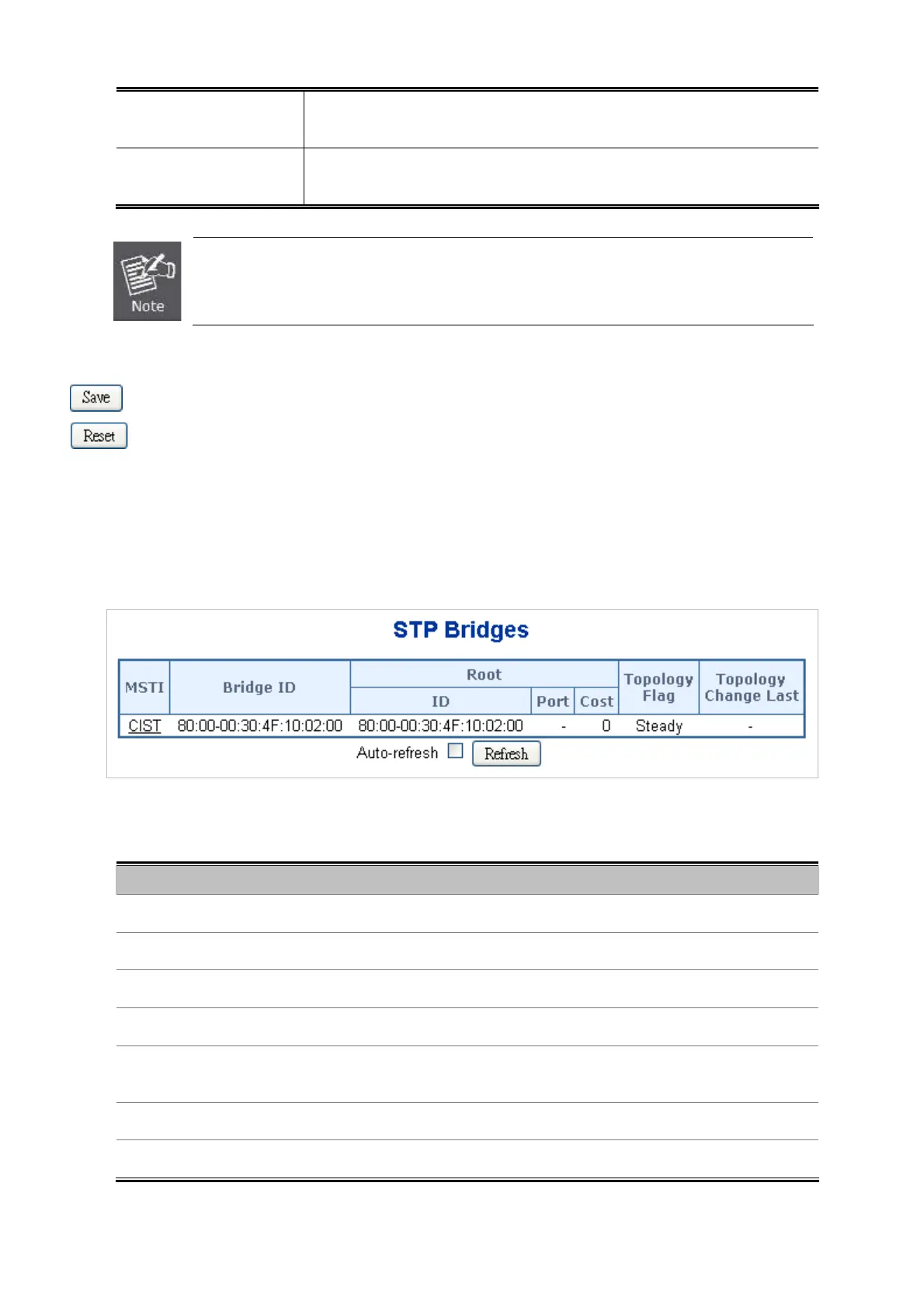

Figure 4-7-5: STP Bridge Status Page Screenshot
The page includes the following fields:
Object Description
 MSTI
The Bridge Instance. This is also a link to the STP Detailed Bridge Status.
 Bridge ID
The Bridge ID of this Bridge instance.
 Root ID
The Bridge ID of the currently elected root bridge.
 Root Port
The switch port currently assigned the root port role.
 Root Cost
Root Path Cost. For the Root Bridge this is zero. For all other Bridges, it is the
sum of the Port Path Costs on the least cost path to the Root Bridge.
 Topology Flag
The current state of the Topology Change Flag for this Bridge instance.
 Topology Change Last
The time since last Topology Change occurred.
154

Planet IGS-10020MT Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	255
Networking standards	IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Throughput	14.8 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Black
Housing material	Aluminum
International Protection (IP) code	IP30
Power consumption (typical)	10 W
Heat dissipation	34 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87.8 mm
Width	56 mm
Height	135 mm
Weight	720 g
