Buttons
Auto-refresh
: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the page immediate.
: Updates the table starting from the first entry in the Alarm Table, i.e. the entry with the lowest ID.
: Updates the table, starting with the entry after the last entry currently displayed.
4.17.4 RMON Event Configuration
Configure RMON Event table on this page. The entry index key is ID; screen in Figure 4-17-4 appears.

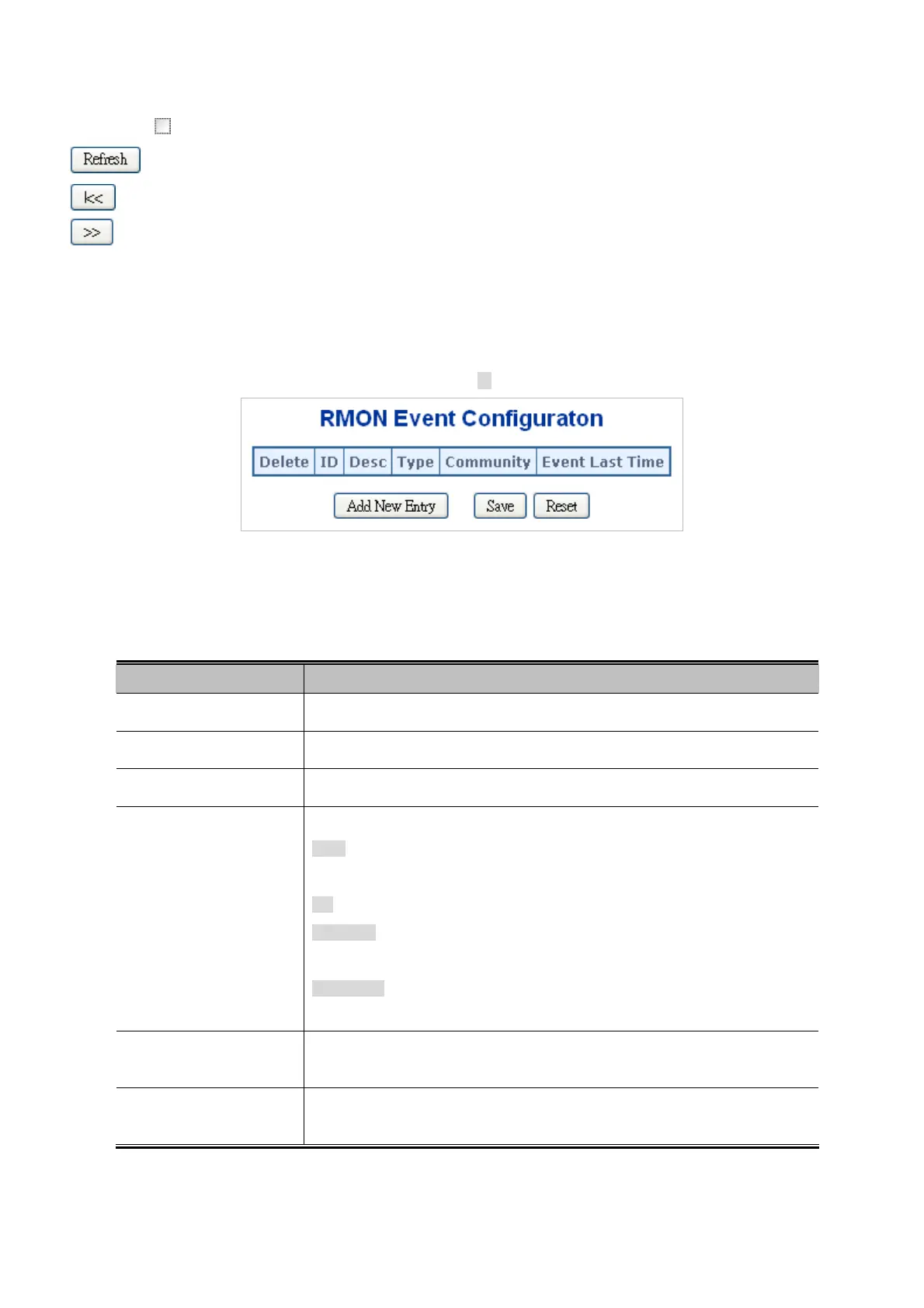

Figure 4-17-4: RMON event configuration page screenshot
The page includes the following fields:
Object Description
 Delete
Check to delete the entry. It will be deleted during the next save.
 ID
Indicates the index of the entry. The range is from 1 to 65535.
 Desc
Indicates this event, the string length is from 0 to 127, default is a null string.
 Type
Indicates the notification of the event, the possible types are:
none: The total number of octets received on the interface, including framing
characters.
log: The number of uni-cast packets delivered to a higher-layer protocol.
snmptrap: The number of broad-cast and multi-cast packets delivered to a
higher-layer protocol.
logandtrap: The number of inbound packets that are discarded even the packets
are normal.
 Community
Specify the community when trap is sent, the string length is from 0 to 127,
default is "public".
 Event Last Time
Indicates the value of sysUpTime at the time this event entry last generated an
event.

Planet IGS-10020MT Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	255
Networking standards	IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Throughput	14.8 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Black
Housing material	Aluminum
International Protection (IP) code	IP30
Power consumption (typical)	10 W
Heat dissipation	34 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87.8 mm
Width	56 mm
Height	135 mm
Weight	720 g
