Planet IGS-10020MT User Manual

User’s Manual of IGS-10020MT
4.4.3 Port Thermal Protection
This page allows the user to inspect and configure the current setting for controlling thermal protection. Thermal protection is
used to protect the chip from getting overheated. When the temperature exceeds the configured thermal protection temperature,
ports will be turned off in order to decrease the power consumption. It is possible to arrange the ports with different priorities.
Each priority can be given a temperature at which the corresponding ports shall be turned off.
The Port Thermal Protection screen in Figure 4-4-3 appears.

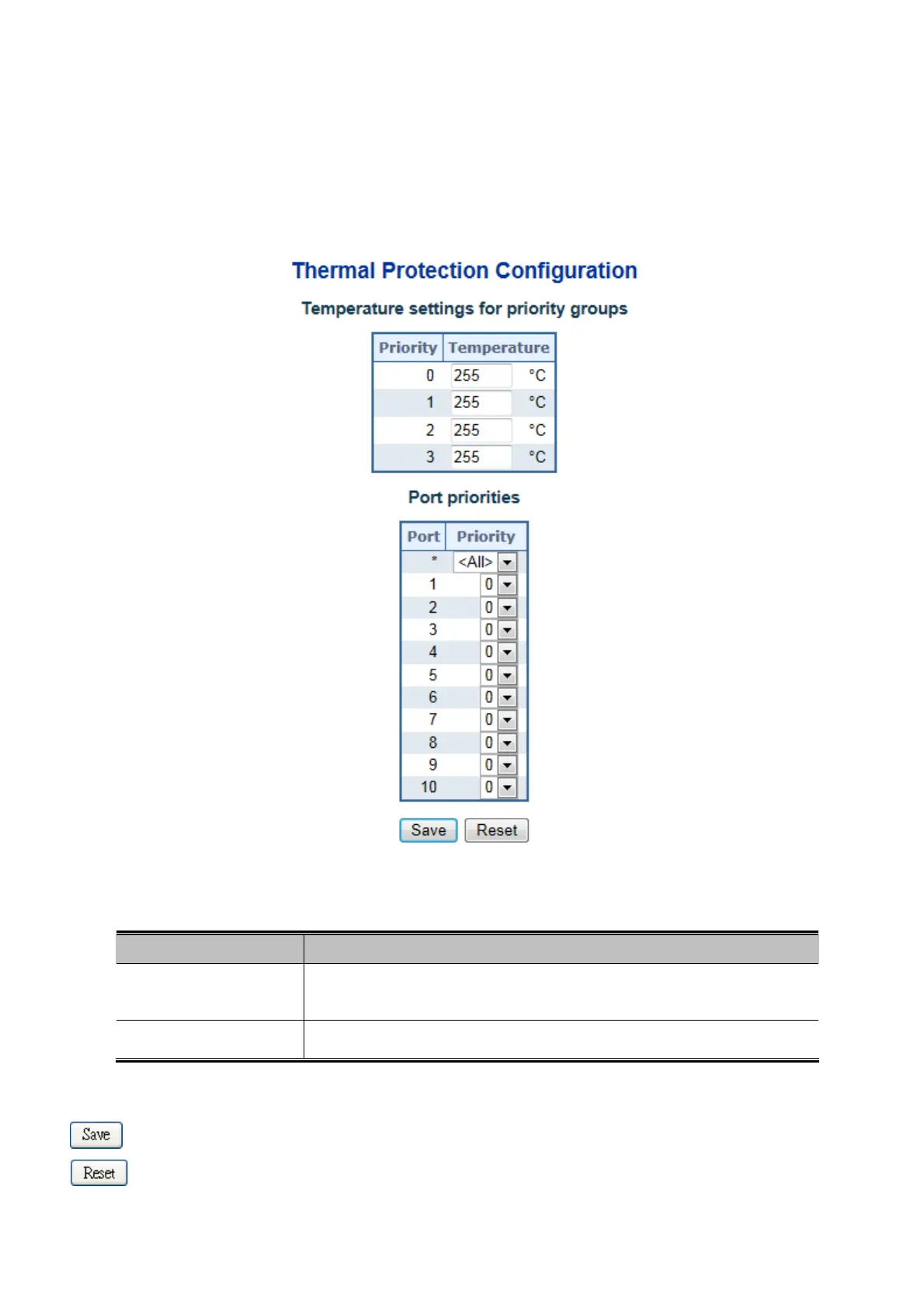

Figure 4-4-3: Port Thermal Protection Page Screenshot
The page includes the following fields:
Object Description
 Temperature settings
for priority groups
The temperature at which the ports with the corresponding priority will be turned
off. Temperatures between 0 and 255 C are supported.
 Port priorities
The priority the port belongs to. 4 priorities are supported
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
101

Planet IGS-10020MT Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	255
Networking standards	IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Throughput	14.8 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Black
Housing material	Aluminum
International Protection (IP) code	IP30
Power consumption (typical)	10 W
Heat dissipation	34 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87.8 mm
Width	56 mm
Height	135 mm
Weight	720 g
