Planet IGS-10020MT User Manual

User’s Manual of IGS-10020MT
290
4.12.12 ARP Inspection
ARP Inspection is a secure feature. Several types of attacks can be launched against a host or devices connected to Layer 2
networks by "poisoning" the ARP caches. This feature is used to block such attacks. Only valid ARP requests and responses
can go through DUT. This page provides ARP Inspection related configuration. The ARP Inspection Configuration screen in
Figure 4-12-12 appears.

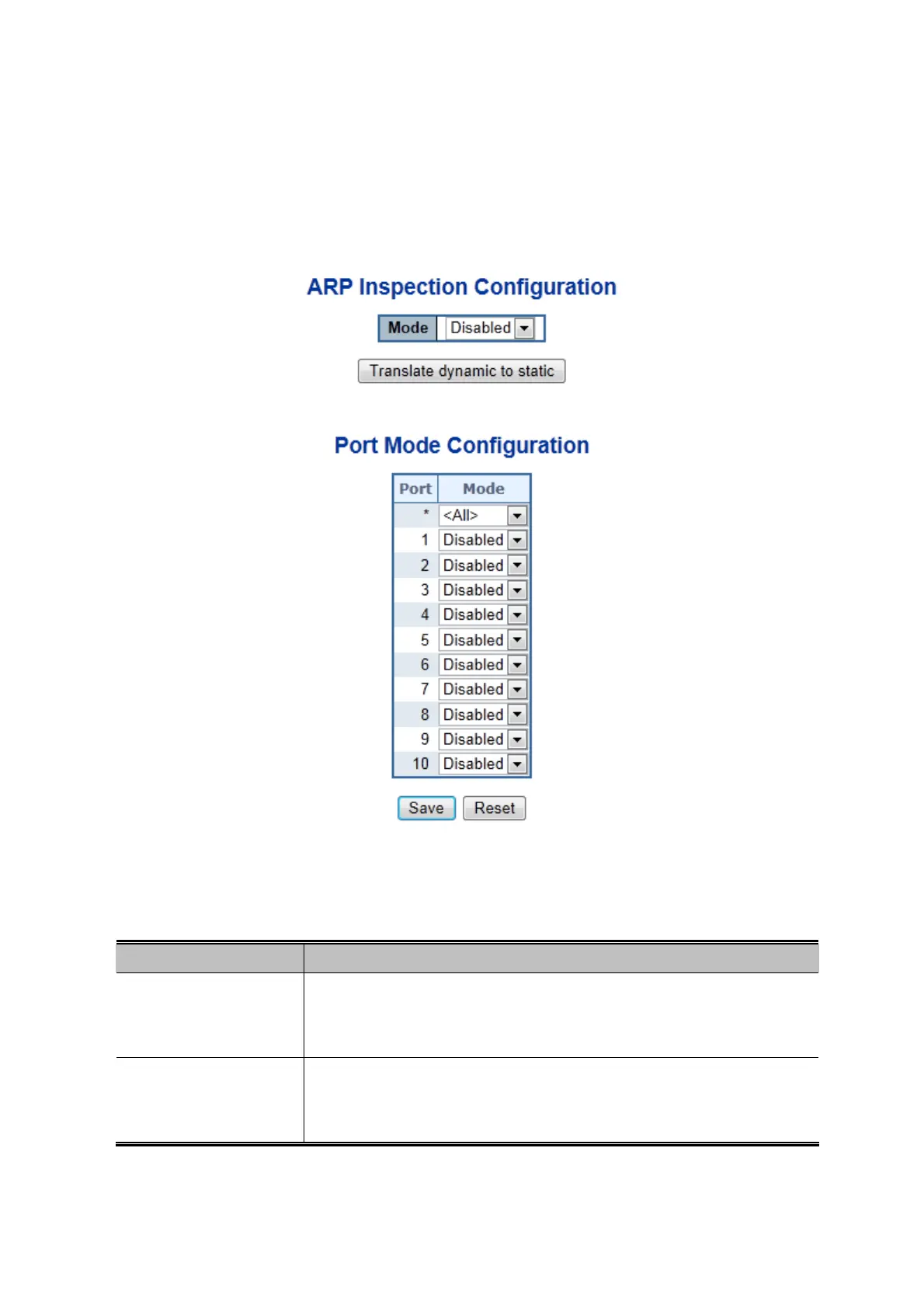

Figure 4-12-12: ARP Inspection Configuration Screen Page Screenshot
The page includes the following fields:
Object Description
 Mode of ARP
Inspection
Configuration
Enable the Global ARP Inspection or disable the Global ARP Inspection.
 Port Mode
Configuration
Specify ARP Inspection is enabled on which ports. Only when both Global Mode
and Port Mode on a given port are enabled, ARP Inspection is enabled on this
given port. All means all ports will have one specific setting.

Planet IGS-10020MT Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	255
Networking standards	IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Throughput	14.8 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Black
Housing material	Aluminum
International Protection (IP) code	IP30
Power consumption (typical)	10 W
Heat dissipation	34 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87.8 mm
Width	56 mm
Height	135 mm
Weight	720 g
