User’s Manual of IGS-10020MT
4.8.7 IGMPv3 Information
Entries in the IGMP SFM Information Table are shown on this page. The IGMP SFM (Souce-Filtered Multicast) Information
Table also contains the SSM (Source-Specific Multicast) information. This table is sorted first by VLAN ID, then by group, and
then by Port No. Diffrent source addresses belong to the same group are treated as single entry.
Each page shows up to 99 entries from the IGMP SFM Information table, default being 20, selected through the "entries per
page" input field. When first visited, the web page will show the first 20 entries from the beginning of the IGMP SFM Information
Table.
The "Start from VLAN", and "Group" input fields allow the user to select the starting point in the IGMP SFM Information Table.
The IGMPv3 Information screen in Figure 4-8-10 appears.

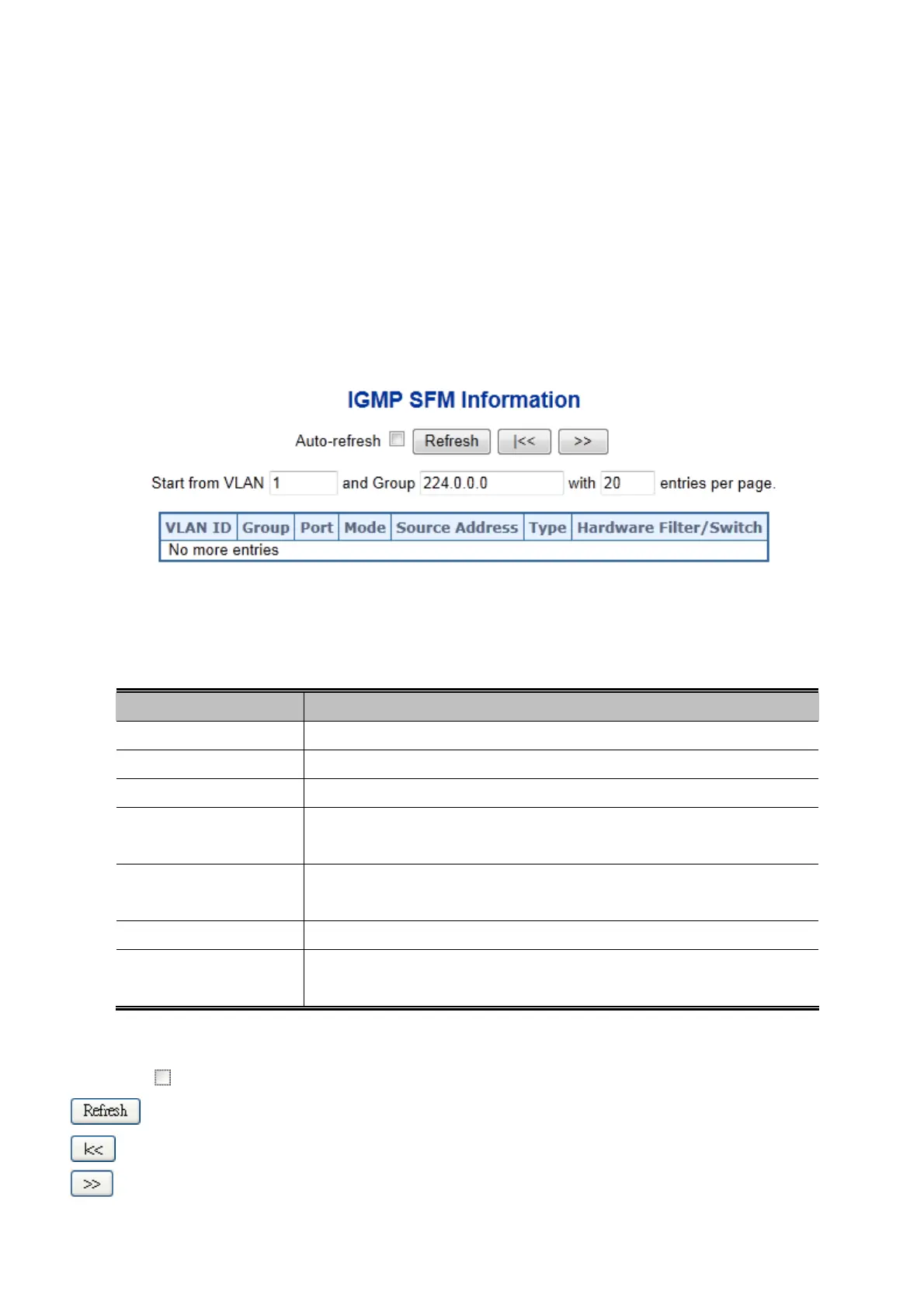

Figure 4-8-10: IGMP SFM Information Page Screenshot
The page includes the following fields:
Object Description
 VLAN ID
VLAN ID of the group.
 Group
Group address of the group displayed.
 Port
Switch port number.
 Mode
Indicates the filtering mode maintained per (VLAN ID, port number, Group
Address) basis. It can be either Include or Exclude.
 Source Address
IP Address of the source. Currently, system limits the total number of IP source
addresses for filtering to be 128.
 Type
Indicates the Type. It can be either Allow or Deny.
 Hardware Filter /
Switch
Indicates whether data plane destined to the specific group address from the
source IPv4 address could be handled by chip or not.
Buttons
Auto-refresh
: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the page immediate
: Updates the table, starting with the first entry in the IGMP Group Table.
: Updates the table, starting with the entry after the last entry currently displayed.
175

Planet IGS-10020MT Specifications

General

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	255
Networking standards	IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Throughput	14.8 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Black
Housing material	Aluminum
International Protection (IP) code	IP30
Power consumption (typical)	10 W
Heat dissipation	34 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87.8 mm
Width	56 mm
Height	135 mm
Weight	720 g
