User’s Manual of IGS-10020MT
4.2.20 Image Select
This function provides dual image deposit in the Industrial Managed Switch, user can select any one of the image as Active
image of Industrial Managed Switch. The Image Select screen in Figure 4-2-27 appears.

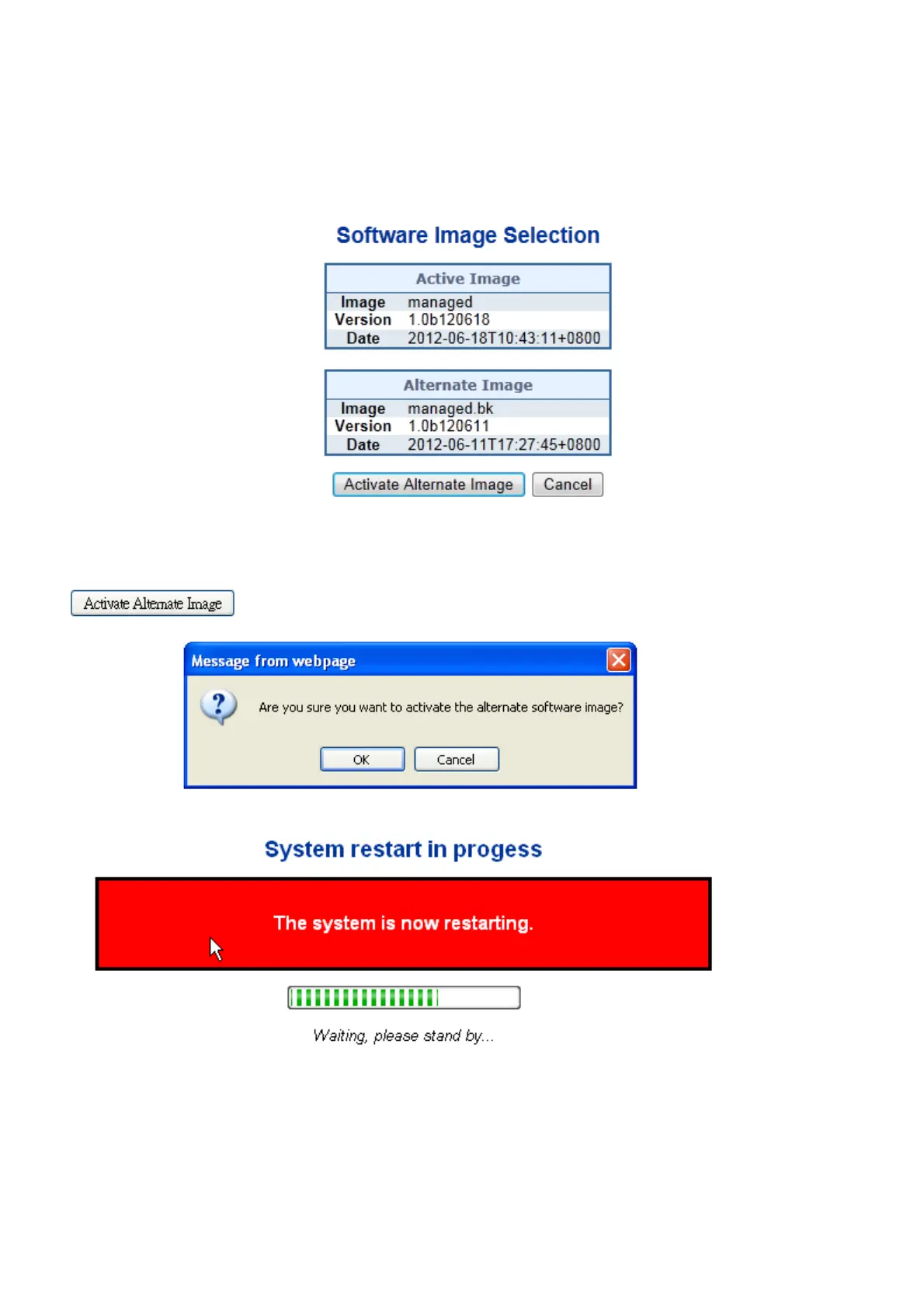

Figure 4-2-27: Image Select Page Screenshot
Button
: Click to choose Alternate Image as Activate Image.
Figure 4-2-28: Image Select Page Screenshot
Figure 4-2-29: Image Select Page Screenshot
82
